Ignition switch

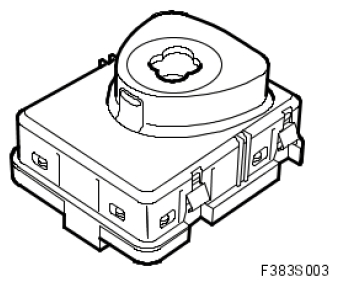

Fig 1: Identifying Ignition Switch

G05056850

Courtesy of SAAB-SCANIA OF AMERICA, INC.

IGNITION SWITCH SPECIFICATIONS

Communication cable	Pin 2
+X	Pin 3
Ground	Pin 4
+30	Pin 5
+B	Pin 6
+15	Pin 12
Key positions	LOCK, OFF, ON and ST
Illumination	LEDs
Key inhibitor	Solenoid
