To remove
- Remove the battery cover .

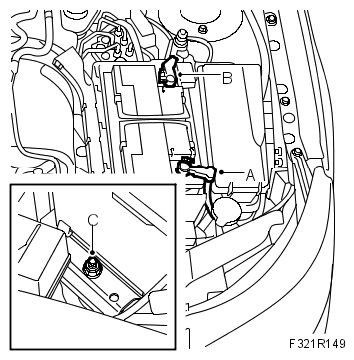

- Detach the battery cables:
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Detach the negative battery cable (A).
- Detach the positive battery cable (B)
- Detach the battery drain hose.
- Undo the screw (C) to the battery's lock lug and lift out the battery.
