Crimp J232, adapter harness, Simtec: Notes

Location:  Approx. 60 mm from branching of reversing light switch towards the battery

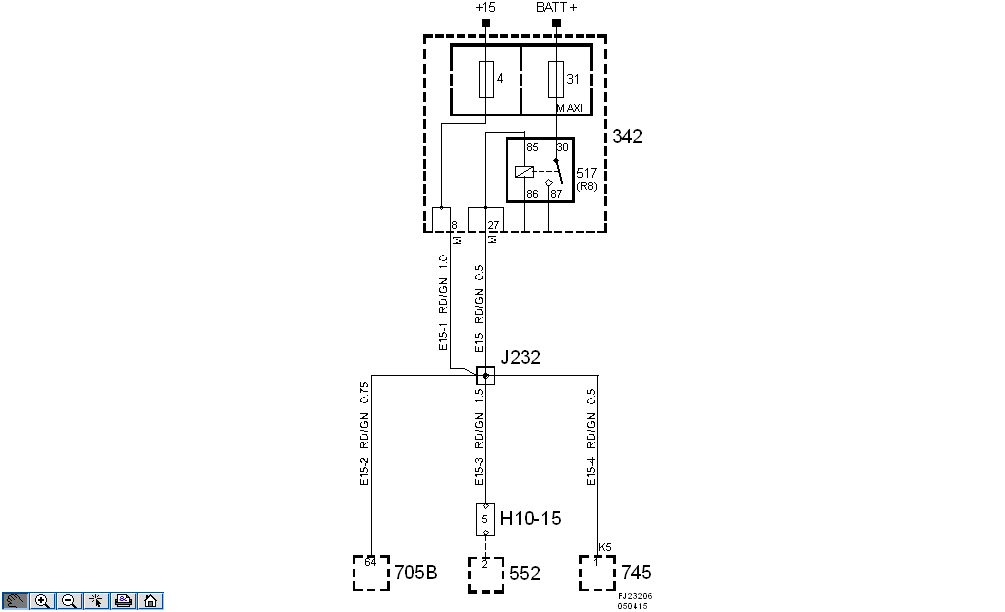

Fig 1: Crimp J232, Adapter Harness, Simtec - Circuit Diagram
G05171459Courtesy of SAAB-SCANIA OF AMERICA, INC.
