Crimp J42, engine harness, Trionic: Notes

Location:  Approx. 20 mm from branching point crankshaft sensor towards the engine oil pressure switch

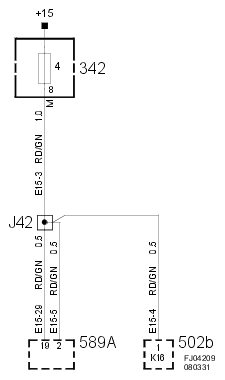

Fig 1: Crimp J42, Engine Harness, Trionic - Circuit Diagram
G06230668Courtesy of SAAB-SCANIA OF AMERICA, INC.


Location:  Approx. 20 mm from branching point crankshaft sensor towards the engine oil pressure switch

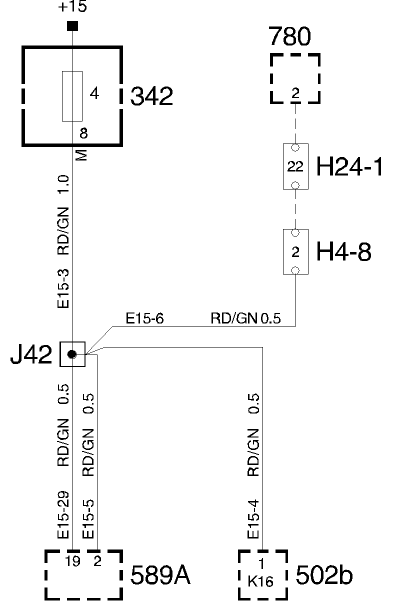

Fig 1: Crimp J42, Engine Harness, Trionic - Circuit Diagram
G06230741Courtesy of SAAB-SCANIA OF AMERICA, INC.
