Connected components

CONNECTED COMPONENTS REFERENCE CHART

	Via Crimp connection J108, main wiring harness
102	Relay, fuel pump
702FR	Control module, front door, RH
702RR	Rear right door module (RRDM)
	Via Crimp J135, inner door wiring harness in the front right door, which is connected to crimp J108
209FR	Lamp, front right door courtesy lighting
388	Switch, tailgate/boot lid
514FR	Switch, simultaneous central locking, front right door
	Via Crimp connection J117, main wiring harness which is connected with crimp J108, cable screening for I-bus connection

Crimp J108

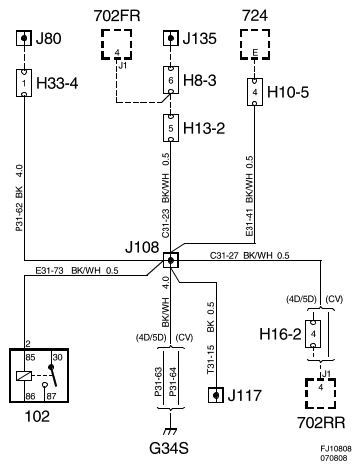

Fig 1: Grounding Point G34S - Circuit Diagram

G06230747

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Connection to G43

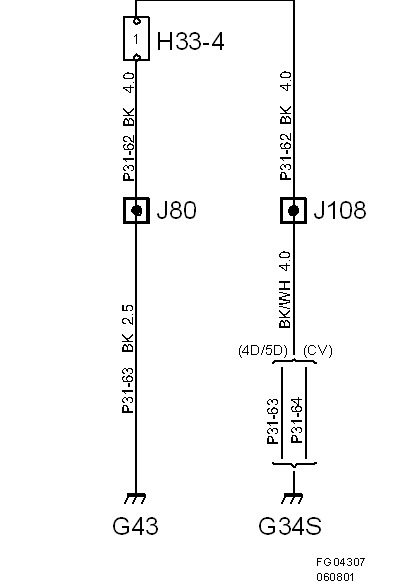

Fig 2: Grounding Point G34S - Circuit Diagram

G06230748

Courtesy of SAAB-SCANIA OF AMERICA, INC.
