Home >> Saab >> 2011 >> 9-3X Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Component Locator >> Ignition Switch Module (20)

Ignition Switch Module (20)

Location: in the floor console between the front seats

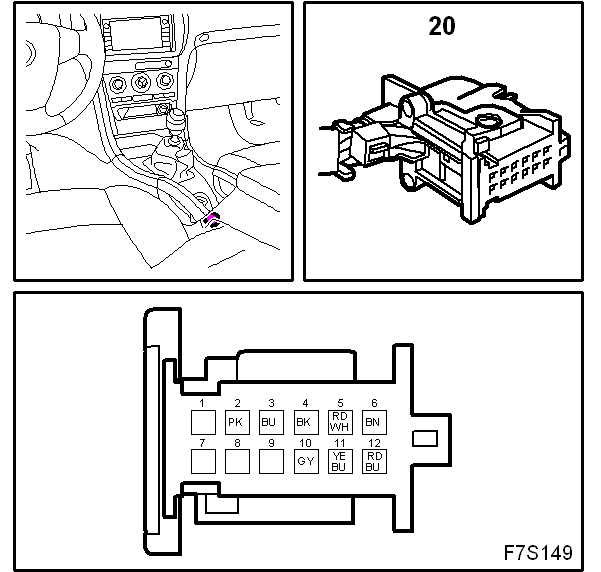

Fig 1: Identifying Ignition Switch Module (20)

G05174118

Courtesy of SAAB-SCANIA OF AMERICA, INC.
