Home >> Saab >> 2011 >> 9-3X Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Specifications >> Fuel pressure regulator

Fuel pressure regulator

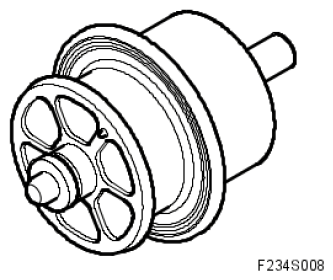

Fig 1: Identifying Fuel Pressure Regulator
G05170506Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE SPECIFICATION CHART

Fuel pressure bar 3, 0 ± 0, 1
Pressure, air side Connected to intake manifold
