Turn Signal Multifunction Switch Replacement

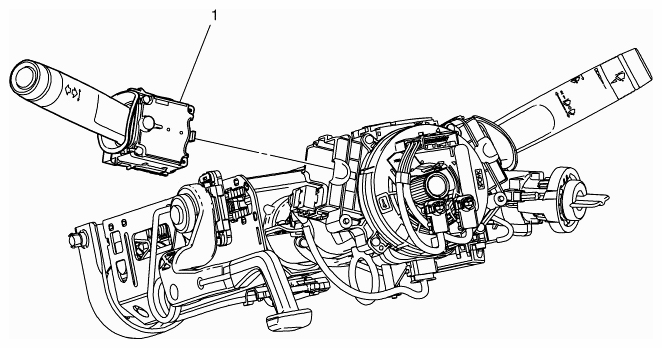

Fig 1: Identifying Turn Signal Multifunction Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures
Remove the steering column shroud. Refer to STEERING COLUMN SHROUD REPLACEMENT .
1	Turn Signal Multifunction Switch Procedure  Disconnect any electrical connectors. Depress the locking tabs to remove the turn signal multifunction switch.
