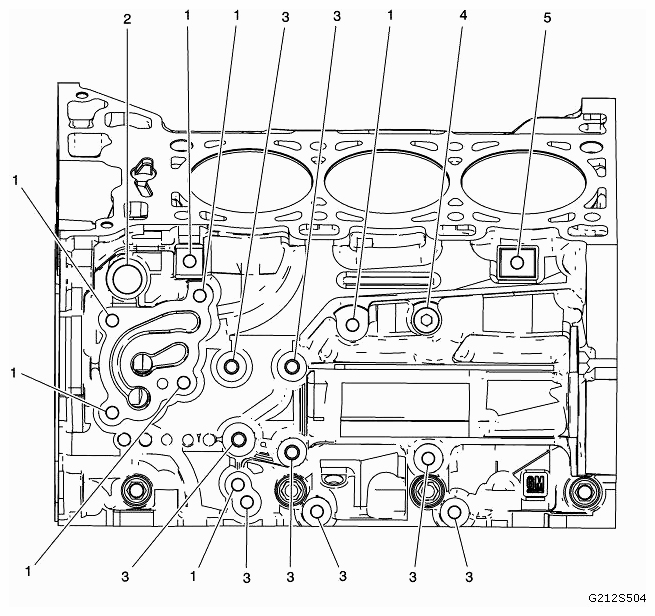

Engine Block Left Side
THREAD REPAIR SPECIFICATIONS
| Hole Location | Thread Size | Drill | Counterbore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Maximum) | |
|---|---|---|---|---|---|---|---|---|---|
| J 42385- | MM | (IN) | |||||||
| 1 | M8 x 1.25 | 206 | 207 | N/A | 208 | 209 | 210 | 28.5 | 1.1220 |
| 2 | M20 x 1.5 | 715 | 716 | N/A | 717 | 718 | 719 | 30.0 | 1.1810 |
| 3 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 215 | 33.5 | 1.3190 |
| 4 | M14 x 1.5 | 409 | 410 | N/A | 411 | 412 | 735 | THRU | |
| 5 | M8 x 1.25 | 206 | 207 | N/A | 208 | 209 | 415 | 16.5 | 0.6496 |
