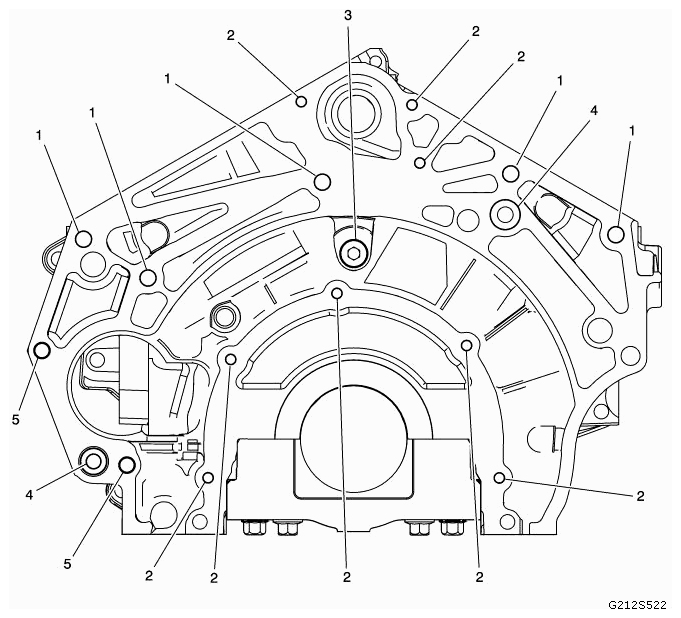

Engine Block Rear
THREAD REPAIR SPECIFICATIONS
| Hole Location | Thread Size | Drill | Counterbore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Maximum) | |
|---|---|---|---|---|---|---|---|---|---|
| J 42385- | MM | (IN) | |||||||
| 1 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 420 | 33.5 | 1.3190 |
| 2 | M6 x 1.0 | 201 | 202 | N/A | 203 | 204 | 205 | 22.5 | 0.8858 |
| 3 | M14 x 1.5 | 409 | 410 | N/A | 411 | 412 | 735 | THRU | |
| 4 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 216 | 39.5 | 1.5551 |
| 5 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 420 | THRU | |
