Engine Front Cover (LF1)

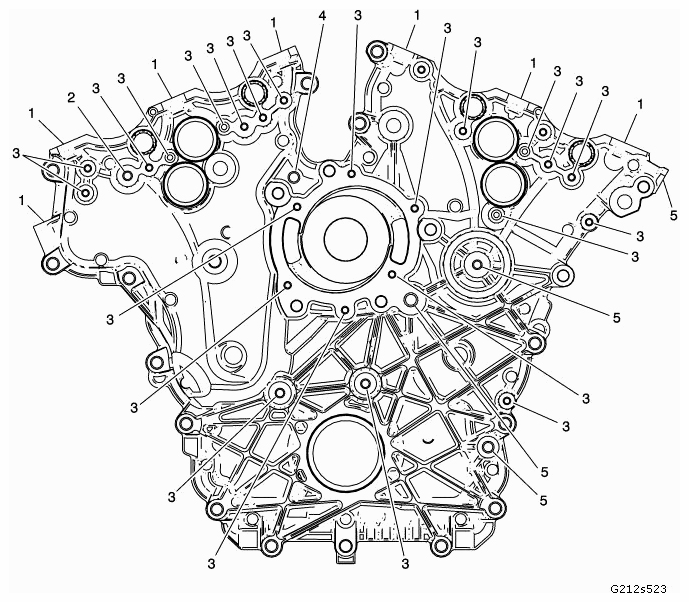

Fig 1: Engine Front Cover Components Location (LF1)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

THREAD REPAIR SPECIFICATIONS

Hole Location	Thread Size	Drill	Counterbore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Maximum)
		J 42385-						MM	(IN)
1	M6 x 1.0	201	202	N/A	203	204	205	THRU
2	M8 x 1.25	206	207	N/A	208	209	210	28.5	1.1220
3	M6 x 1.0	201	202	N/A	203	204	205	21.5	0.8465
4	M10 x 1.5	211	212	N/A	213	214	215	THRU
5	M10 x 1.5	211	212	N/A	213	214	420	32.5	1.2795
