Engine Traceability Label

The engine traceability label is located in two places on the engine and consists of the broadcast code, bar code and sequence number.

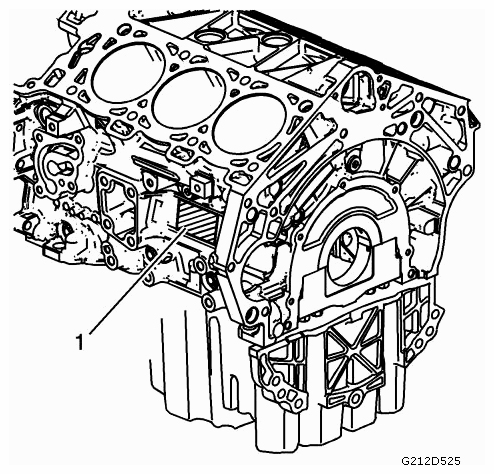

Fig 1: Identifying Engine Traceability Label (Left Rear Engine Block)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

One engine traceability label (1) is located on the left rear side of the engine block.

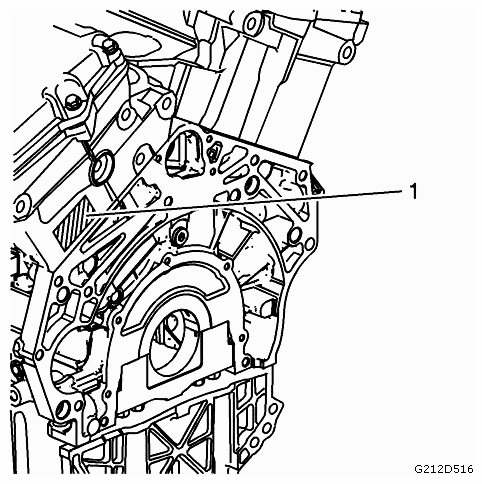

Fig 2: Identifying Engine Traceability Label (Left Cylinder Head Rear)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Another engine traceability label (1) is located on the rear of the left cylinder head.
