Power Mirror Switch

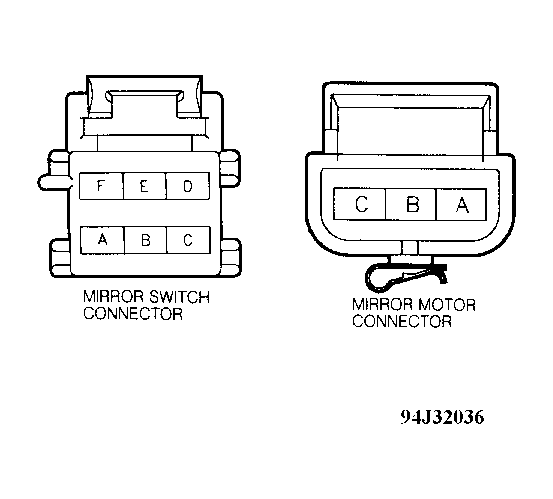

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Disconnect power mirror switch. Using an ohmmeter, check for resistance between appropriate power mirror switch terminals. See Figure . See POWER MIRROR SWITCH RESISTANCE TEST table. If switch fails any test, replace switch.
POWER MIRROR SWITCH RESISTANCE TEST (1)
| Switch Position | Terminal/Resistance | Terminal/Resistance | ||
|---|---|---|---|---|
| Up | "D"/0 | "B"/Infinity | ||
| Down | "D"/Infinity | "B"/0 | ||
| Left | "B"/Infinity | "F"/0 | ||
| Right | "B"/0 | "F"/Infinity | ||
|
||||
