Pin Voltage Charts

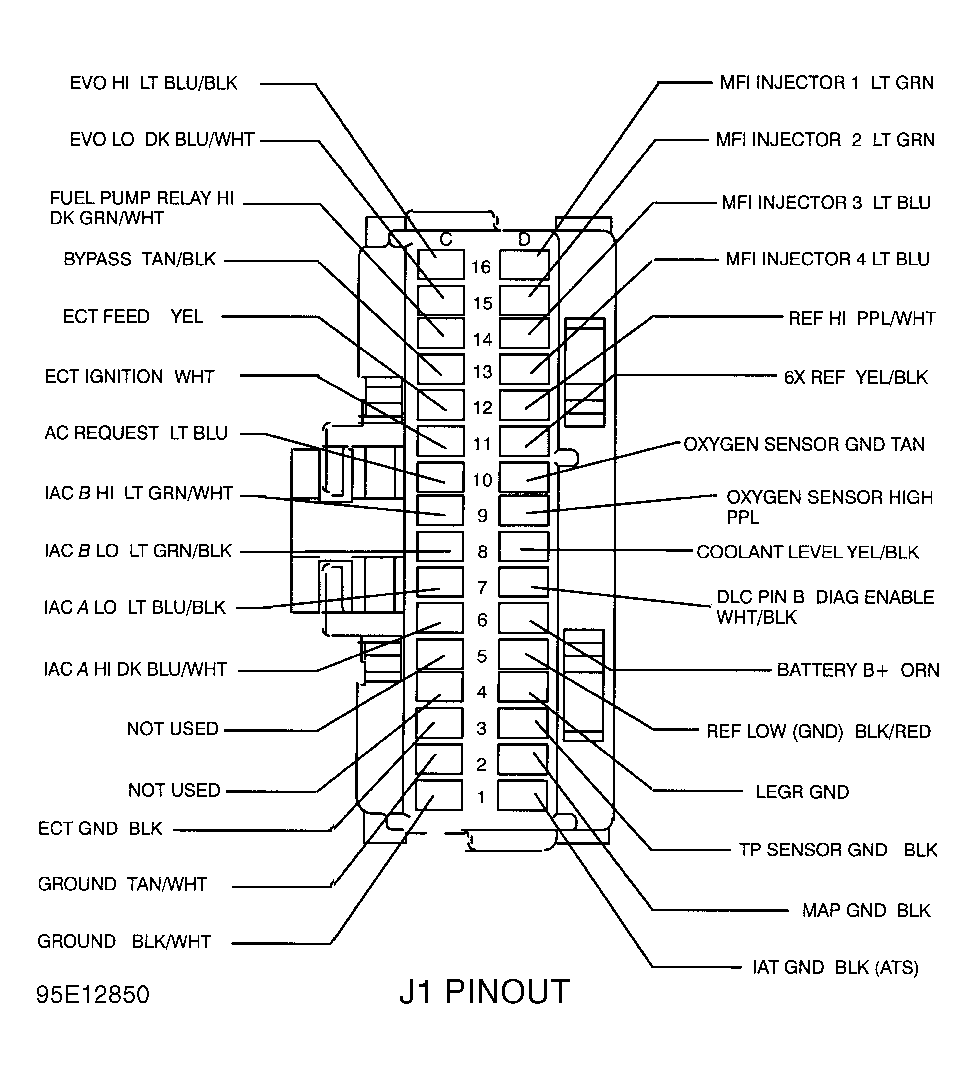

Fig 1: PCM Connector Terminal "J1" ID (1.9L VINS 7 & 8 - Saturn)
G95E12850Courtesy of GENERAL MOTORS CORP.

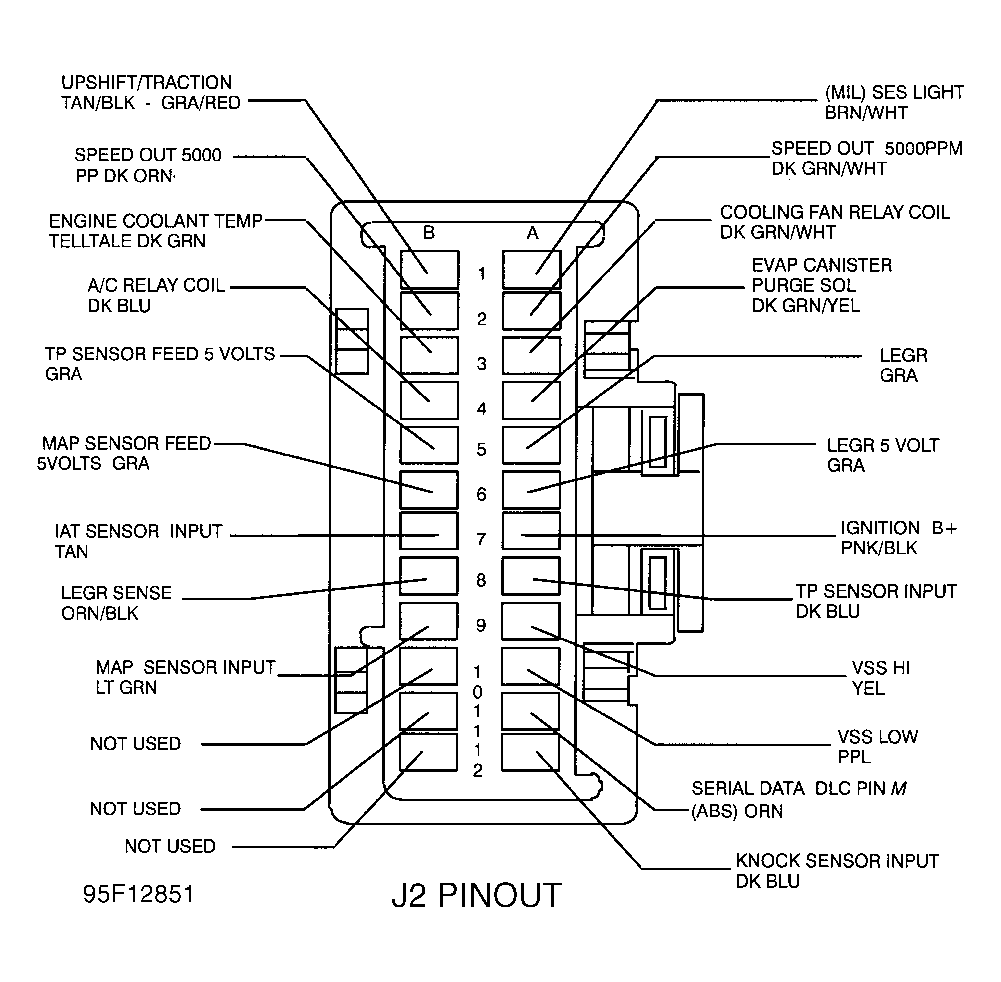

Fig 2: PCM Connector Terminal "J2" ID (1.9L VINS 7 & 8 - Saturn)
G95F12851Courtesy of GENERAL MOTORS CORP.
