Removal & Installation: Starters: Installation

To install, reverse removal procedure. Tighten starter-to-engine block bolts to 27 ft. lbs. (37 N.m).

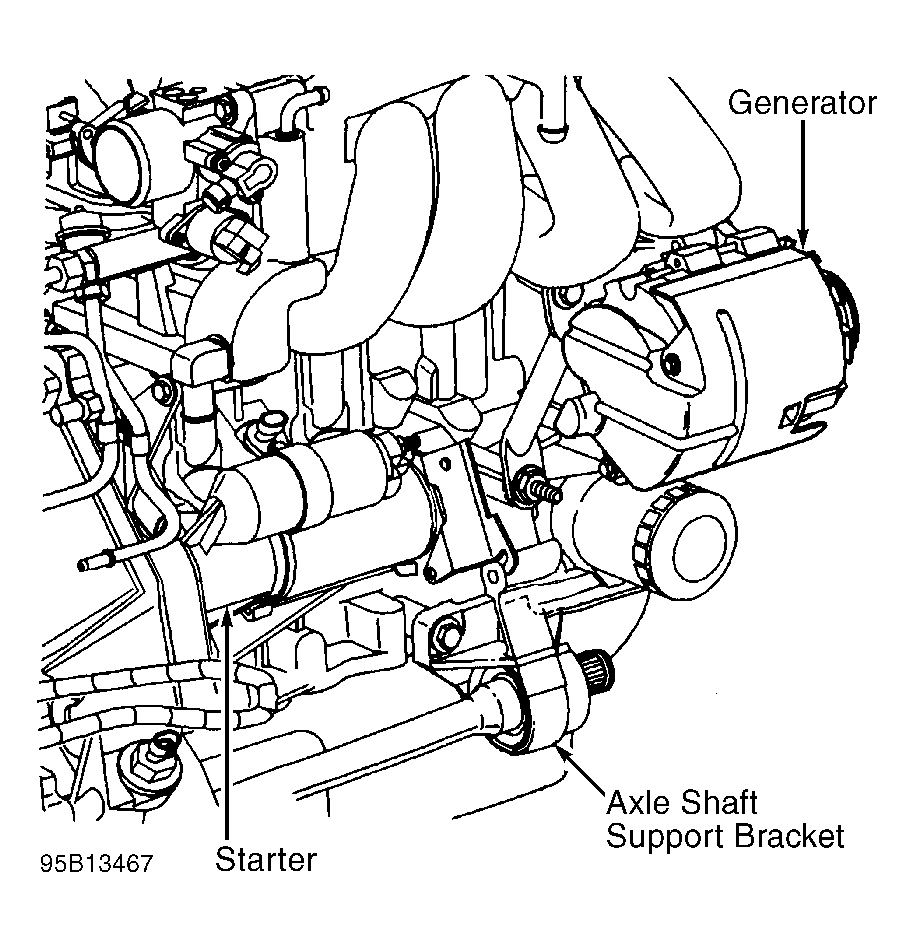

Fig 1: Removing Starter
G95B13467Courtesy of GENERAL MOTORS CORP.
