Left Instrument Panel Fuse Block

Left instrument panel fuse block is located under driver's side of instrument panel, on kick panel. See Fig 1 .

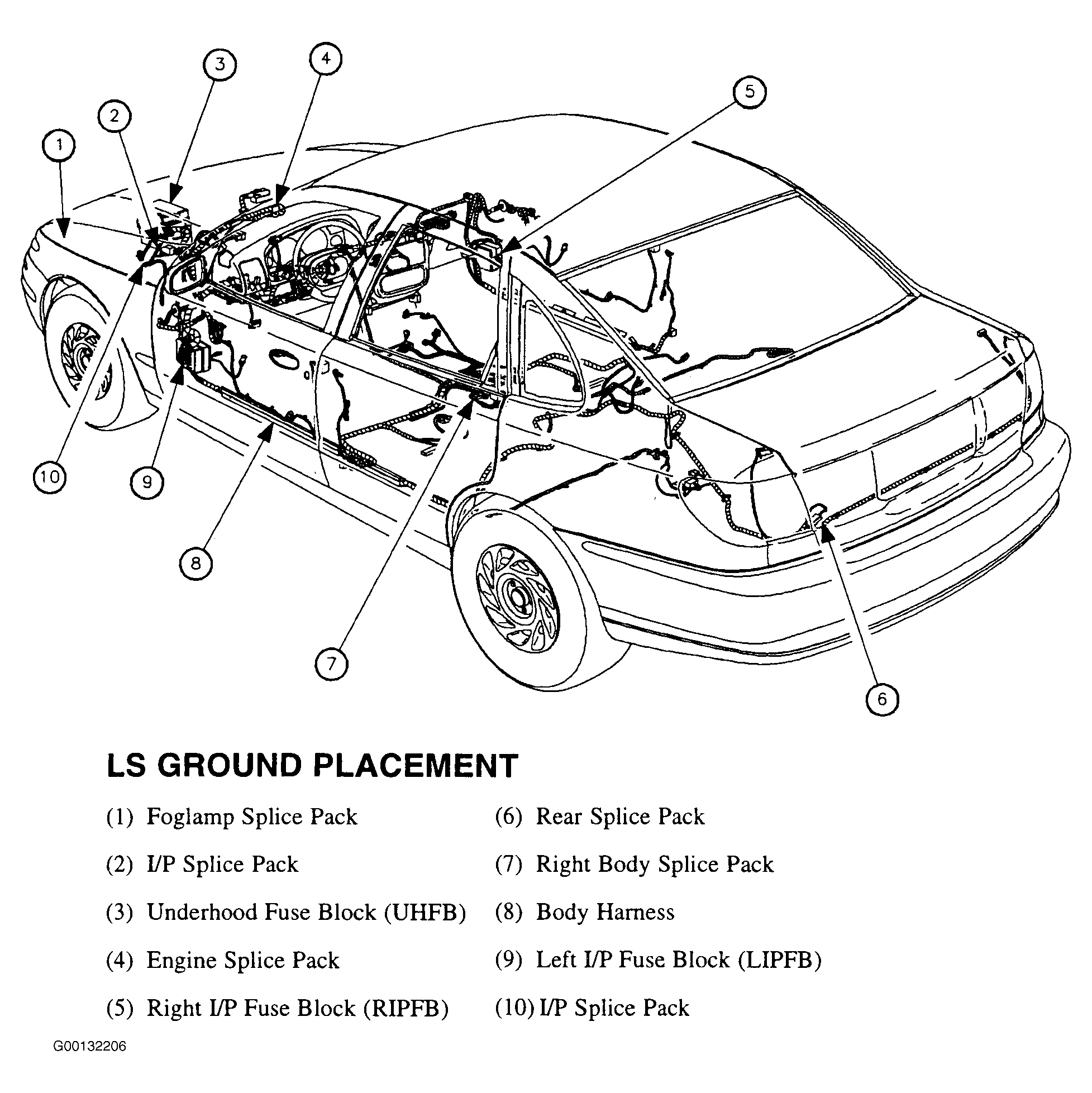

Fig 1: Locating Fuse Blocks
G00132206Courtesy of GENERAL MOTORS CORP.

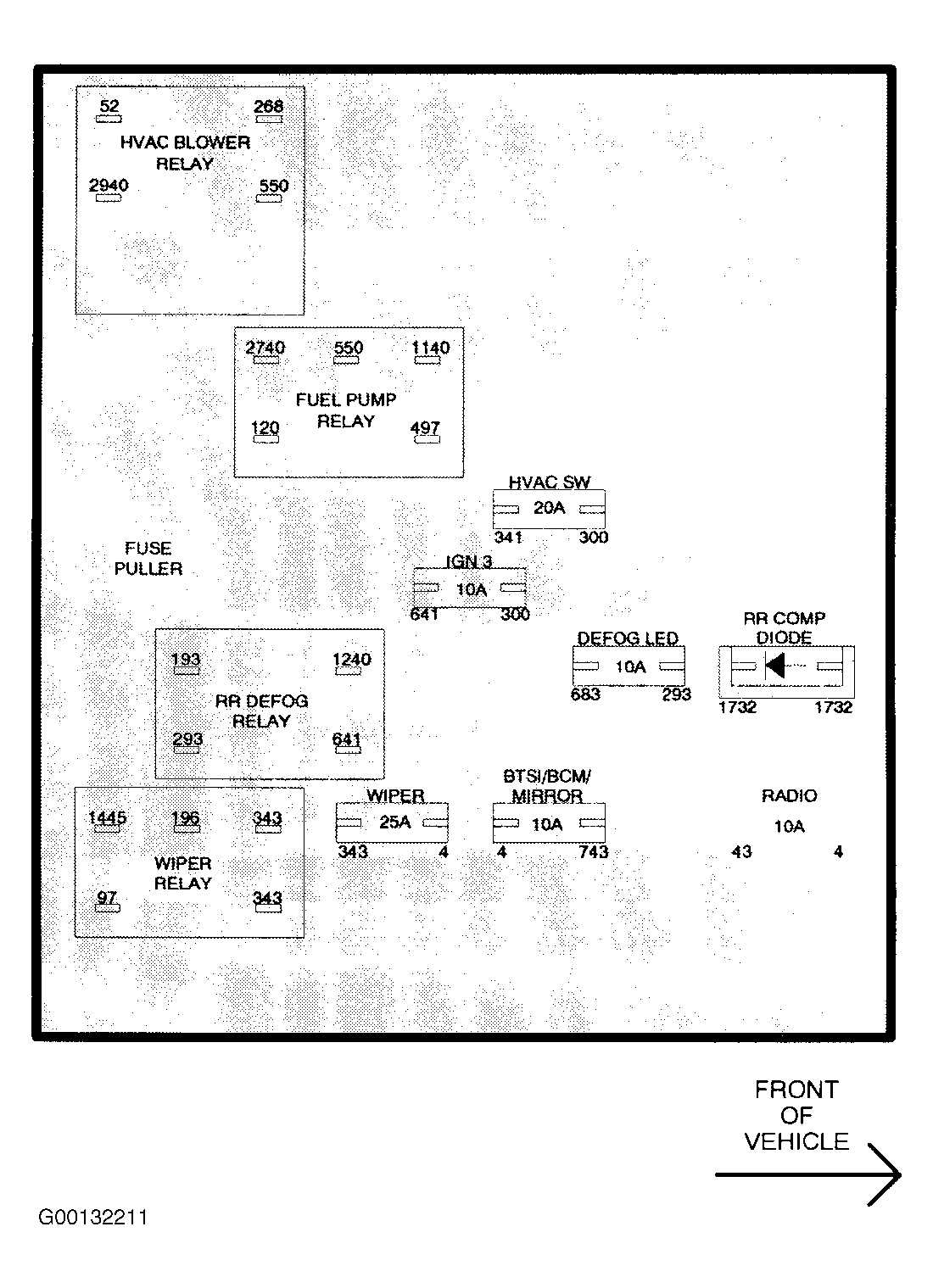

Fig 2: Identifying Left Instrument Panel Fuse Block Components
G00132211Courtesy of GENERAL MOTORS CORP.

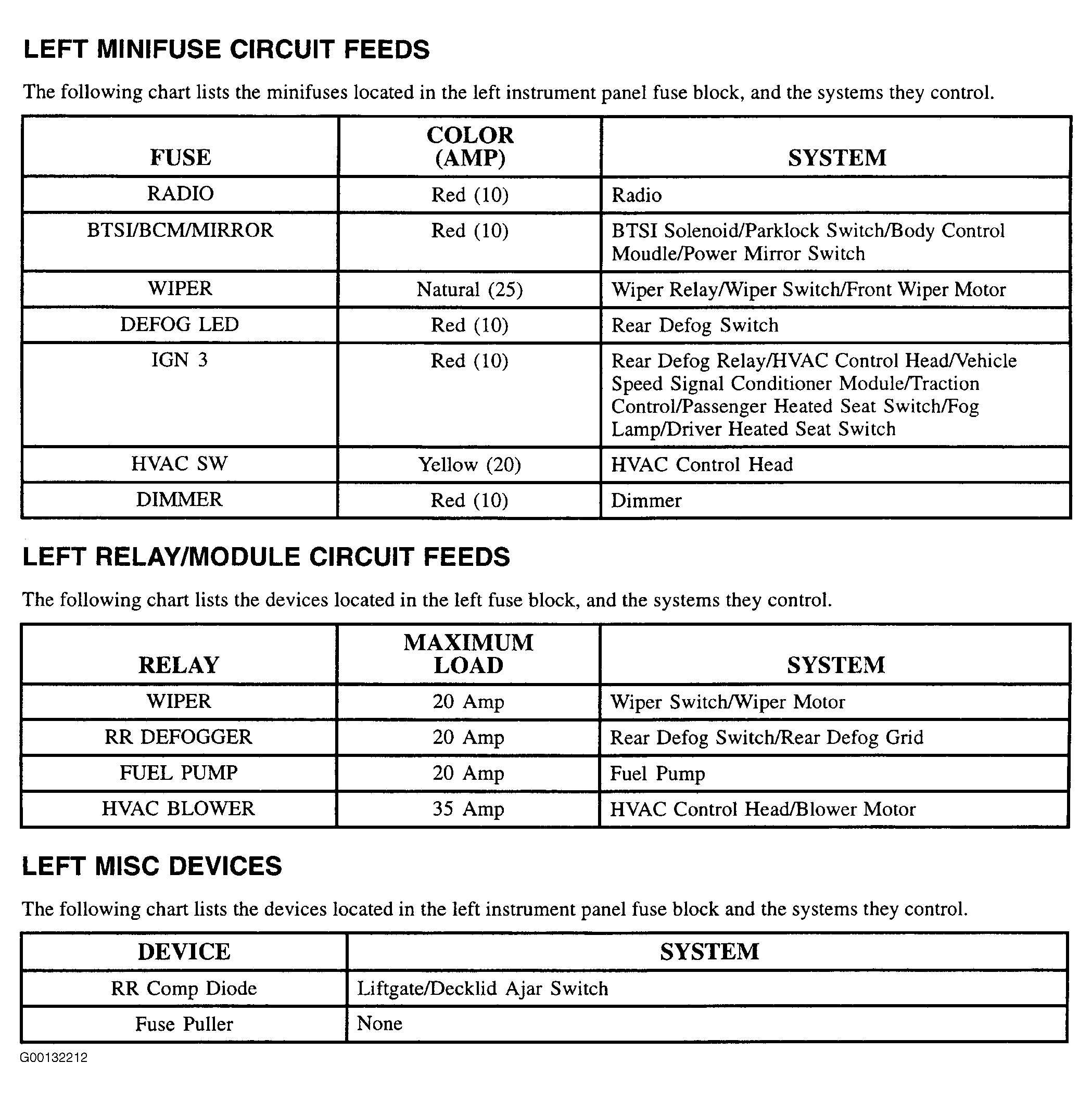

Fig 3: Left Instrument Panel Fuse Block Legend
G00132212Courtesy of GENERAL MOTORS CORP.
