Component Locations
NOTE:

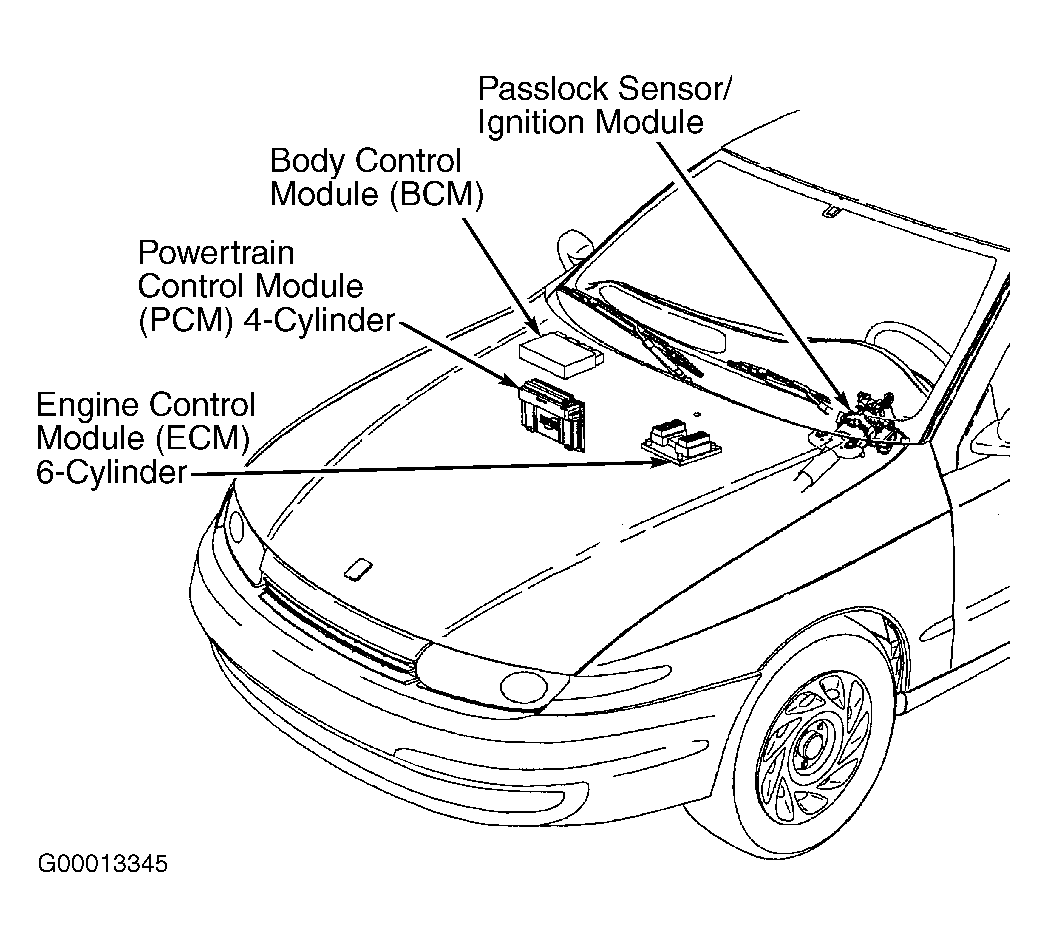

Refer to illustration to aid in component location. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module | Mounted On Top Of Glove Box |
| Engine Control Module (V6) | Center Rear Of Engine Compartment |
| Passlock(tm) Sensor/Ignition Module | Mounted On Ignition Lock Cylinder |
| Powertrain Control Module (4-Cylinder) | Behind Glove Box On Firewall |
