Rear Suspension: Description

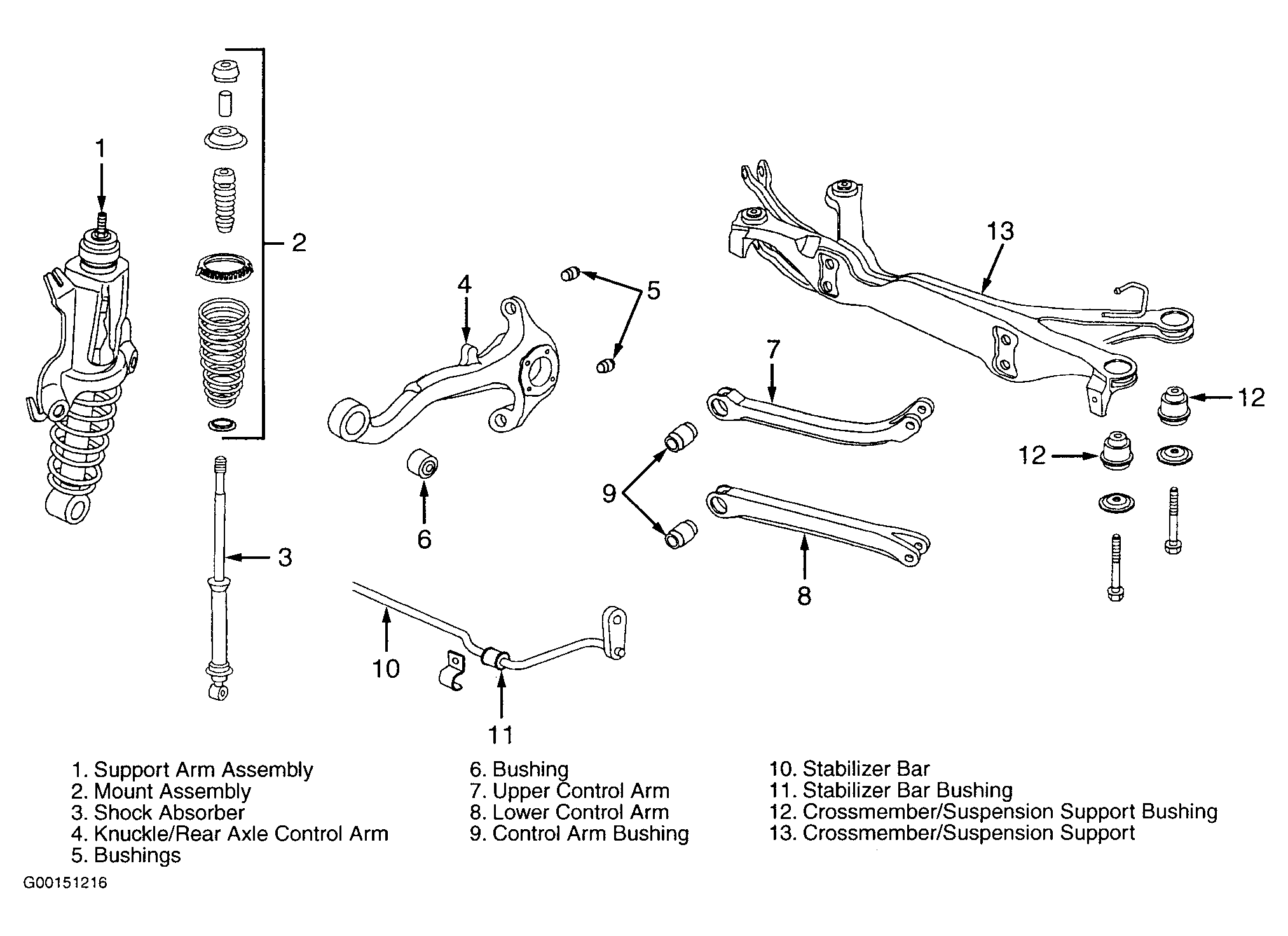

An Isolated Independent Rear Suspension is used on Saturn LS/LW vehicles. The suspension consists of two coil over shock carriers, suspension support, four lateral control arms, and two rear axle control arms. The carrier mounts to the body and rear axle control arm. See Fig 1 . Aside from spring and dust boot, strut is not serviceable and must be replaced as an assembly.
