Clutch Start Switch (Manual)

Disconnect clutch start switch electrical connector. Use a fused jumper wire to bypass switch by connecting terminal A to terminal B. Switch is faulty if engine cranks normal.

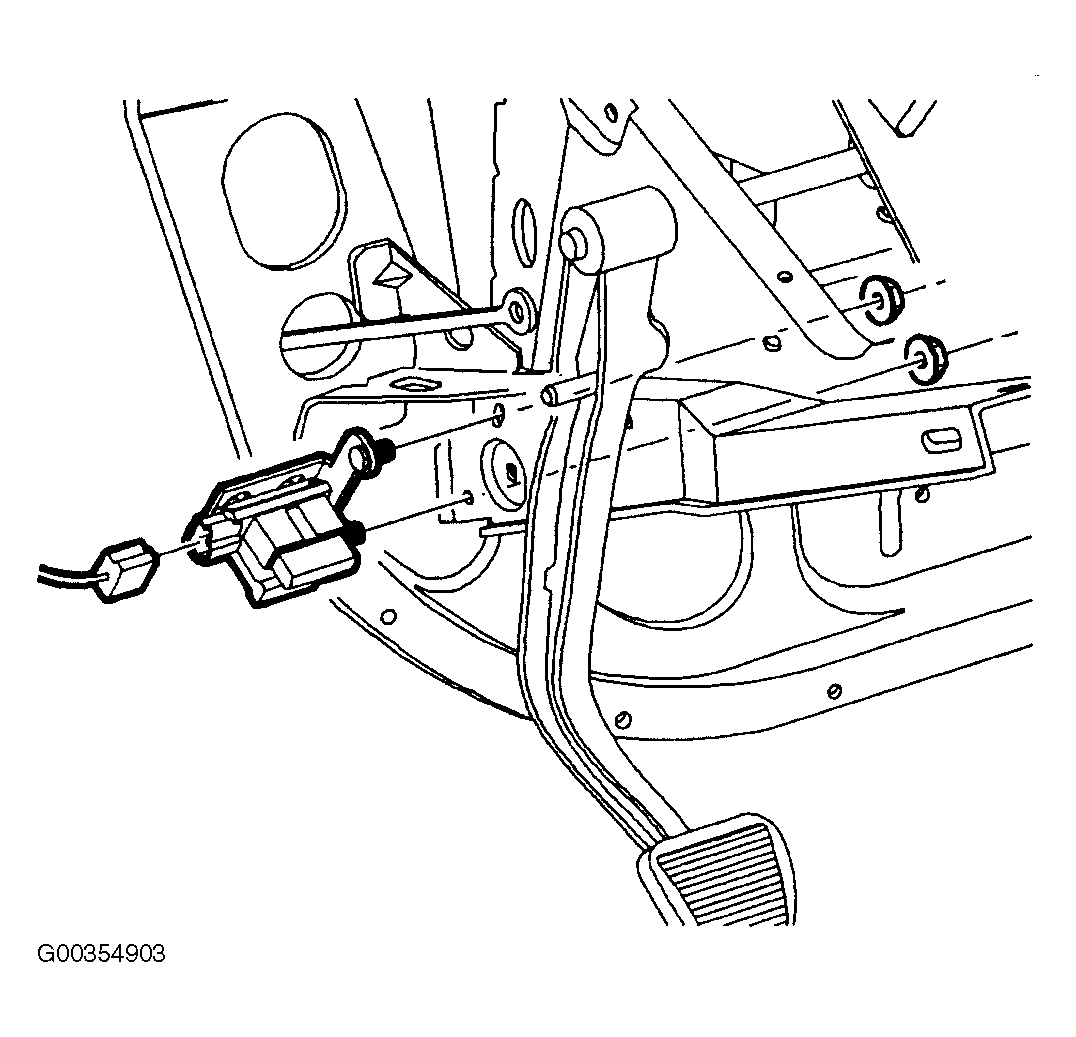

Fig 1: Testing Clutch Start Switch (Manual)
G00354903Courtesy of GENERAL MOTORS CORP.
