Floor Console: Installation

Apply park brake. Adjust front seats to most rearward position. Recline driver's and passenger's seat backs as far down as possible.
Hold front end of console down and rear end up. Position all harnesses so they can be accessed. See Fig 6 .
Maneuver console over gear selector lever and past brake lever.
Connect power outlet electrical connector. Remove tape from gear selector. Install rear console screws and tighten to 19 INCH lbs. (2.2 N.m). See Fig 3 .
Install front console screws and tighten to 19 INCH lbs. (2.2 N.m). Install left and right extension panels by inserting hinges into console. See Fig 4 .
Rotate closed and push in at dual lock locations. Install window/mirror switch. Enable SIR system. See AIR BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.

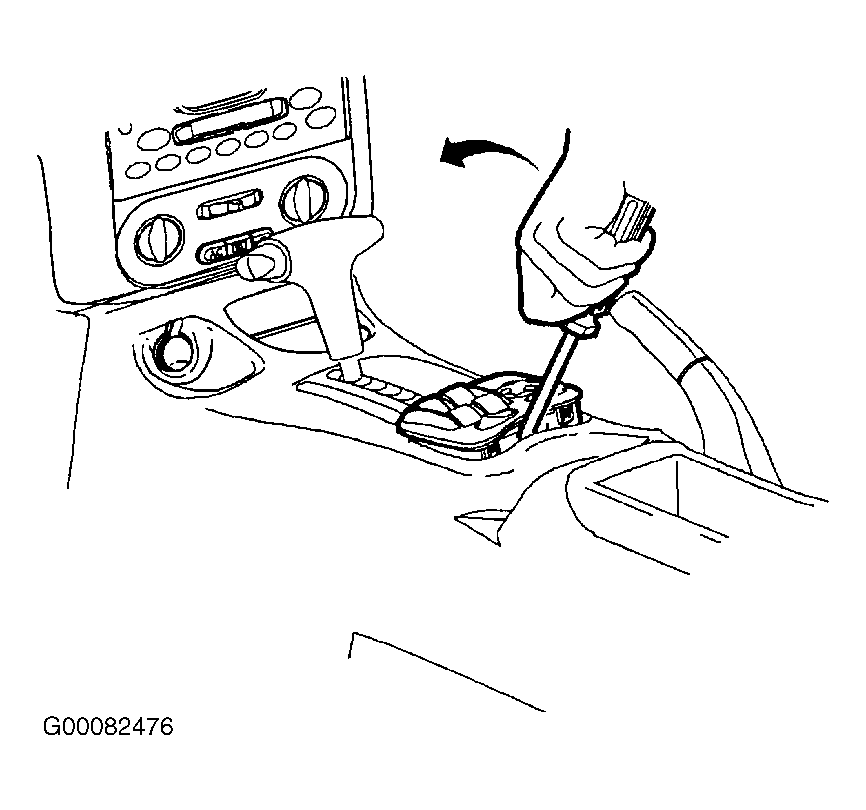

Fig 1: Releasing Window/Mirror Switch Retainers

Courtesy of GENERAL MOTORS CORP.

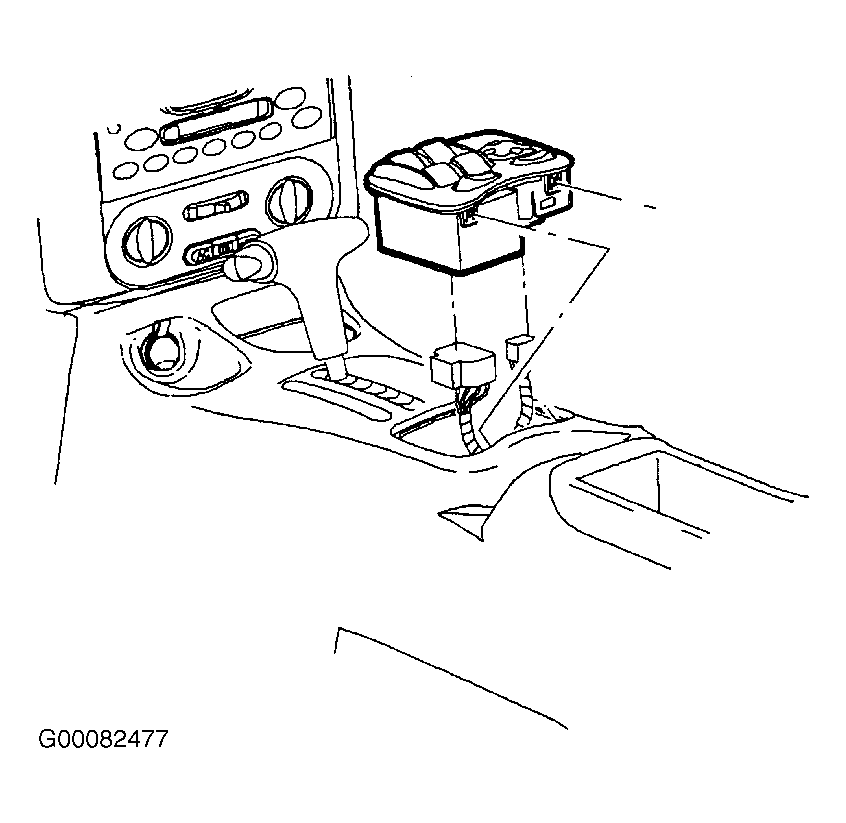

Fig 2: Removing & Installing Window/Mirror Switch

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing & Installing Rear Console Retainers

Courtesy of GENERAL MOTORS CORP.

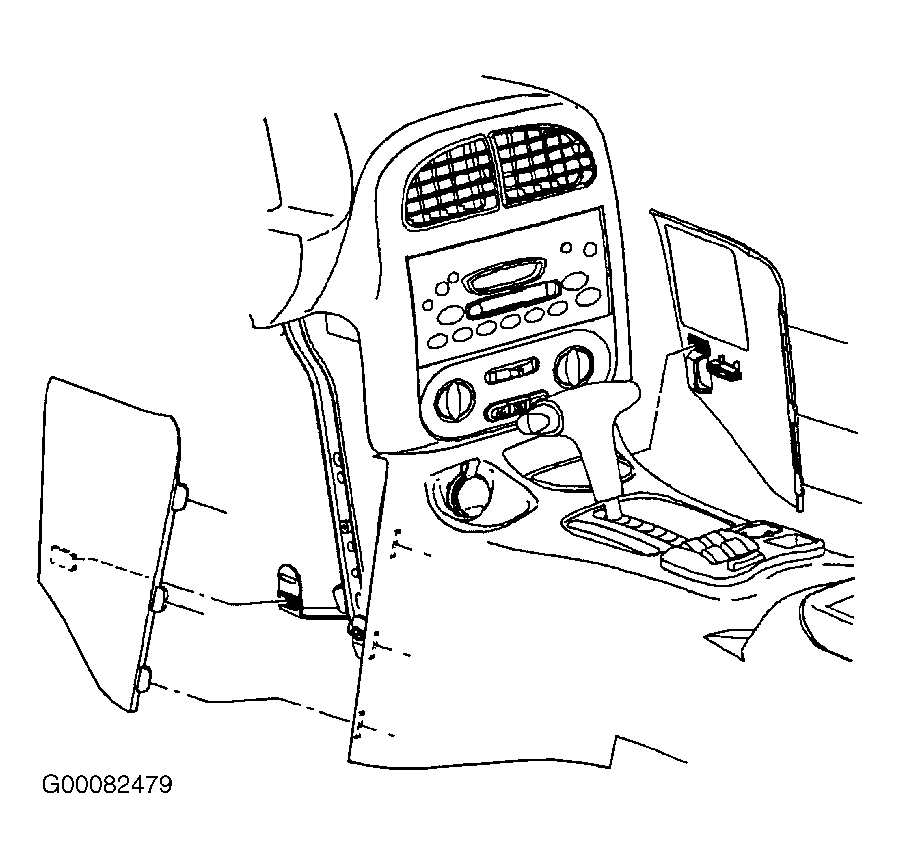

Fig 4: Removing & Installing Side Panels

Courtesy of GENERAL MOTORS CORP.

Fig 5: Removing & Installing Front Console Screws

Courtesy of GENERAL MOTORS CORP.

Fig 6: Removing & Installing Console Assembly

Courtesy of GENERAL MOTORS CORP.
