Manual Transaxle Performance Chart

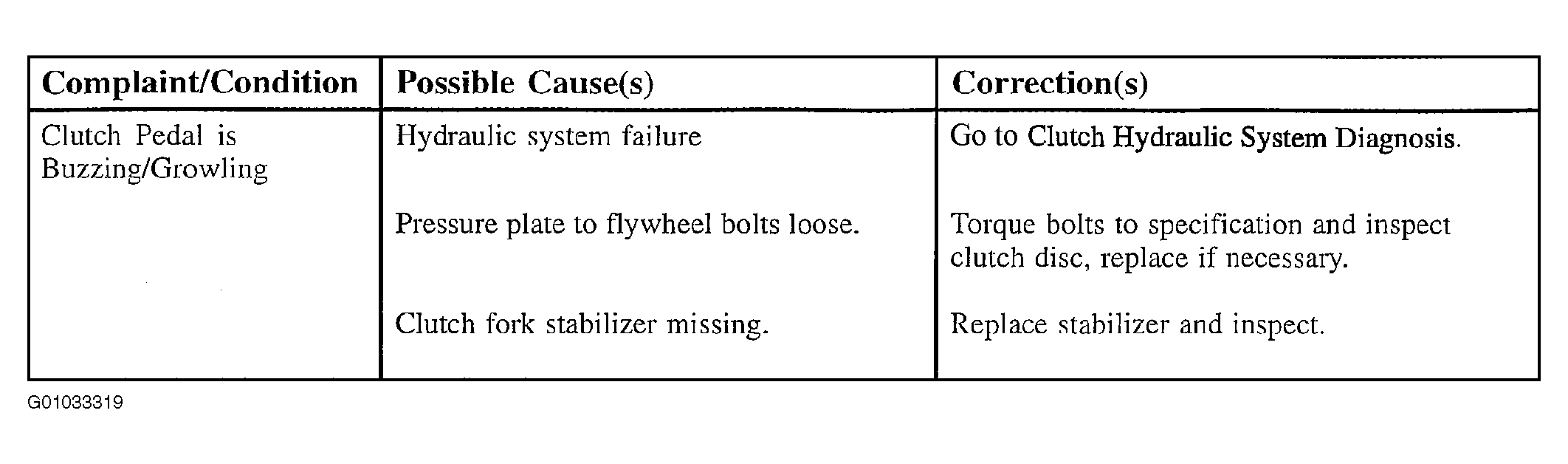

Fig 1: Manual Transaxle Performance Chart (1 of 7)

Courtesy of GENERAL MOTORS CORP.

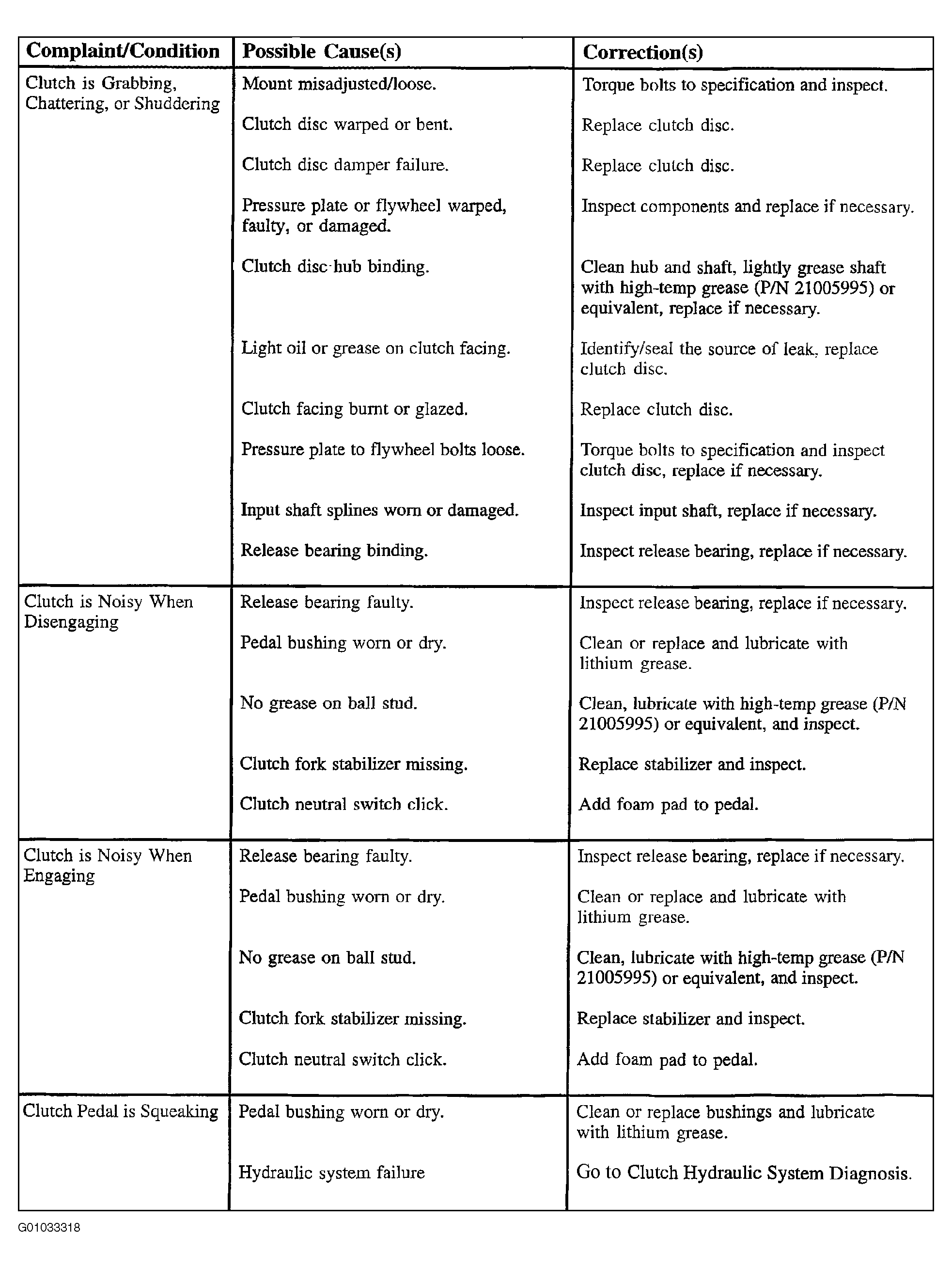

Fig 2: Manual Transaxle Performance Chart (2 of 7)

Courtesy of GENERAL MOTORS CORP.

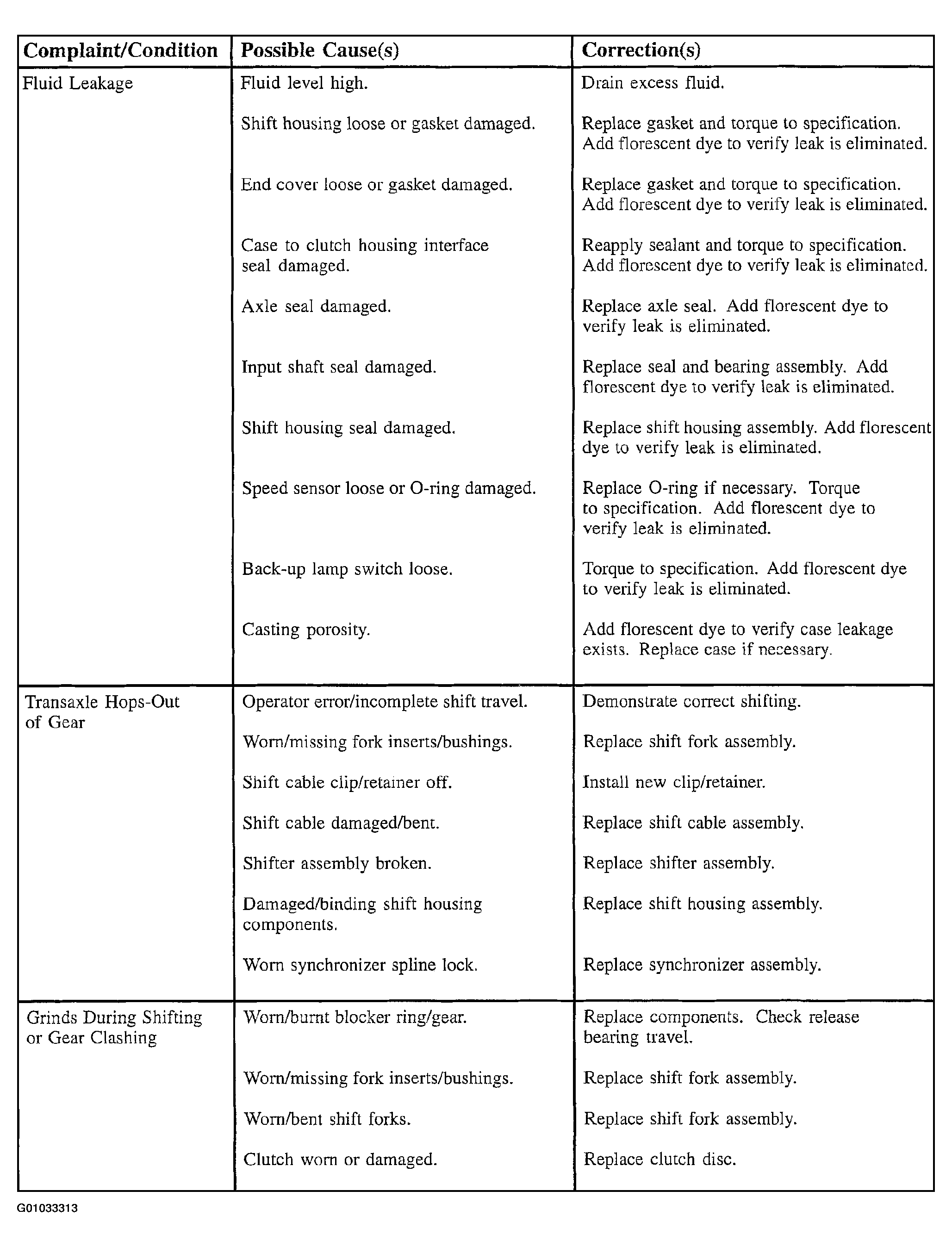

Fig 3: Manual Transaxle Performance Chart (3 of 7)

Courtesy of GENERAL MOTORS CORP.

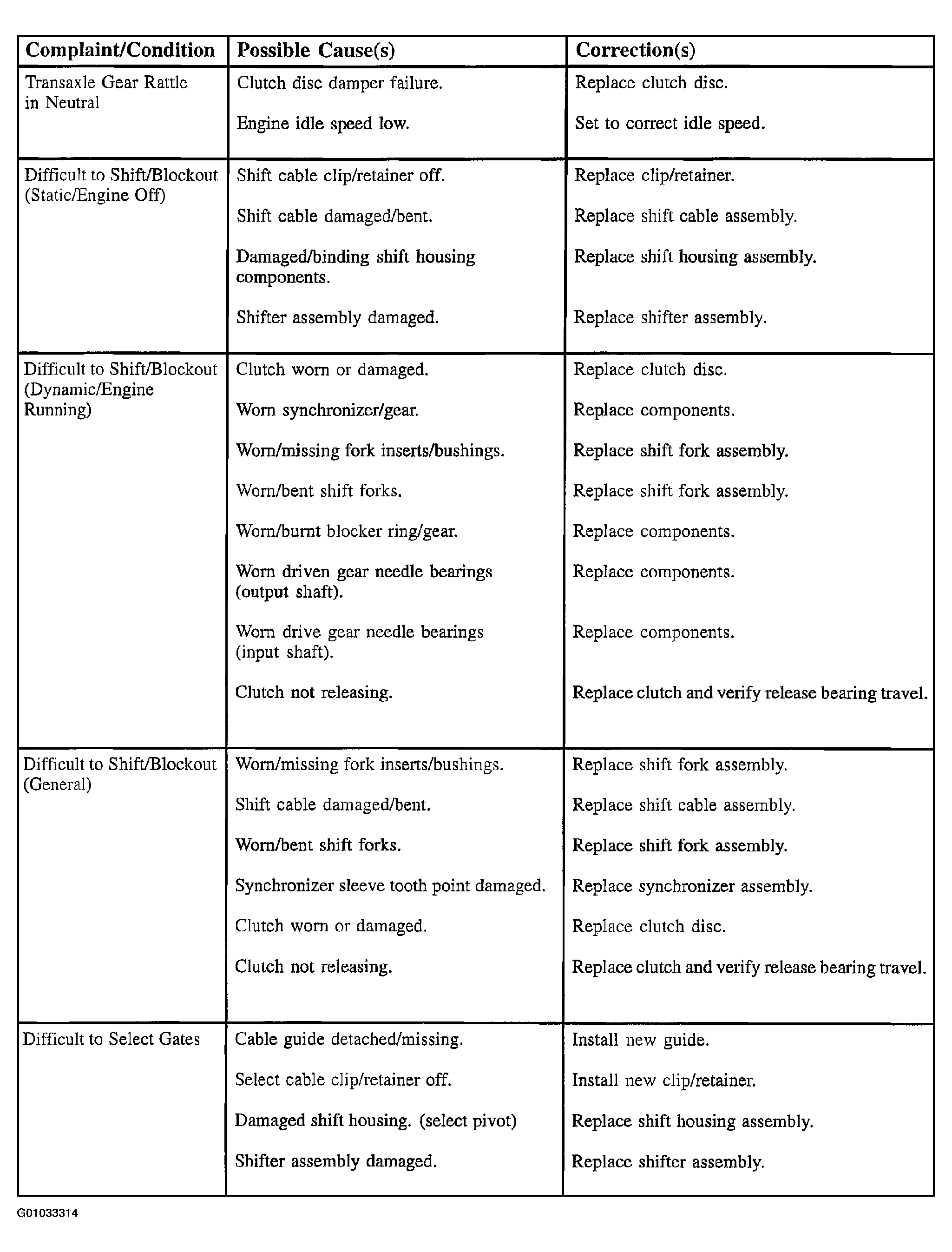

Fig 4: Manual Transaxle Performance Chart (4 of 7)

Courtesy of GENERAL MOTORS CORP.

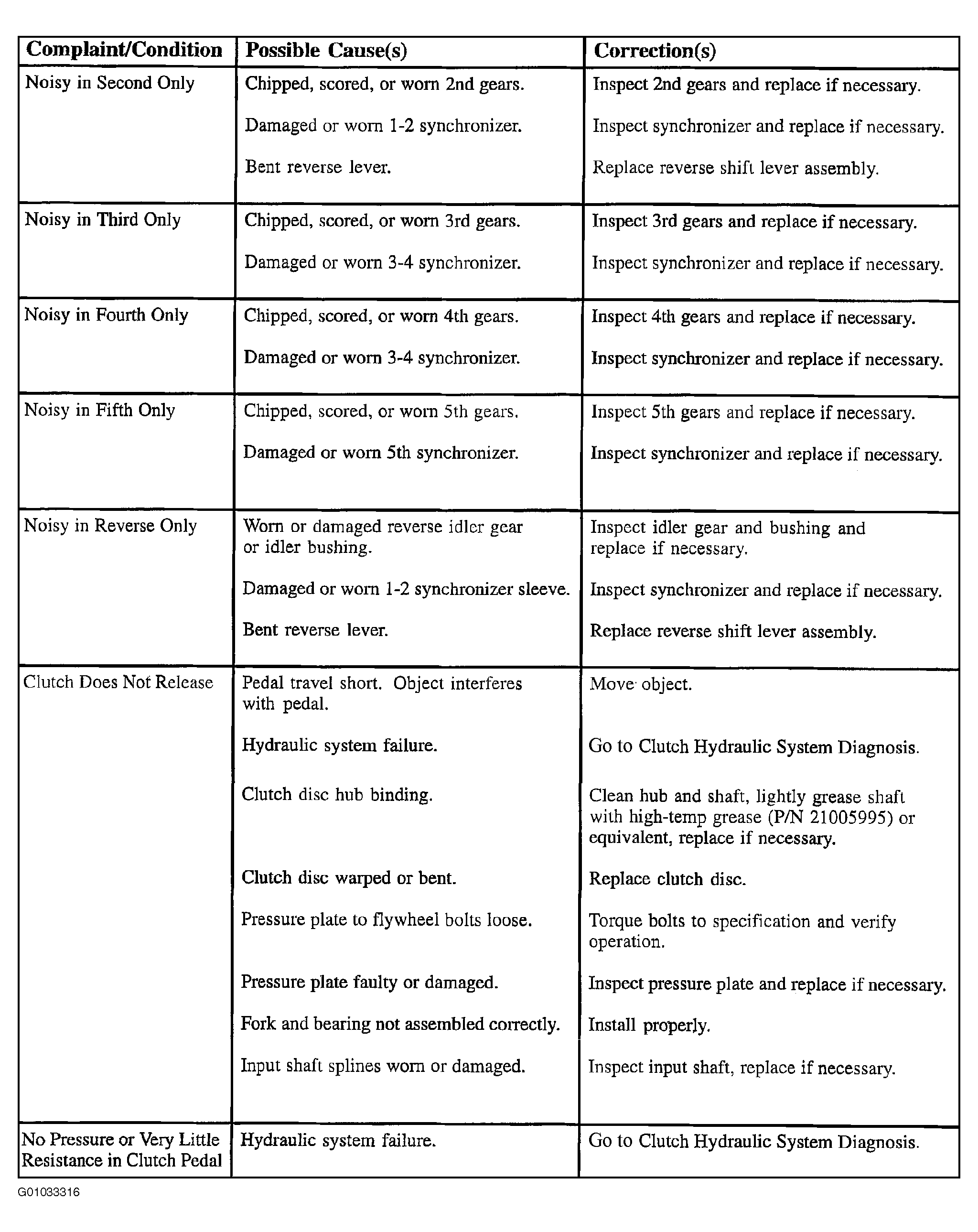

Fig 5: Manual Transaxle Performance Chart (5 of 7)

Courtesy of GENERAL MOTORS CORP.

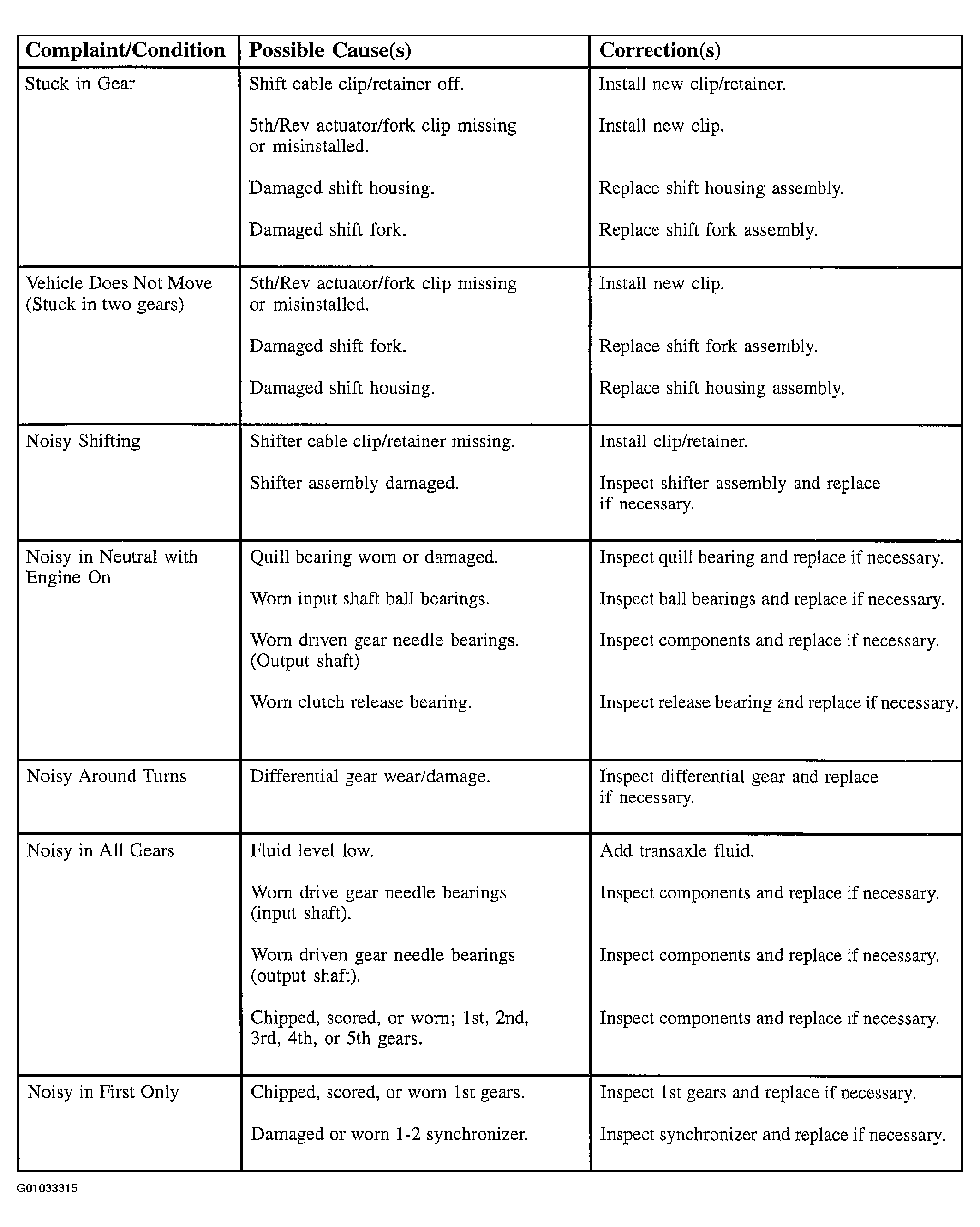

Fig 6: Manual Transaxle Performance Chart (6 of 7)

Courtesy of GENERAL MOTORS CORP.

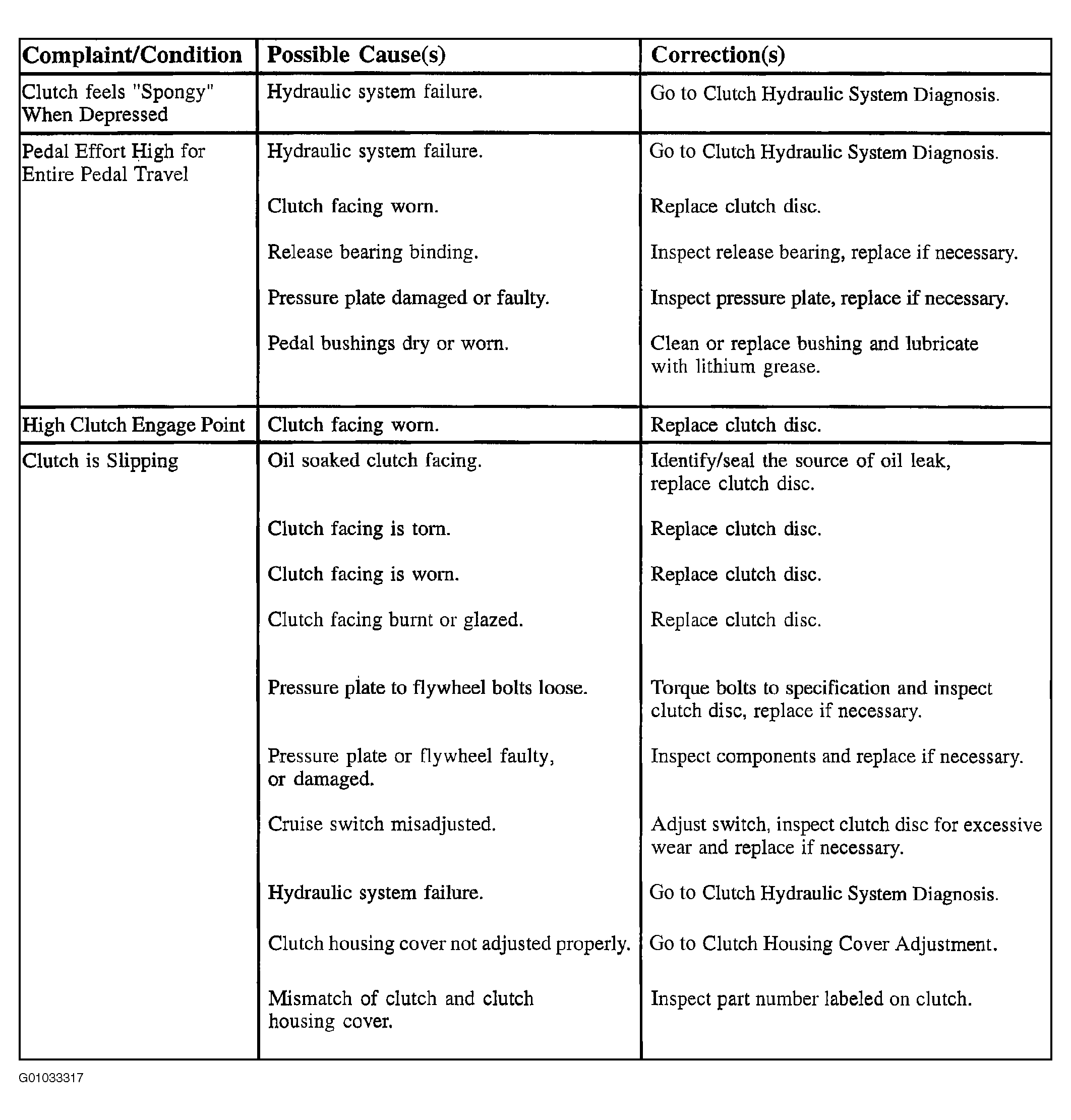

Fig 7: Manual Transaxle Performance Chart (7 of 7)

Courtesy of GENERAL MOTORS CORP.
