Home >> Saturn >> 2002 >> L100 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnostics >> DTC C0245: Wheel Speed Sensor Frequency Error >> Notes

DTC C0245: Wheel Speed Sensor Frequency Error: Notes

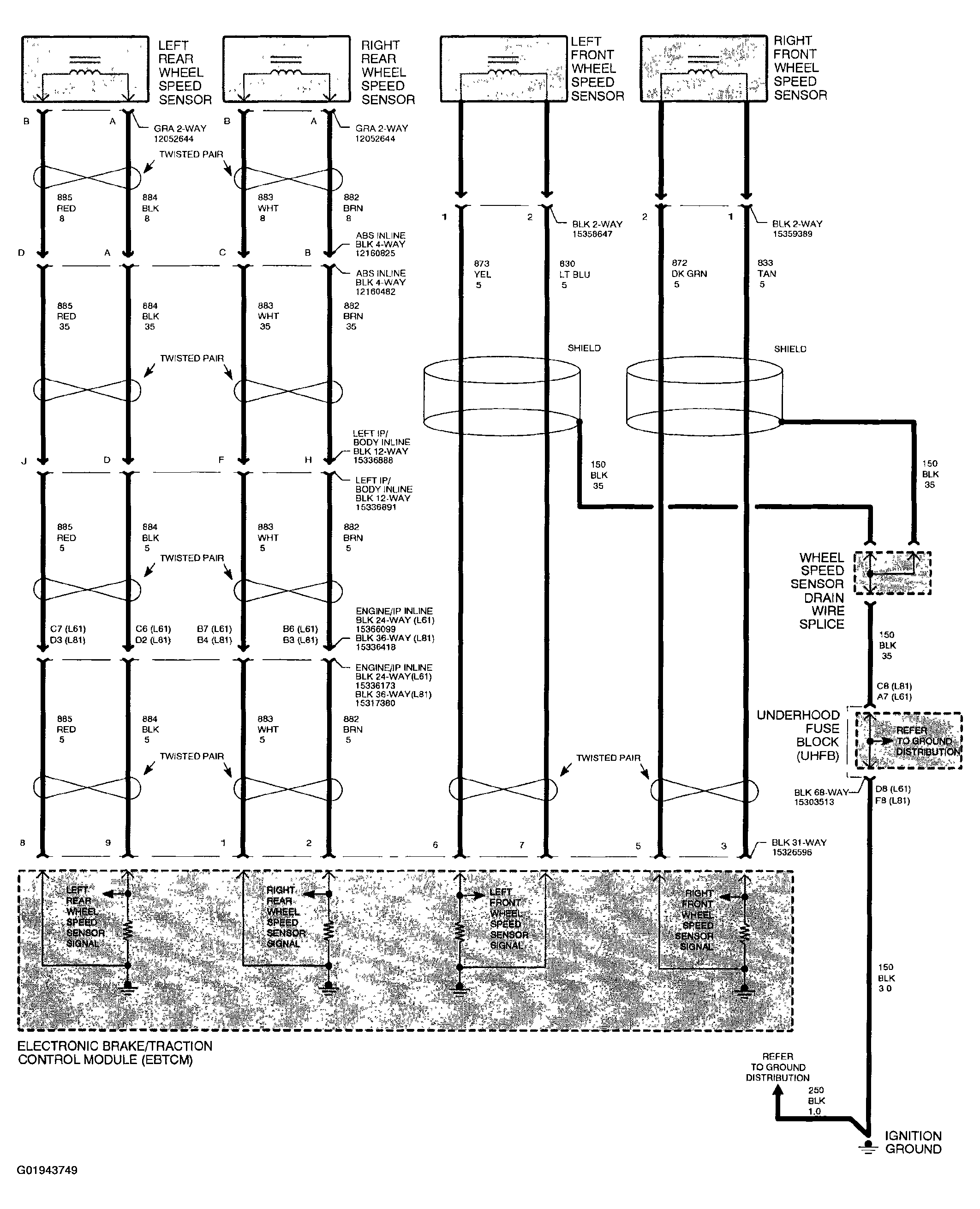

Fig 1: C0245 - Wheel Speed Sensor Frequency Error Schematic
G01943749Courtesy of GENERAL MOTORS CORP.
