Body Control Module: Installation

  1. Install glove compartment bin partially into opening.
  2. Secure BCM to glove compartment bin slots.
  3. Install BCM harness connectors.

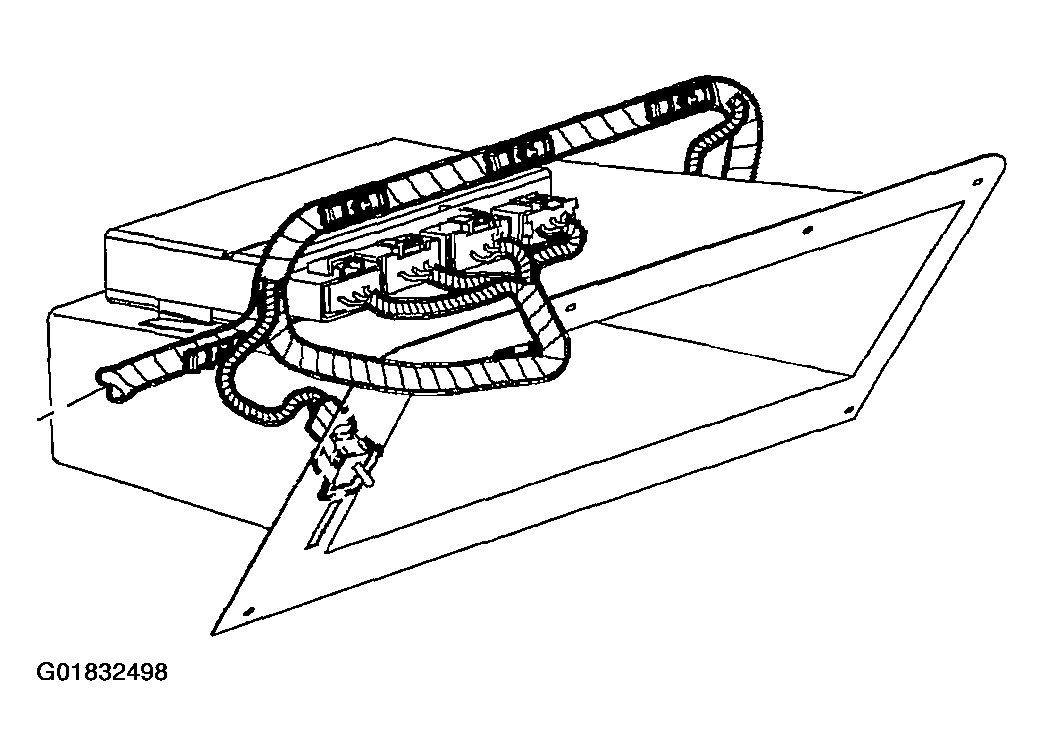

    4. Fig 1: Install BCM Harness Connectors
    G01832498Courtesy of GENERAL MOTORS CORP.
  4. Route glove box lamp wiring harness through lamp opening and connect glove compartment lamp wiring harness to glove compartment lamp.
  5. Snap lamp into glove compartment bin.

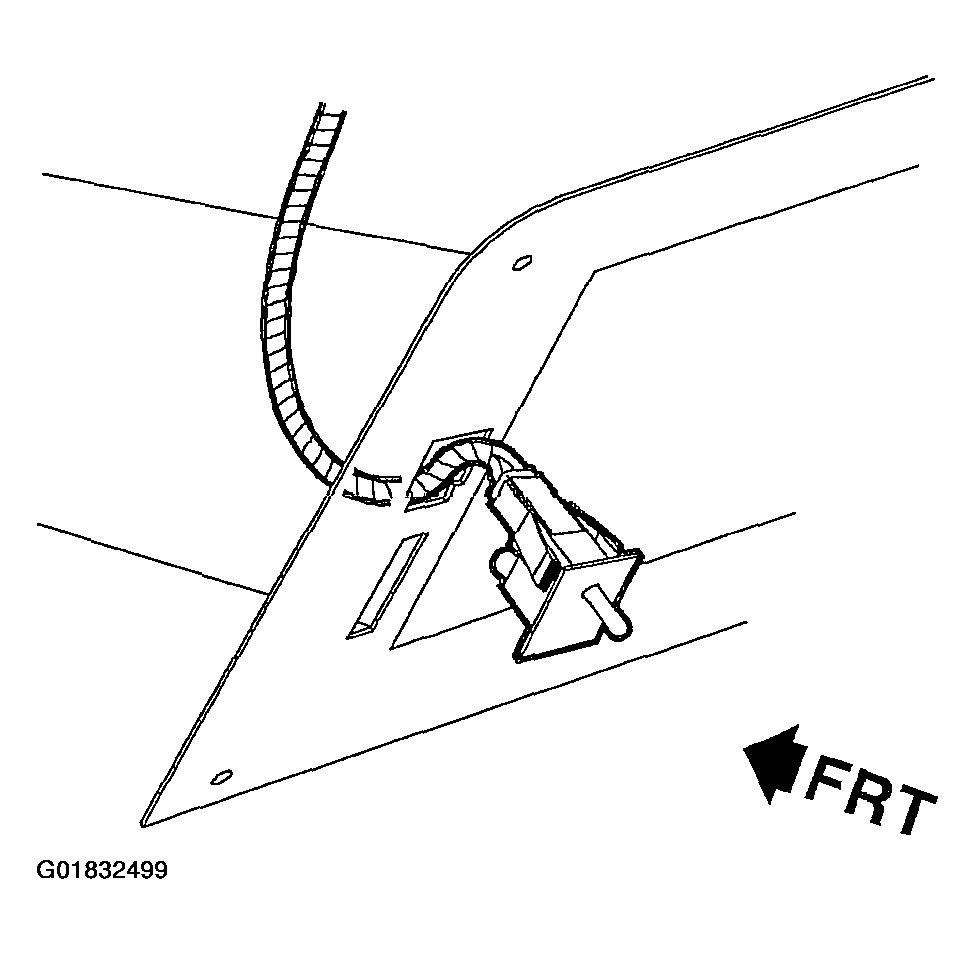

    6. Fig 2: Snapping Lamp Into Glove Compartment Bin
    G01832499Courtesy of GENERAL MOTORS CORP.
  6. Install glove compartment bin to I/P with fasteners. Tighten glove compartment bin-to-I/P fasteners to 2.5 N.m (22 in-lbs).

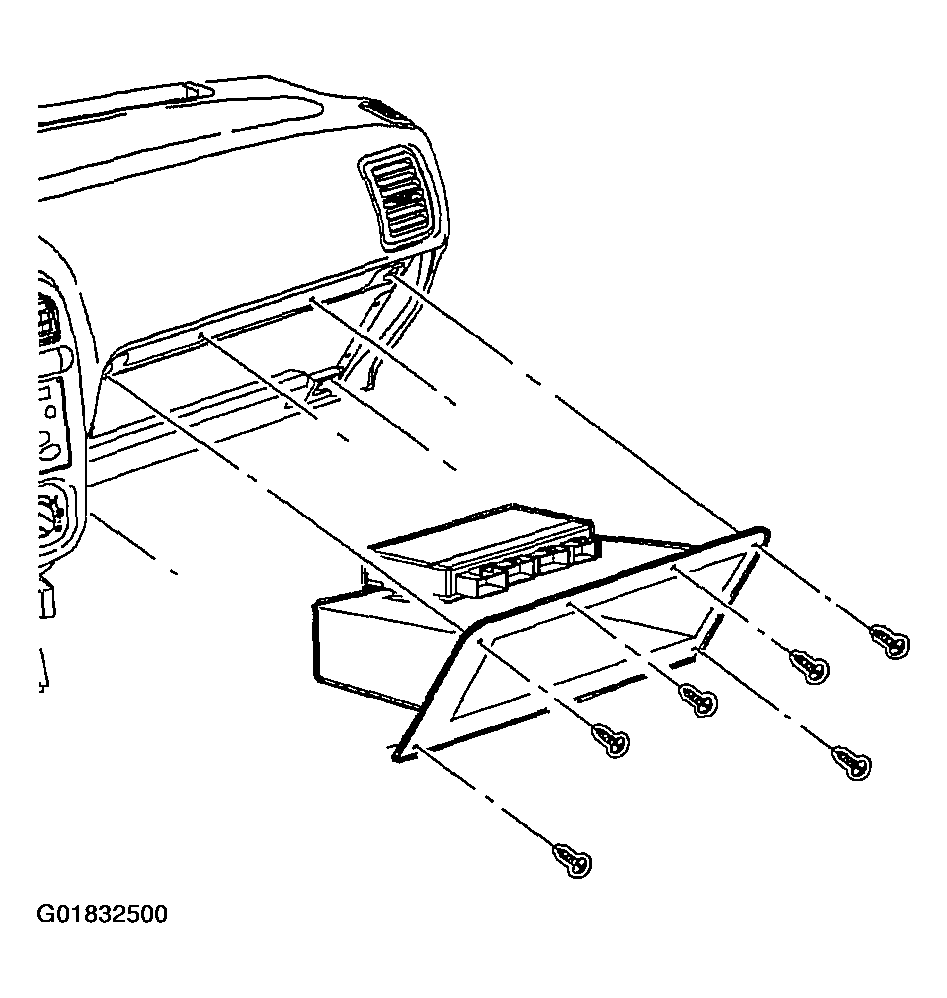

    7. Fig 3: Installing Glove Compartment Bin-To-I/P With Fasteners
    G01832500Courtesy of GENERAL MOTORS CORP.
  7. Install right side heater outlet with retainer to glove compartment bin.

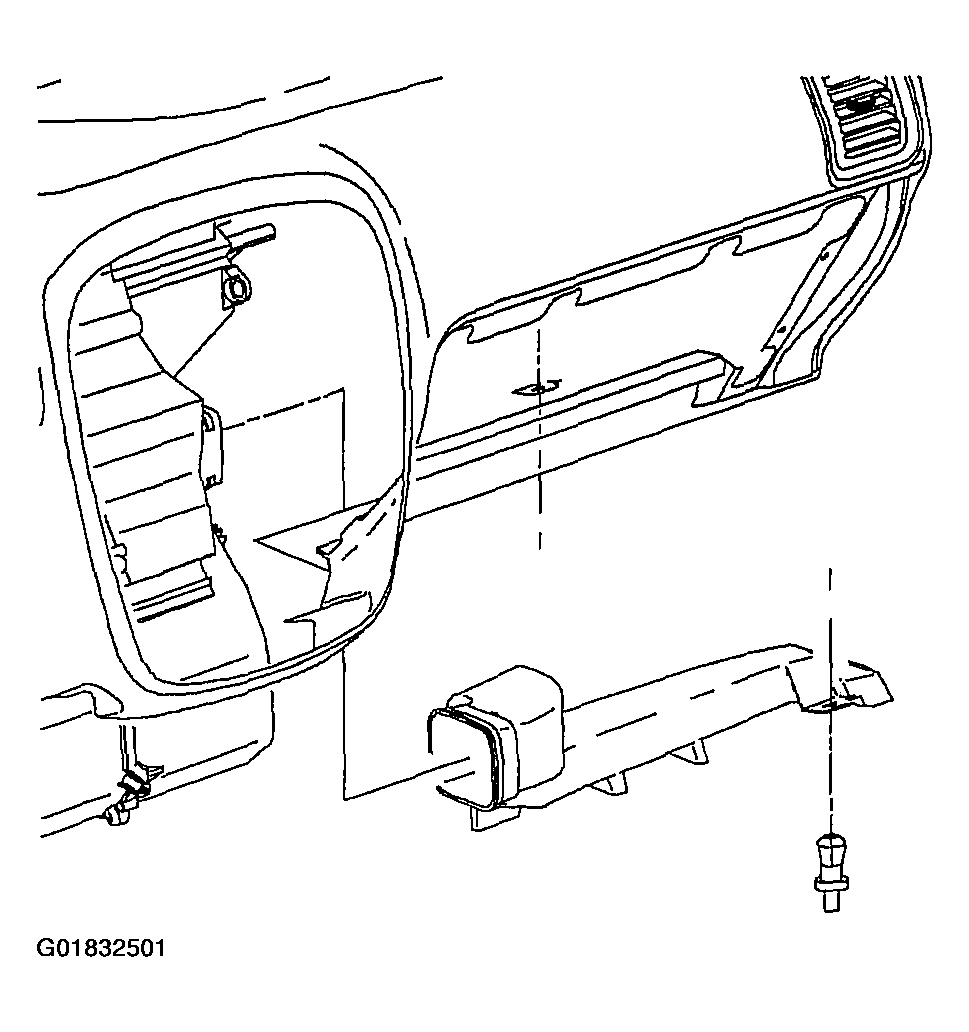

    8. Fig 4: Installing Right Side Heater Outlet
    G01832501Courtesy of GENERAL MOTORS CORP.
  8. Install right side lower I/P closeout panel (hush panel) with retainers.

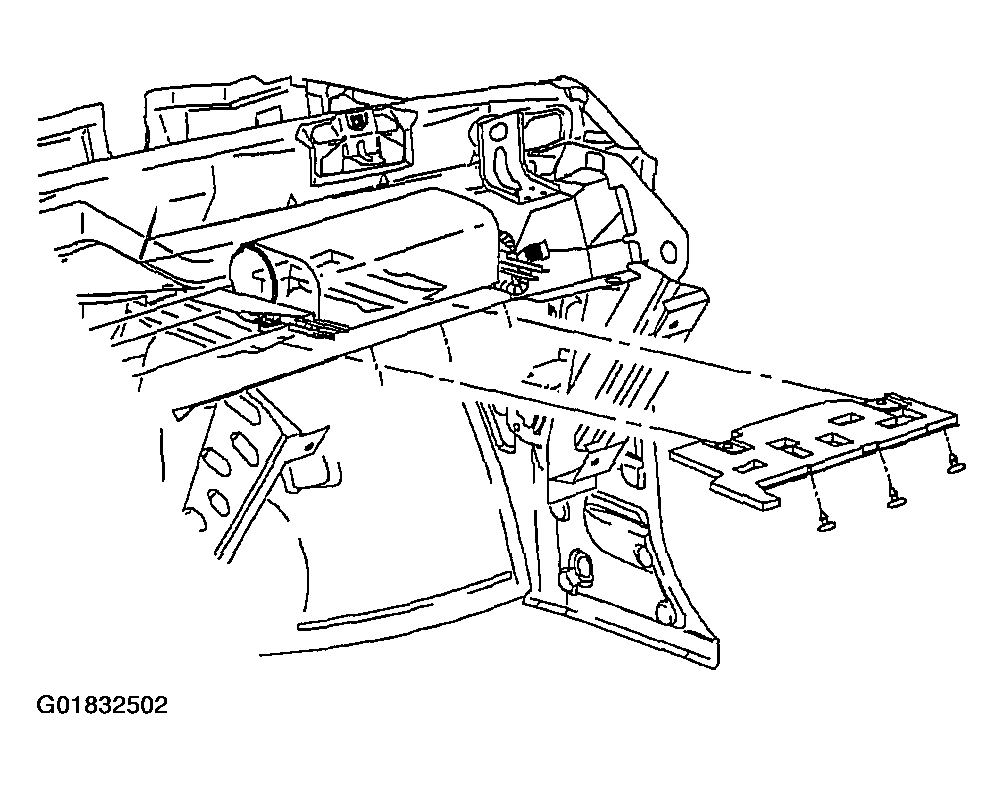

    9. Fig 5: Installing Right Side Lower I/P Closeout Panel (Hush Panel)
    G01832502Courtesy of GENERAL MOTORS CORP.
  9. Operate glove compartment lamp and glove compartment door to ensure proper operation.
  10. Install glove compartment door with fasteners. Tighten glove compartment door outer cover fasteners to 2 N.m (18 in-lbs).

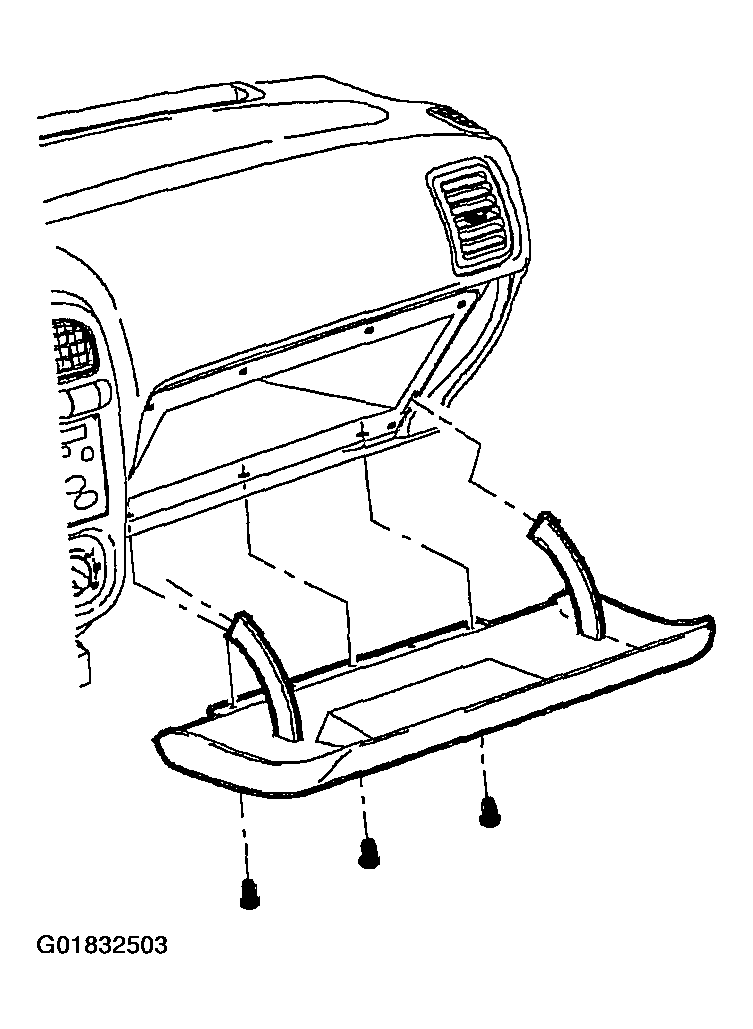

    11. Fig 6: Installing Glove Compartment Door With Fasteners
    G01832503Courtesy of GENERAL MOTORS CORP.
