Body Control Module: Removal

NOTE: After replacement of BCM, programming is required. Refer to Saturn Service Stall System (SSS) user's guide.
  1. Open glove compartment door.
  2. Remove glove compartment lamp assembly by pulling on lamp plunger.

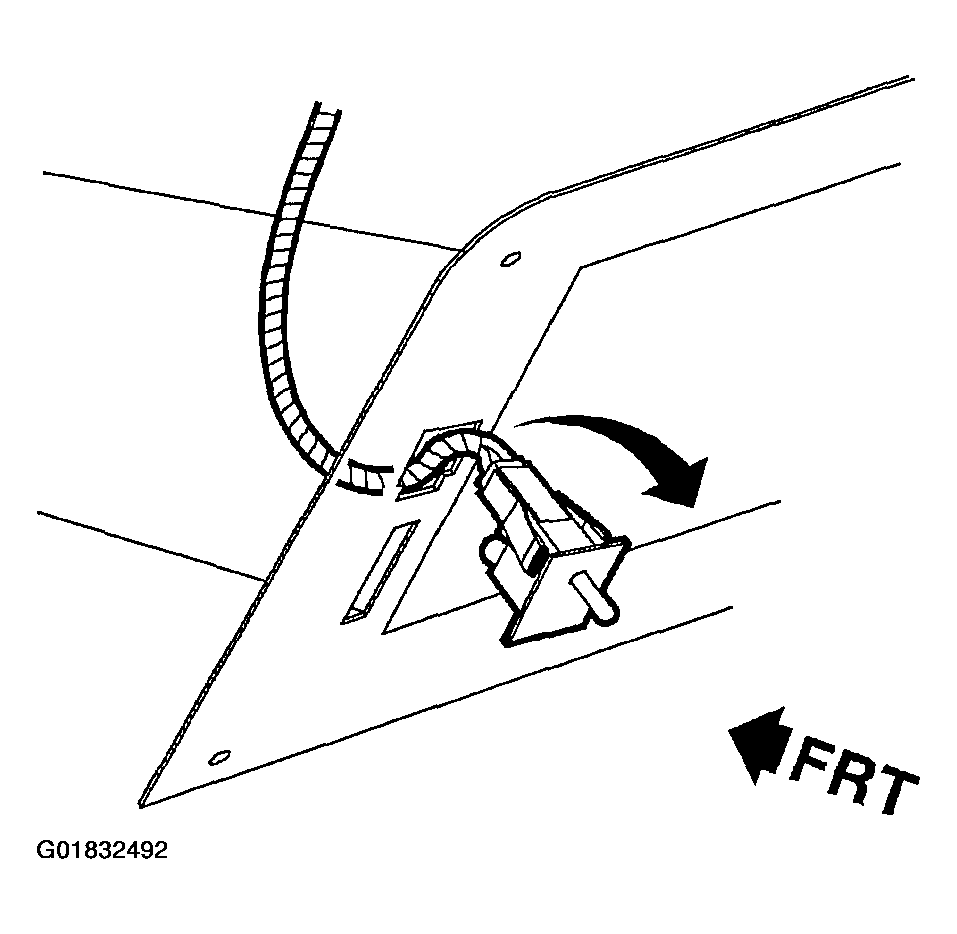

    3. Fig 1: Removing Glove Compartment Lamp Assembly
    G01832492Courtesy of GENERAL MOTORS CORP.
  3. Disconnect glove compartment lamp wiring harness from glove compartment lamp.
  4. Remove right side I/P lower closeout panel (hush panel) retainers.

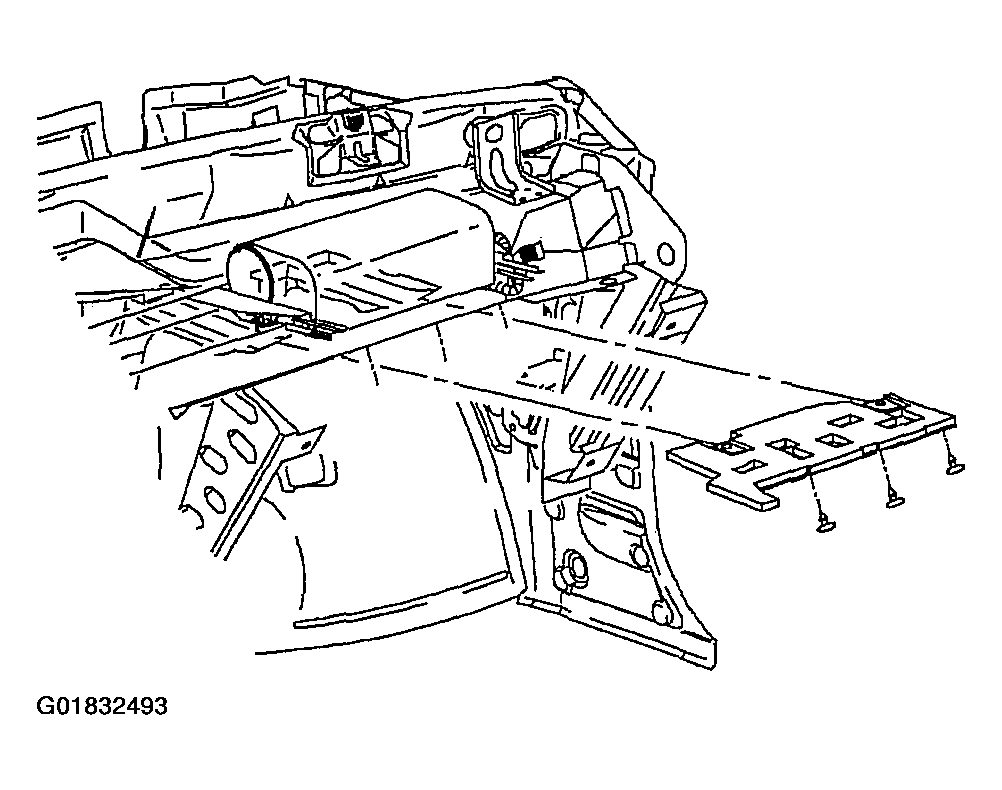

    5. Fig 2: Removing Right Side I/P Lower Closeout Panel (Hush Panel) Retainers
    G01832493Courtesy of GENERAL MOTORS CORP.
  5. Pull closeout panel (hush panel) rearward to detach from forward retainers.
  6. Remove right side heater outlet assembly retainer and remove outlet.

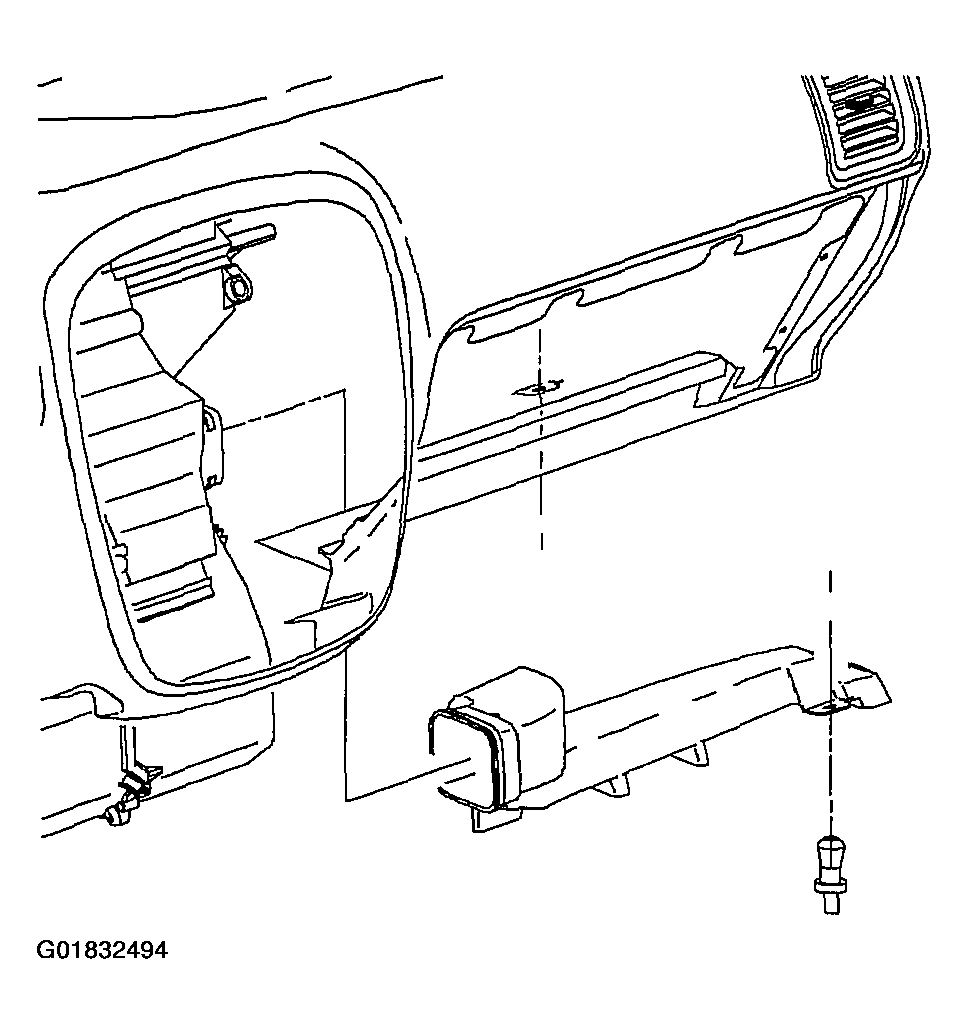

    7. Fig 3: Removing Right Side Heater Outlet Assembly
    G01832494Courtesy of GENERAL MOTORS CORP.
  7. Remove glove compartment door.

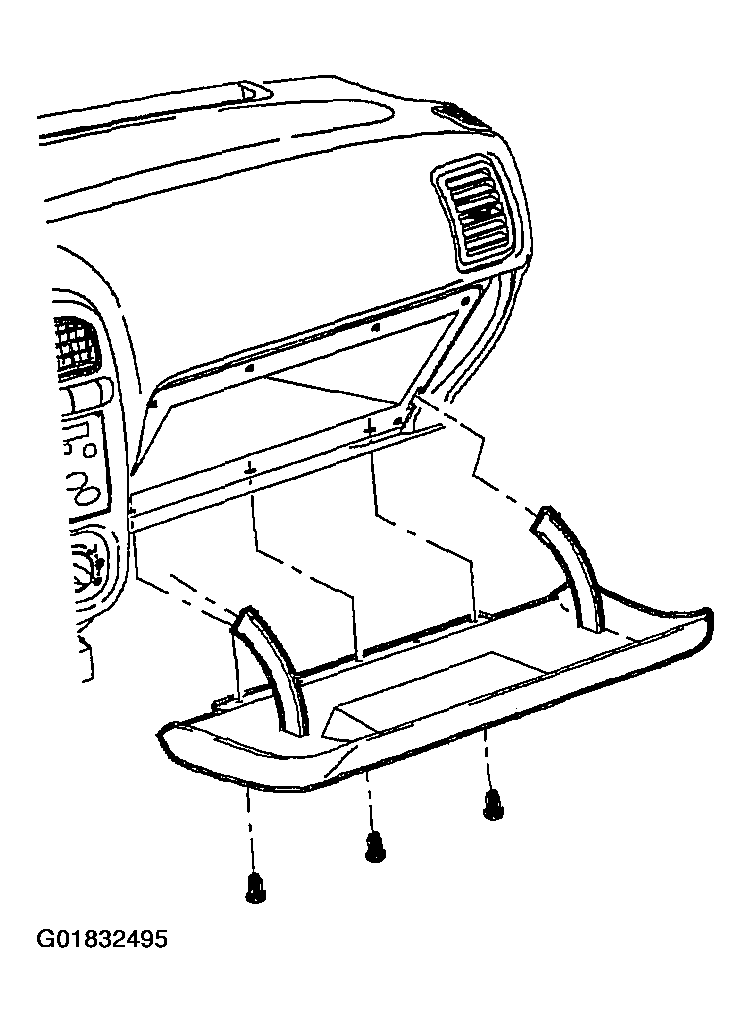

    8. Fig 4: Removing Glove Compartment Door
    G01832495Courtesy of GENERAL MOTORS CORP.
  8. Remove glove compartment bin fasteners.

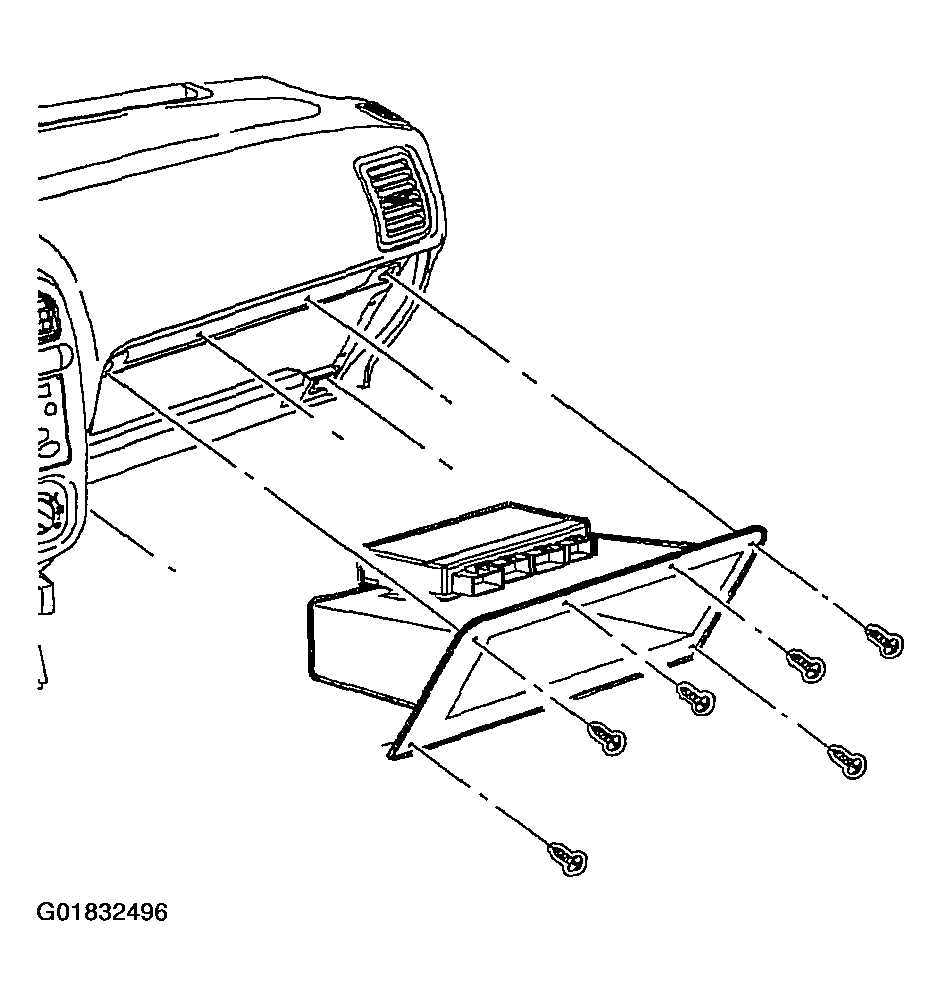

    9. Fig 5: Removing Glove Compartment Bin Fasteners
    G01832496Courtesy of GENERAL MOTORS CORP.
  9. Slowly remove glove compartment bin tilting bin downward to expose BCM residing on top of glove box.
  10. Remove BCM module from glove compartment by sliding module out of attaching slots.
  11. Remove BCM harness connectors.

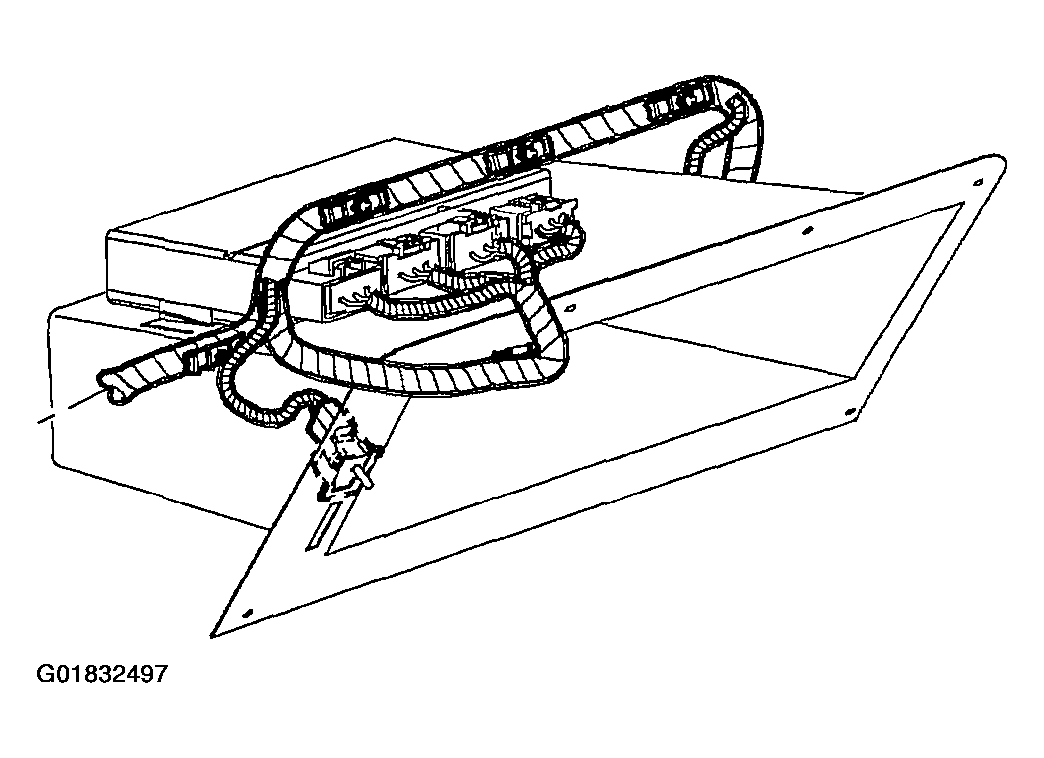

    12. Fig 6: Removing BCM Harness Connectors
    G01832497Courtesy of GENERAL MOTORS CORP.
