L-Series Serial Data Communication Network: Notes

Fig 1: Data Link Connector End View
G01832600Courtesy of GENERAL MOTORS CORP.

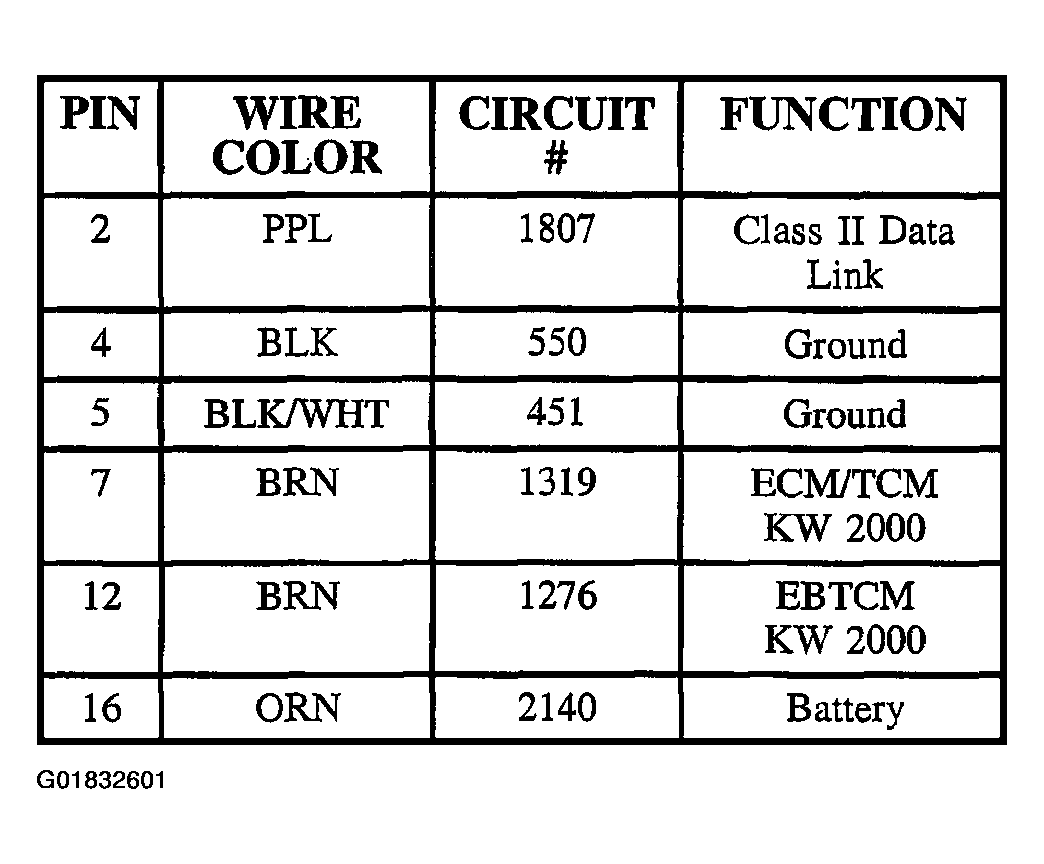

Fig 2: Data Link Connector Pin Description Table
G01832601Courtesy of GENERAL MOTORS CORP.

The Saturn L-series may consist of up to three types of serial data communication links. The type of link(s) used for a given vehicle will depend on the engine type and whether it's equipped with an Electronic Brake/Traction Control Module (EBTCM).

The three serial data communication links are:
