Engine Block (Bottom View)

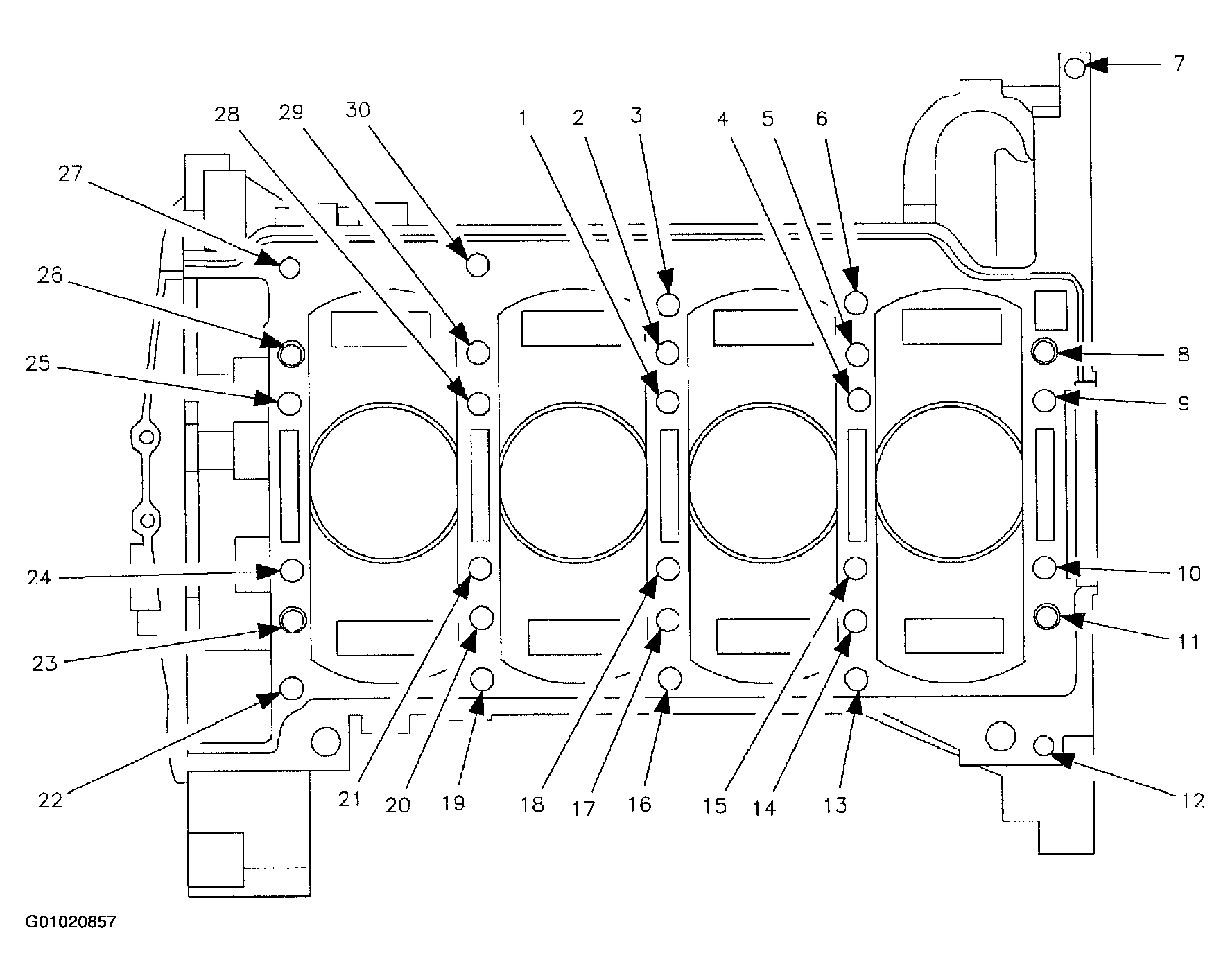

Fig 1: Engine Block (Bottom View)
G01020857Courtesy of GENERAL MOTORS CORP.

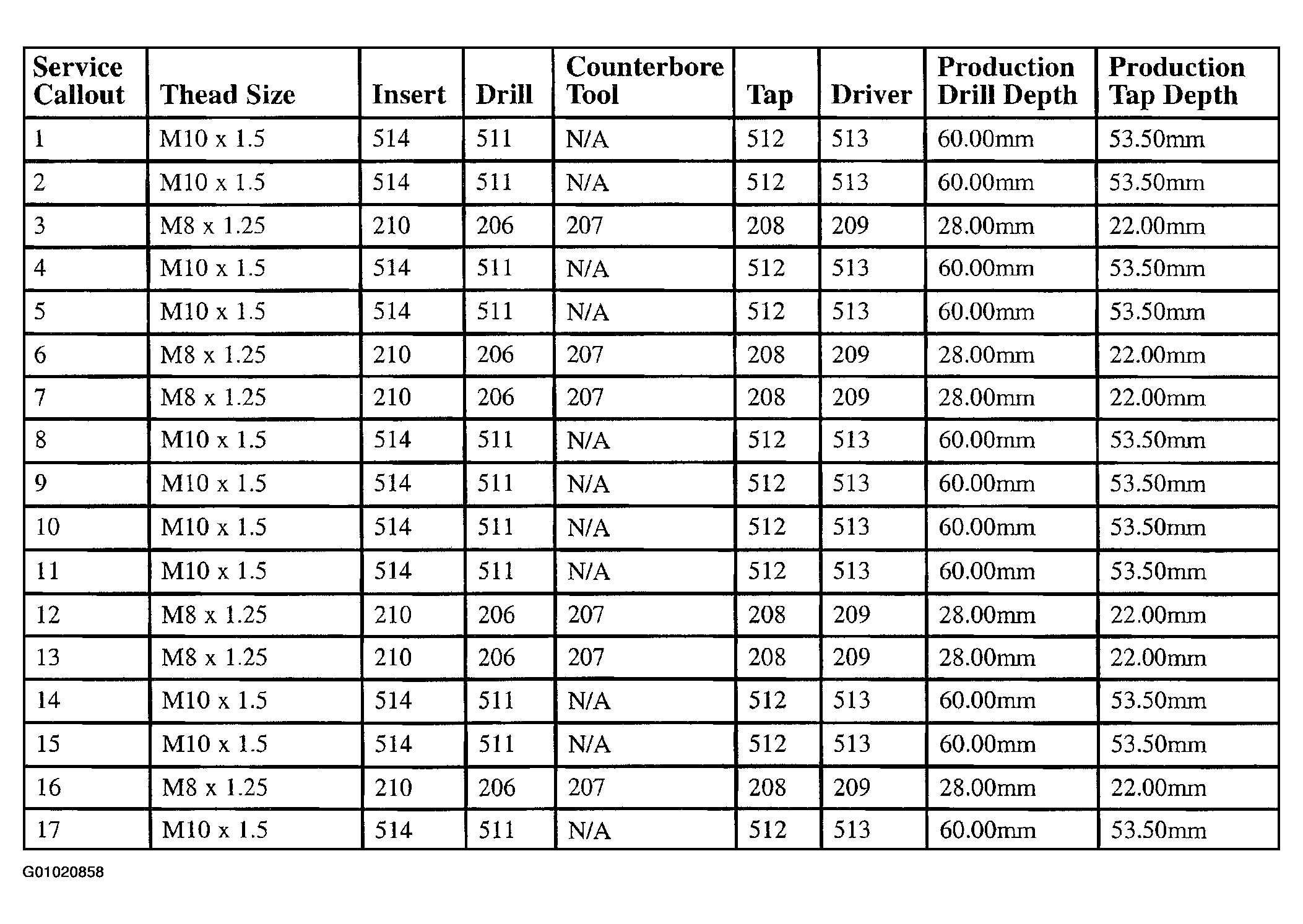

Fig 2: Engine Block (Bottom View) Specifications (1 Of 2)
G01020858Courtesy of GENERAL MOTORS CORP.

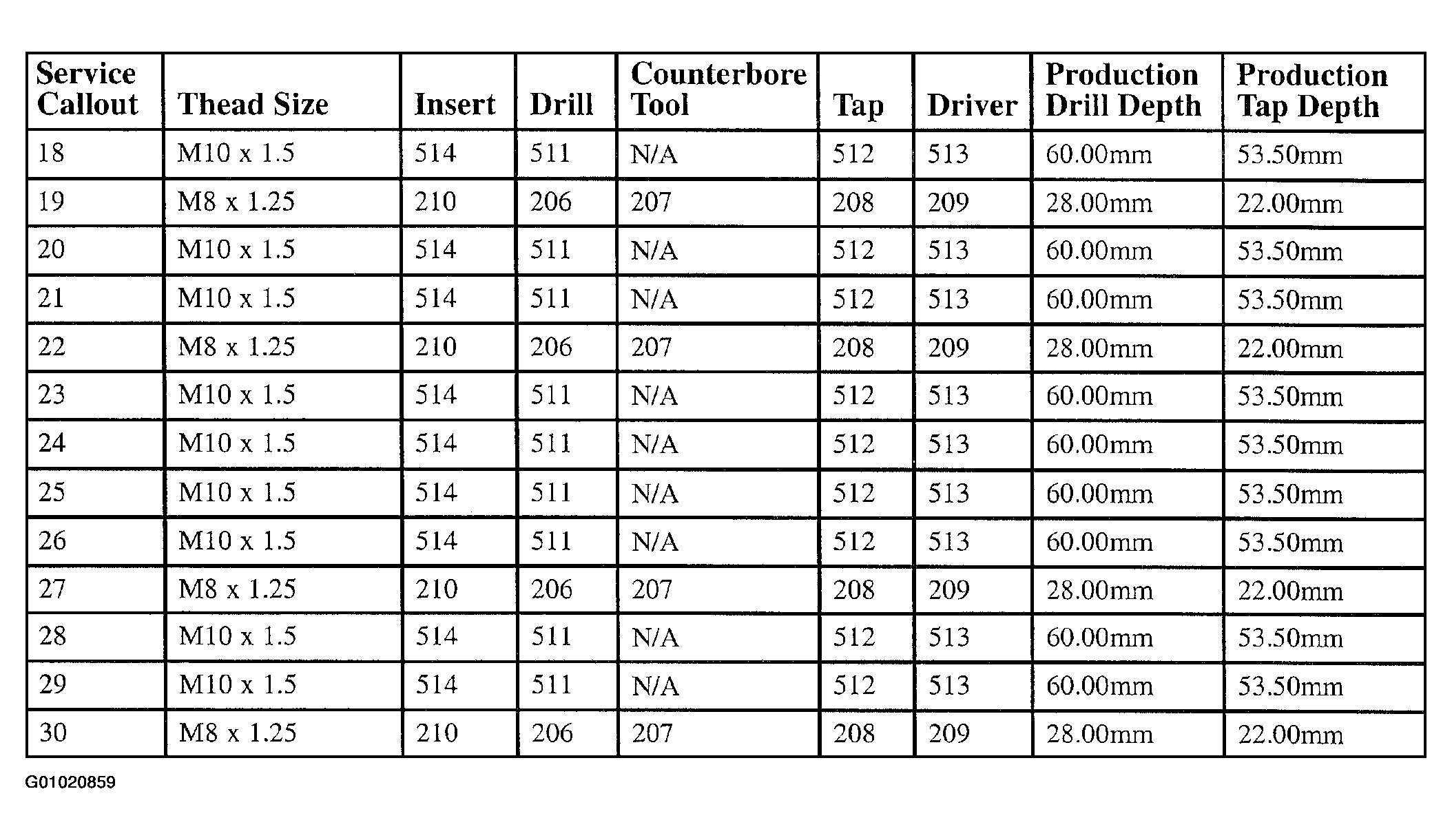

Fig 3: Engine Block (Bottom View) Specifications (2 Of 2)
G01020859Courtesy of GENERAL MOTORS CORP.
