Engine Block (Left Side View)

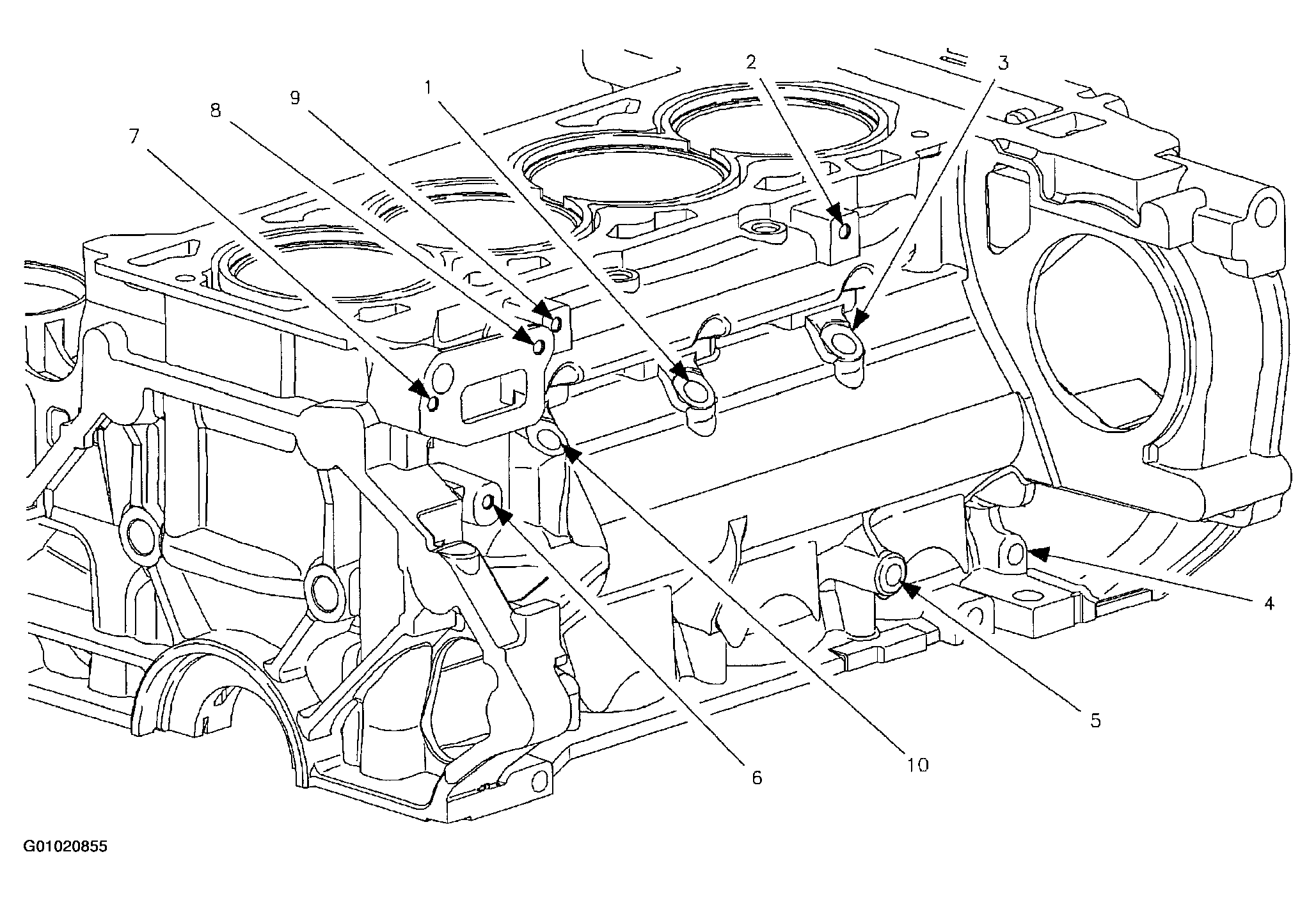

Fig 1: Engine Block (Left Side View)

G01020855

Courtesy of GENERAL MOTORS CORP.

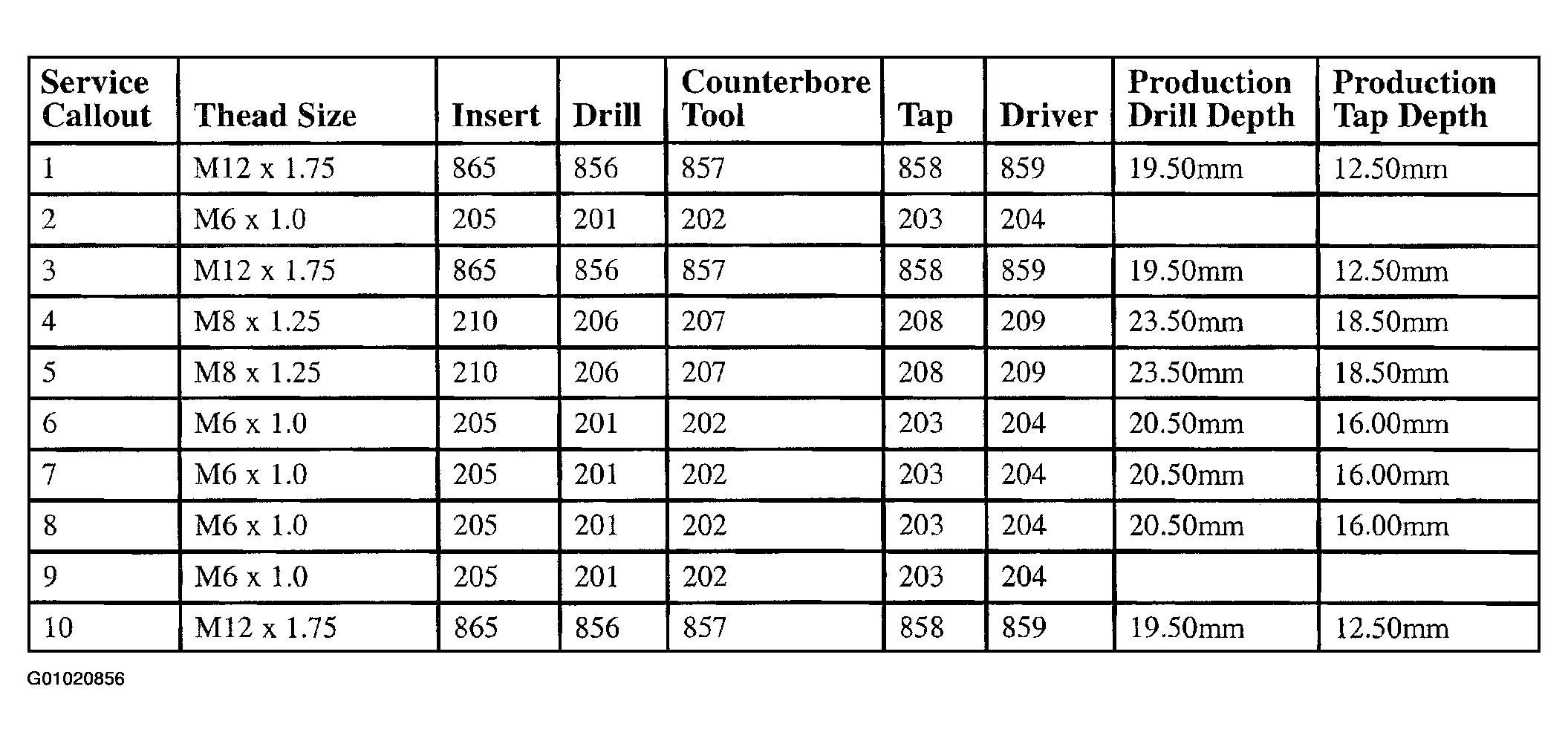

Fig 2: Engine Block (Left Side View) Specifications

G01020856

Courtesy of GENERAL MOTORS CORP.
