L61 Engine Torque Specifications

Fig 1: Engine Torque Specifications (1 Of 5)
G01020795Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Torque Specifications (2 Of 5)
G01020796Courtesy of GENERAL MOTORS CORP.

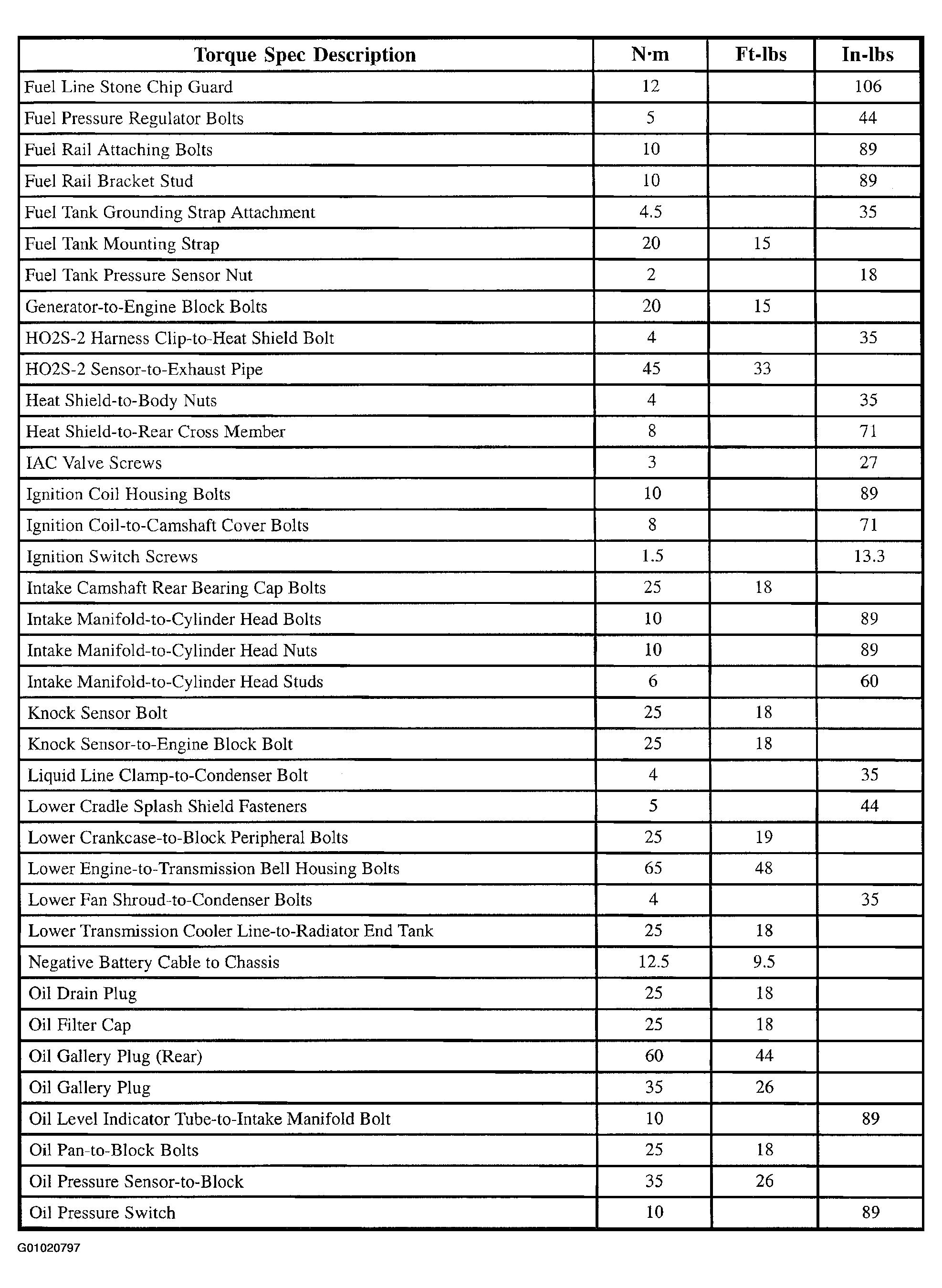

Fig 3: Engine Torque Specifications (3 Of 5)
G01020797Courtesy of GENERAL MOTORS CORP.

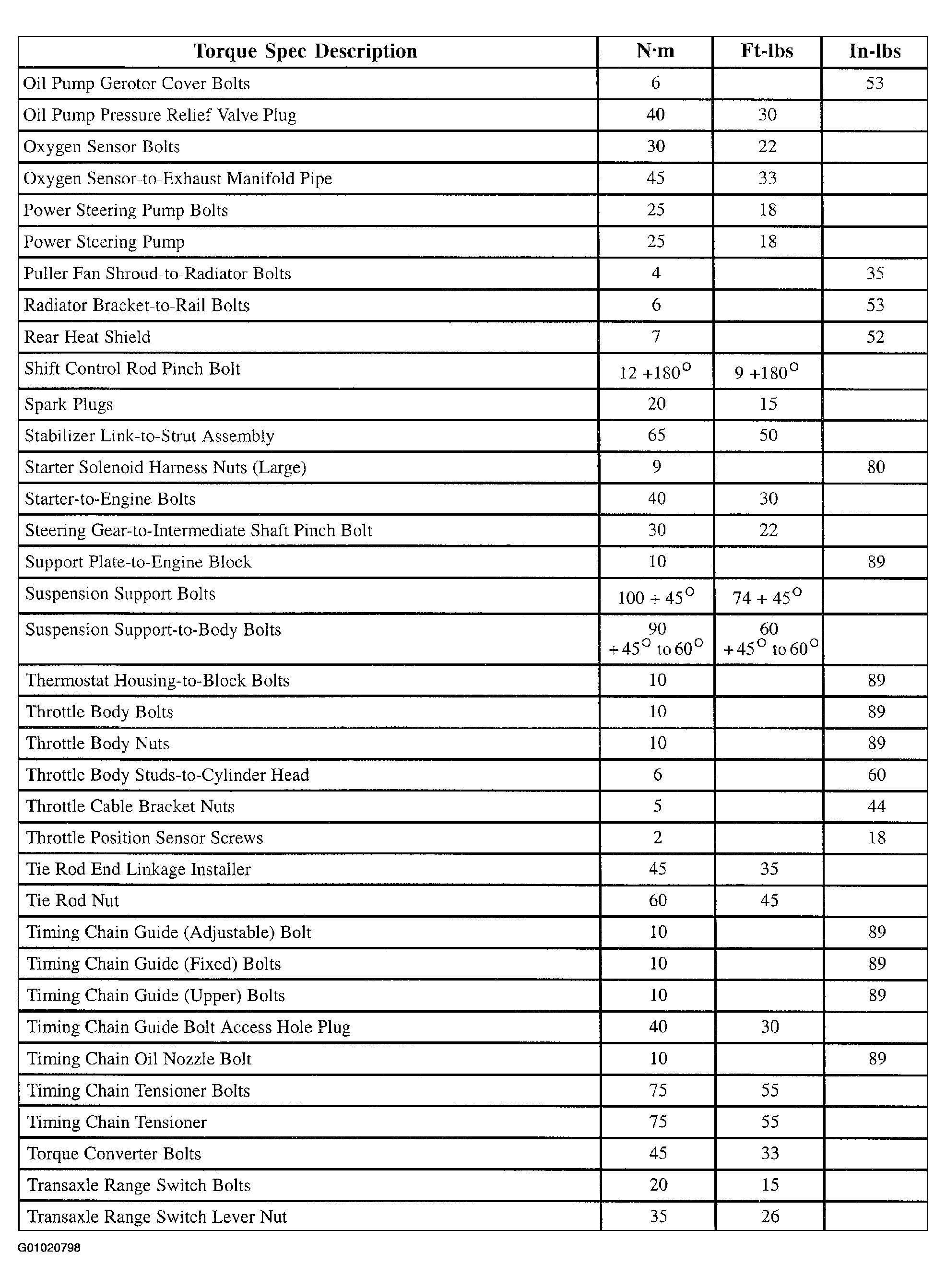

Fig 4: Engine Torque Specifications (4 Of 5)
G01020798Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Torque Specifications (5 Of 5)
G01020799Courtesy of GENERAL MOTORS CORP.
