Connector Identification

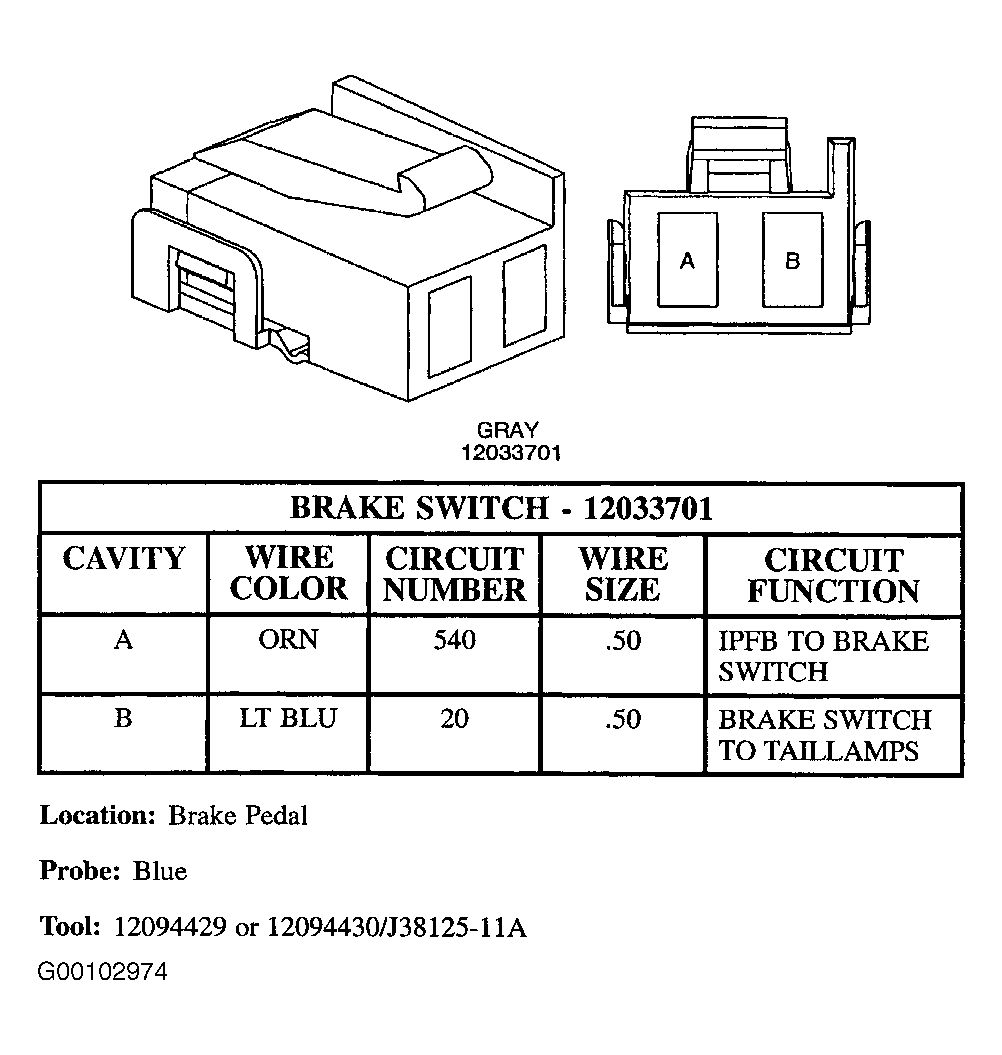

Fig 1: Identifying Stoplamp Switch Harness Connector Terminals
G00102974Courtesy of GENERAL MOTORS CORP.

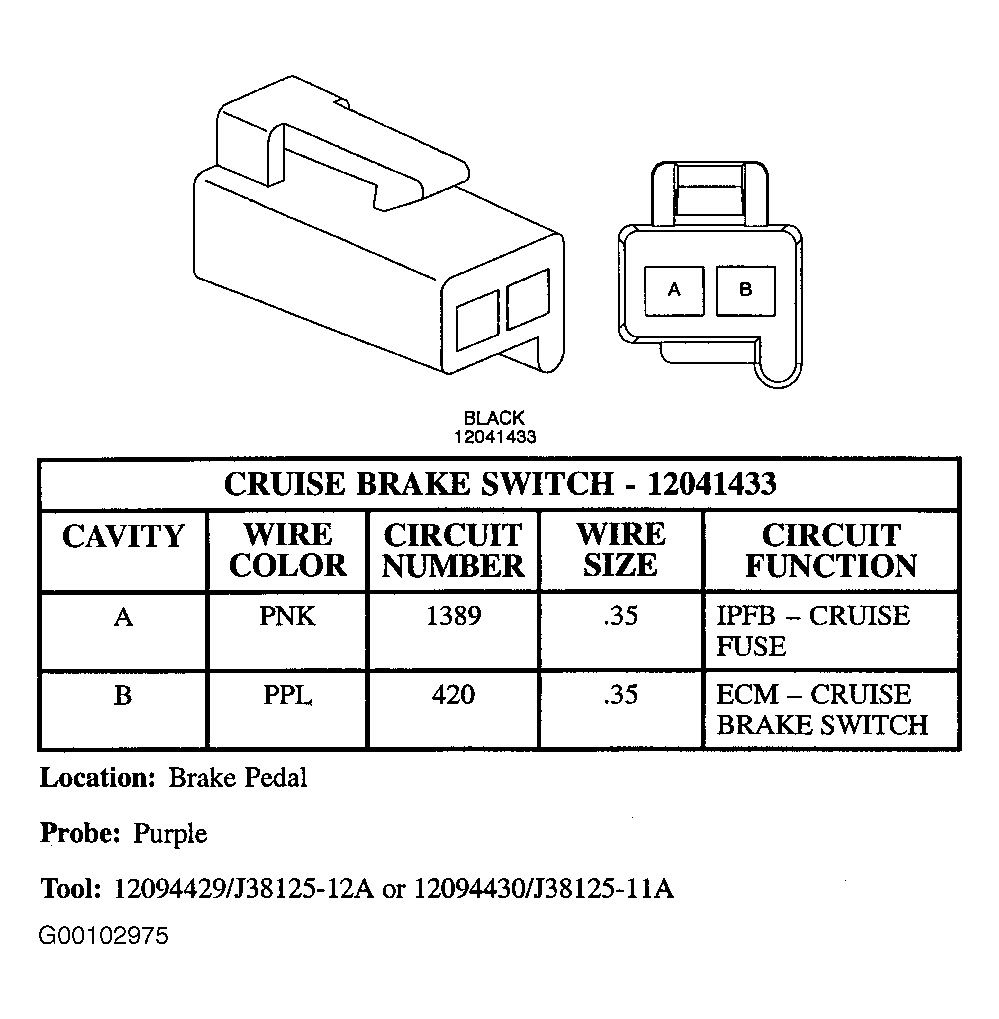

Fig 2: Identifying Cruise/Brake Switch Harness Connector Terminals
G00102975Courtesy of GENERAL MOTORS CORP.

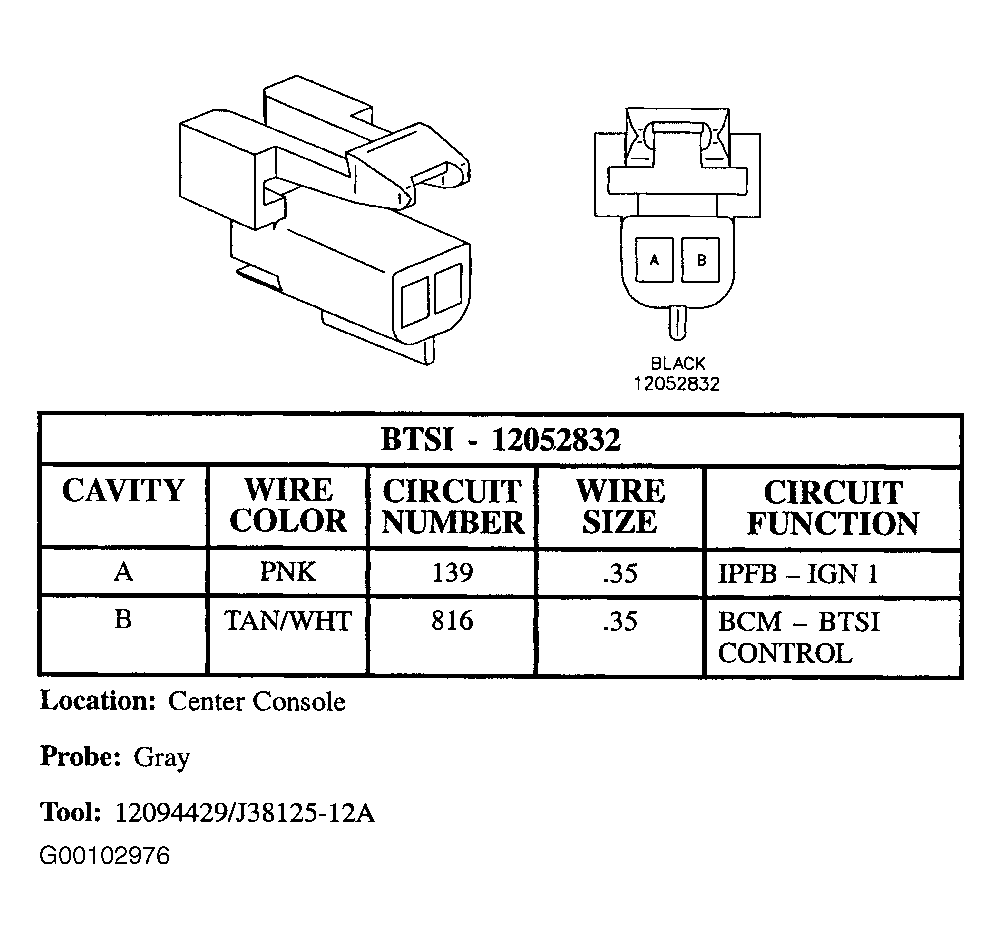

Fig 3: Identifying BTSI Solenoid Harness Connector Terminals
G00102976Courtesy of GENERAL MOTORS CORP.

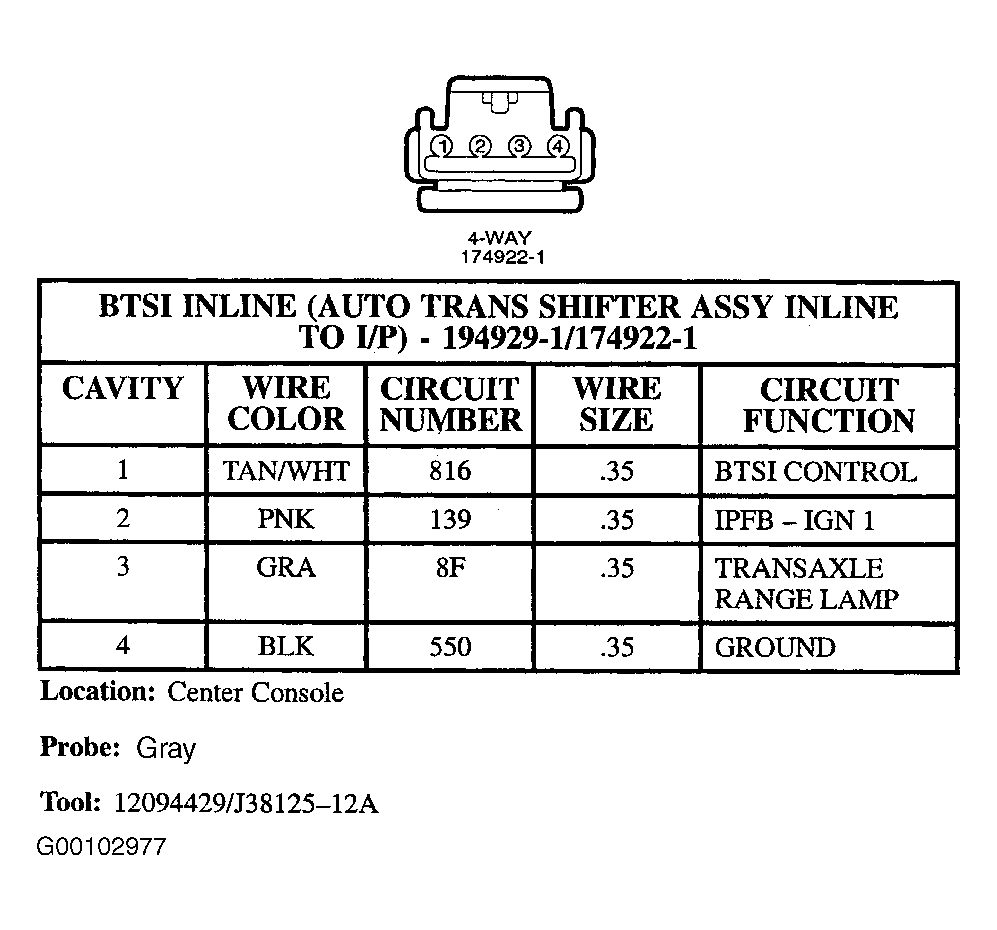

Fig 4: Identifying BTSI System In-Line Harness Connector Terminals
G00102977Courtesy of GENERAL MOTORS CORP.
