Brake Modulator Assembly Replacement: Notes
CAUTION:
Refer to BRAKE FLUID IRRITANT CAUTION
in Cautions and Notices.
NOTE:
Refer to BRAKE FLUID EFFECTS ON PAINT & ELECTRICAL COMPONENTS NOTICE
in Cautions and Notices.
NOTE:
Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.
NOTE:

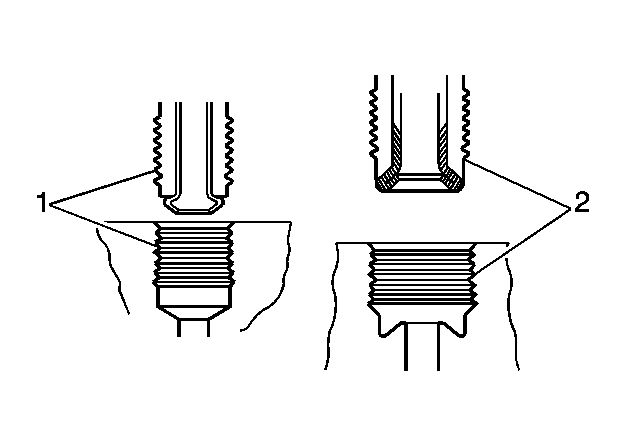

There is a first design and second design of brake pipe flare for the hydraulic brake pipes and system components used on this vehicle. Do NOT mis-match flare types. If the flare types are mis-matched, damage to the pipes and/or components, and/or a brake fluid leak may occur.
- First design, ISO flare (1)
- Second design, double inverted flare (2)
