Home >> Saturn >> 2003 >> Ion 1 Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Repair Instructions >> Traction Control Switch Replacement >> Installation Procedure

Installation Procedure

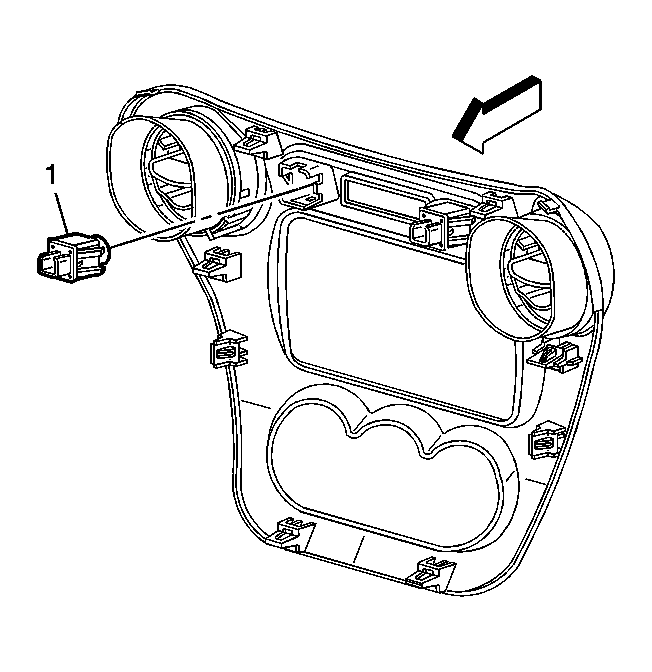

    Fig 1: View Of Traction Control Switch
    GM891945Courtesy of GENERAL MOTORS CORP.
  1. Install the traction control switch (1) to the accessory trim plate. Ensure that the retaining tabs are fully engaged.
  2. Install the instrument panel (I/P) accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages and Console.
