Horns Component Views

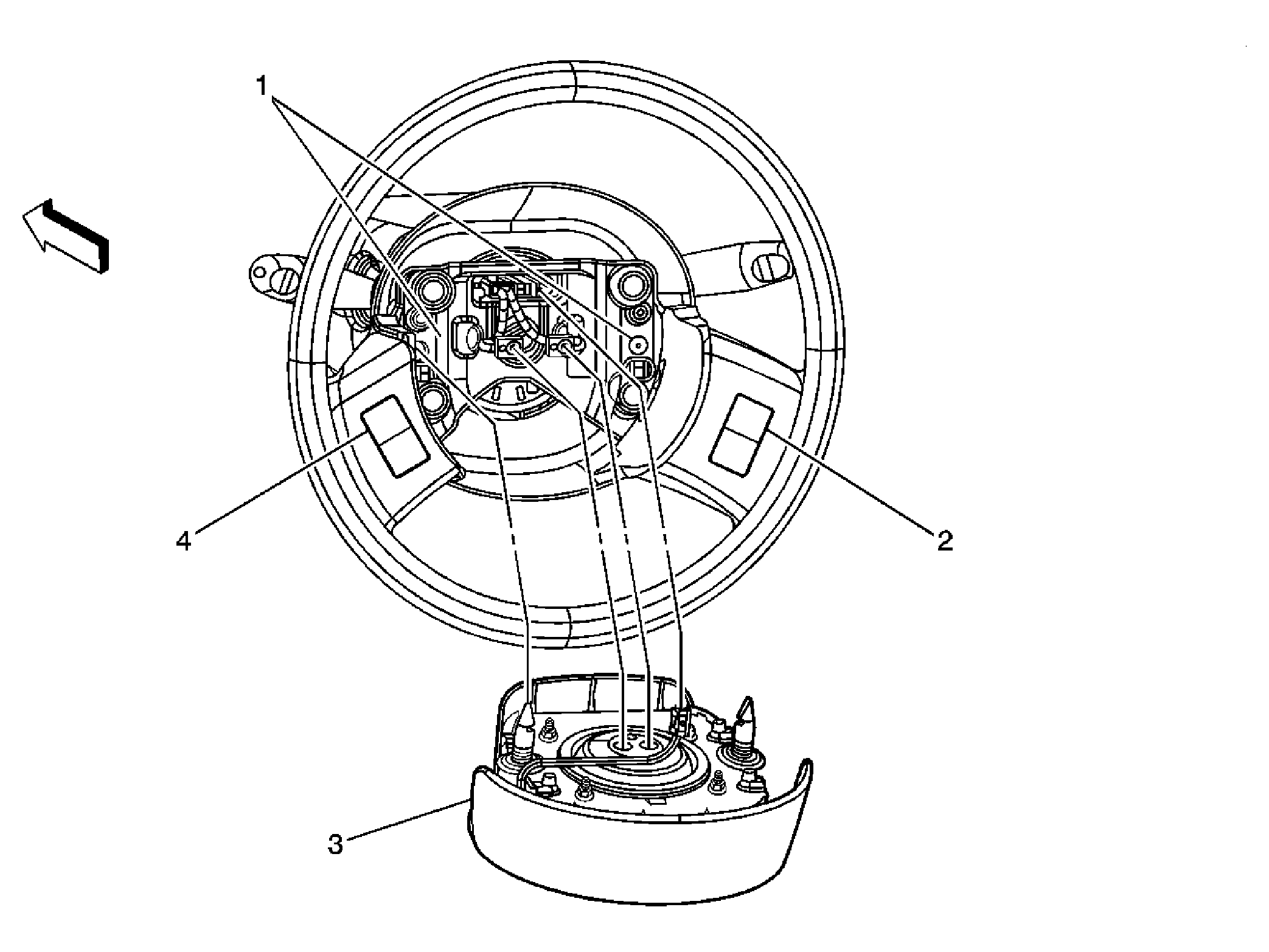

Fig 1: Steering Wheel Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Steering Wheel Controls - Right (K34)
3	Inflatable Restraint Steering Wheel Module
4	Steering Wheel Controls - Left (K34)

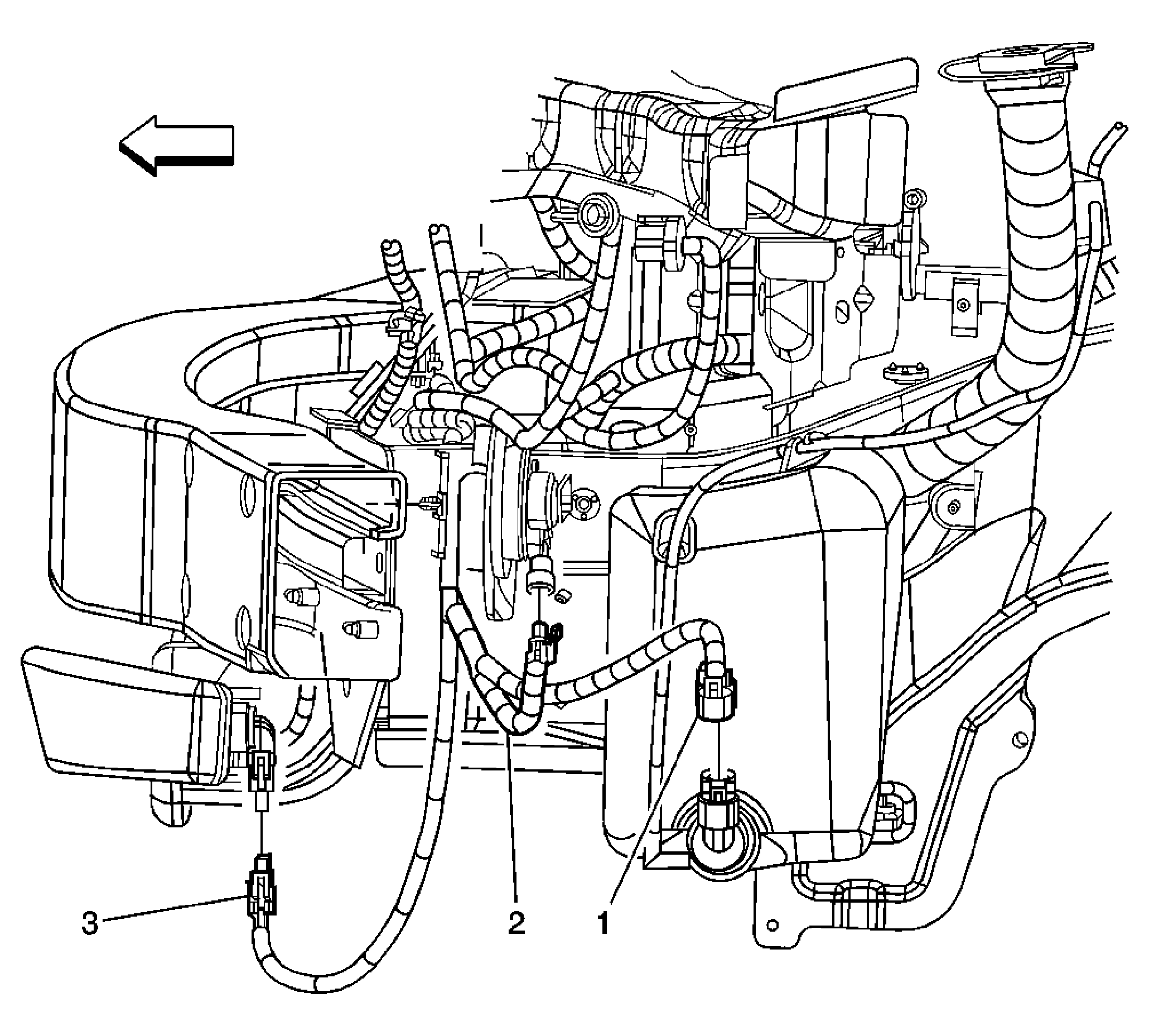

Fig 2: Left Front Side Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Horn
3	Fog Lamp - LF
