Saturn
>>
2003
>>
Ion 1 Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Self-Diagnostics
>>
Connector Identification
Connector Identification

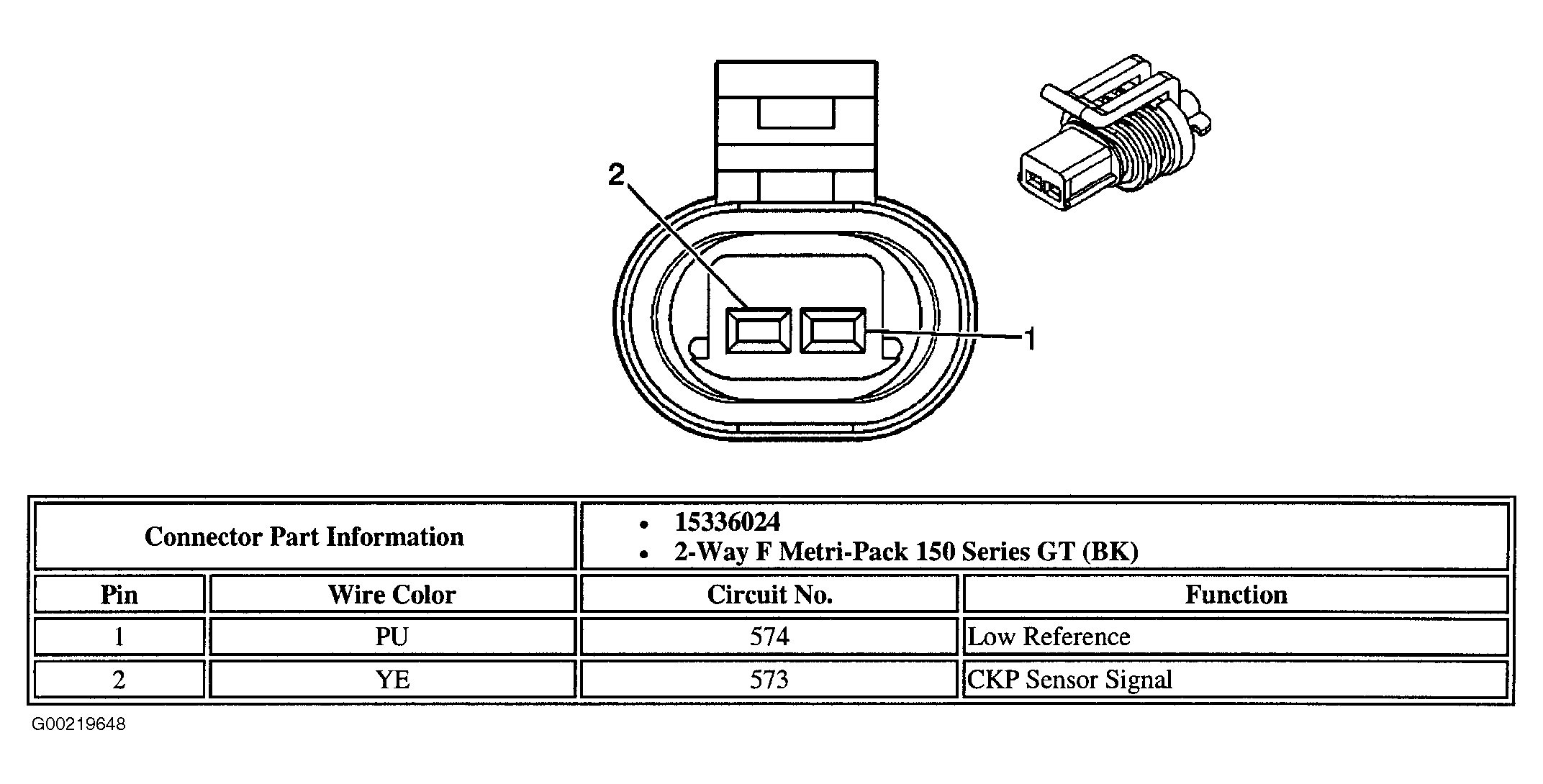

Fig 1: Identifying Crankshaft Position Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

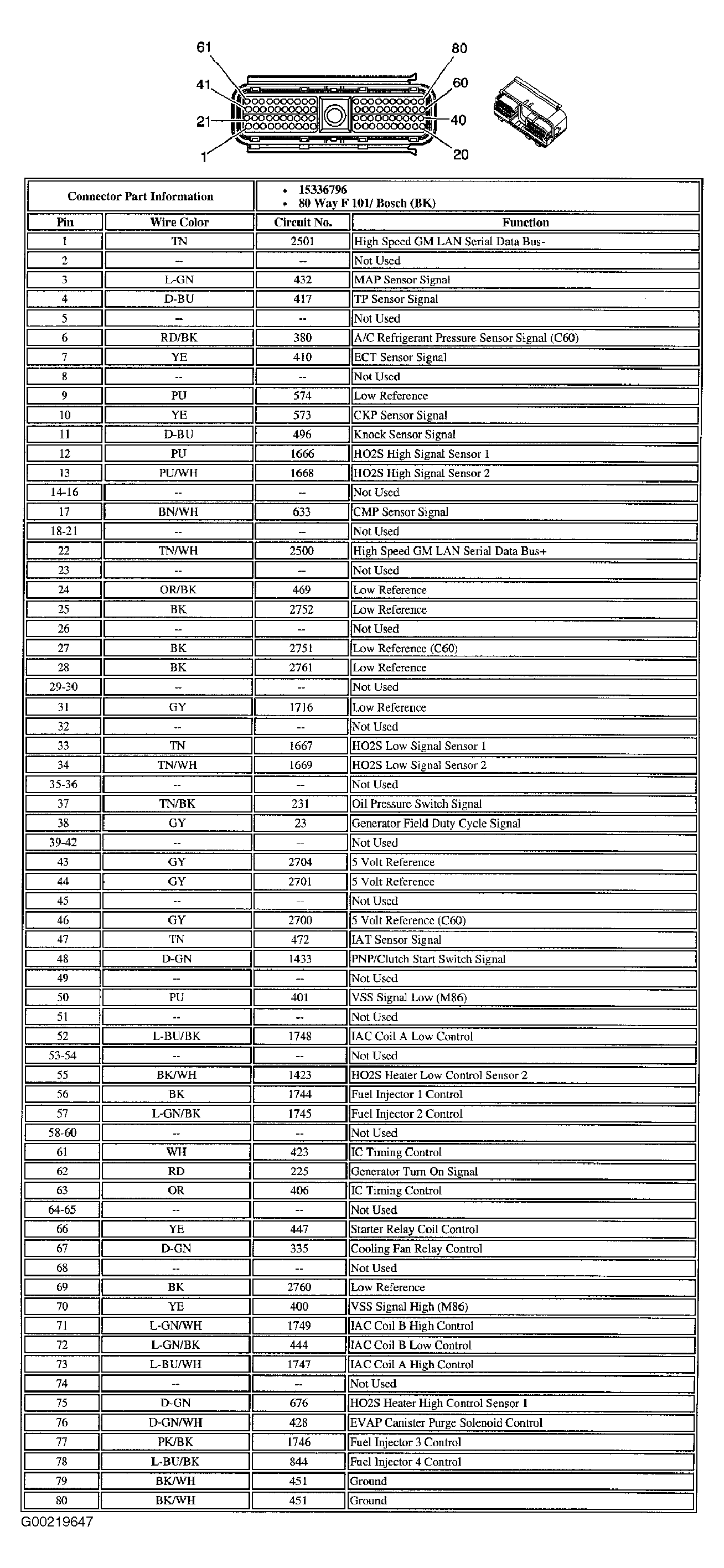

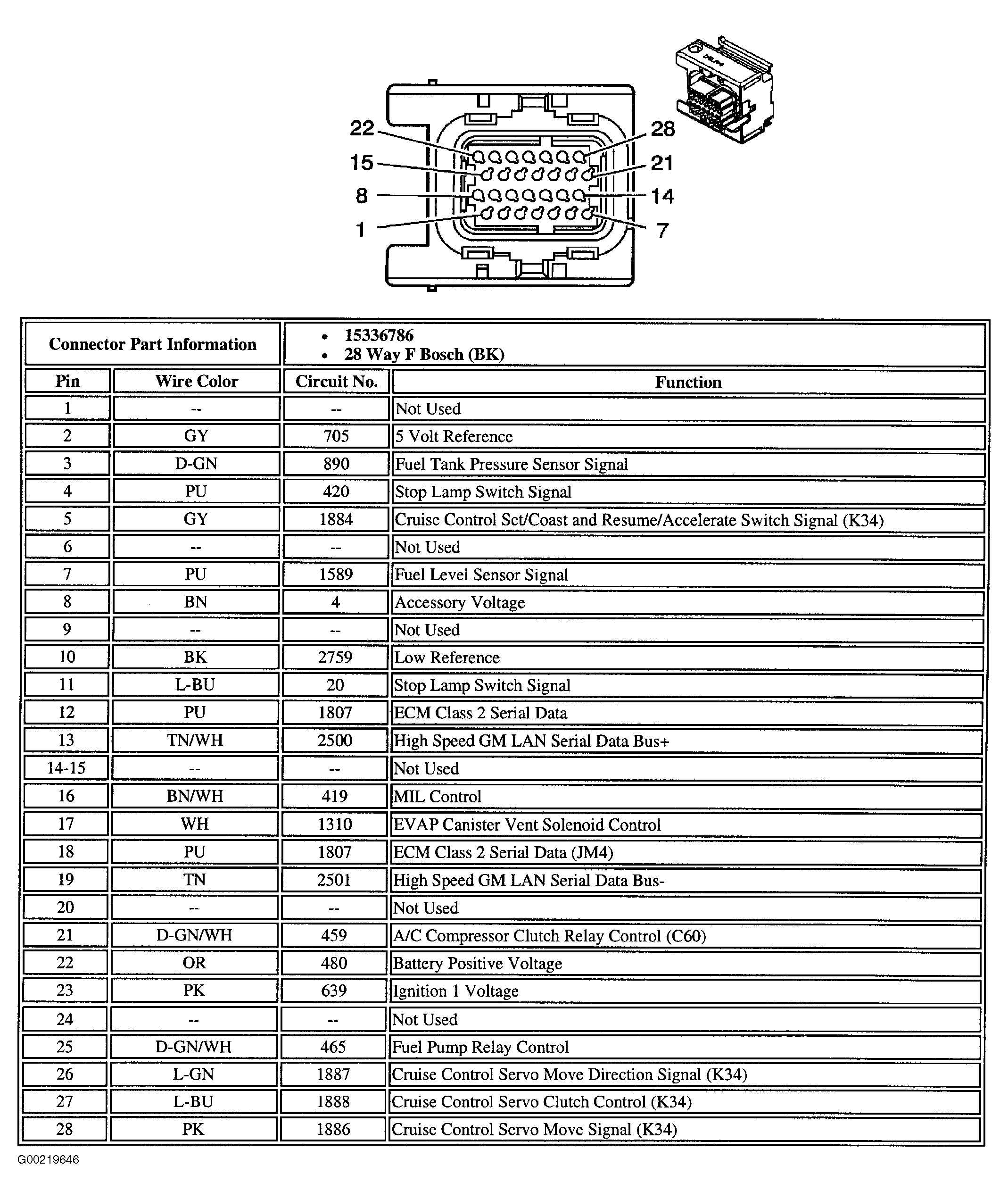

Fig 2: Identifying ECM C1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying ECM C2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying ECT Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

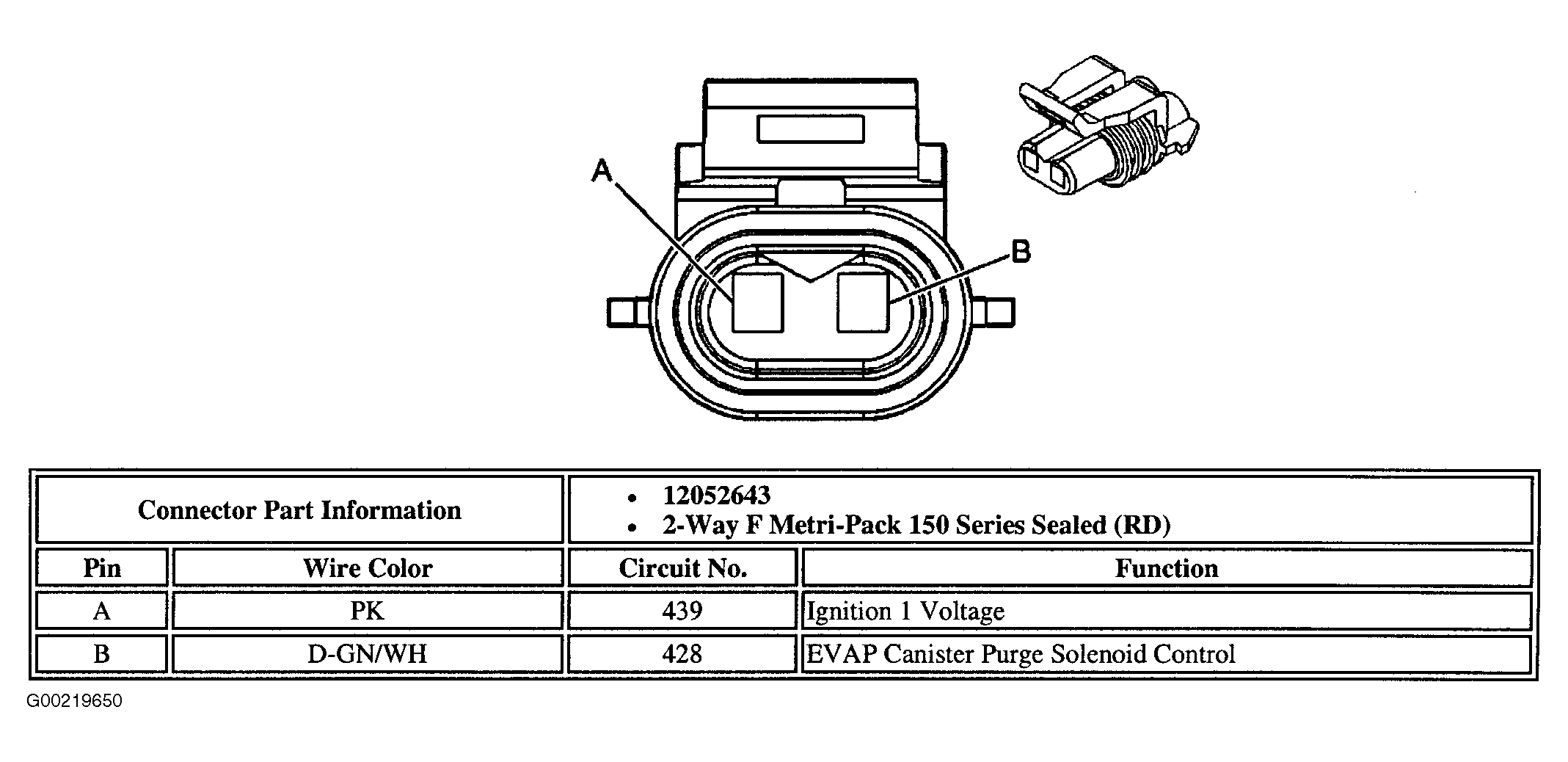

Fig 5: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

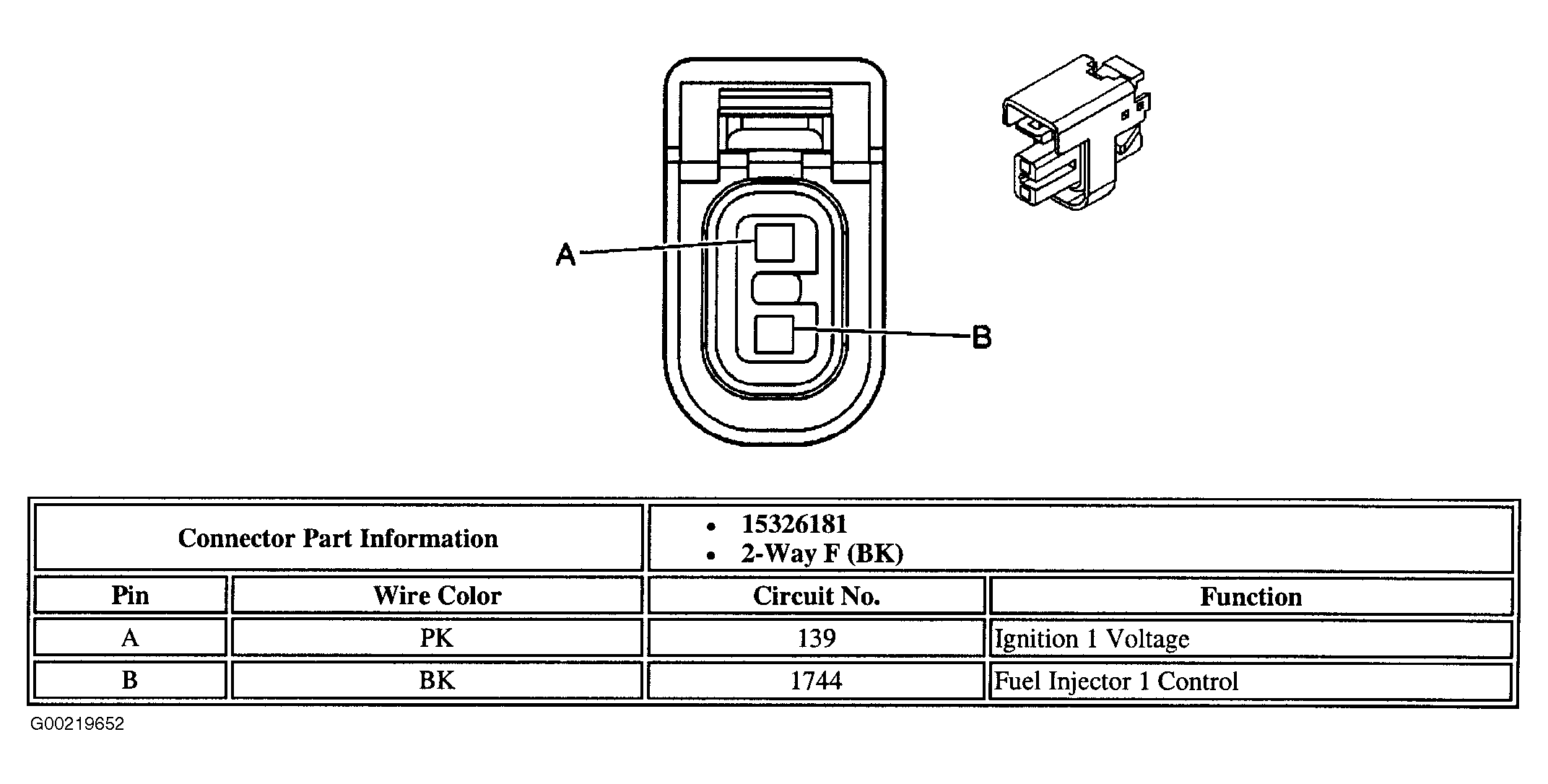

Fig 7: Identifying Fuel Injector No. 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

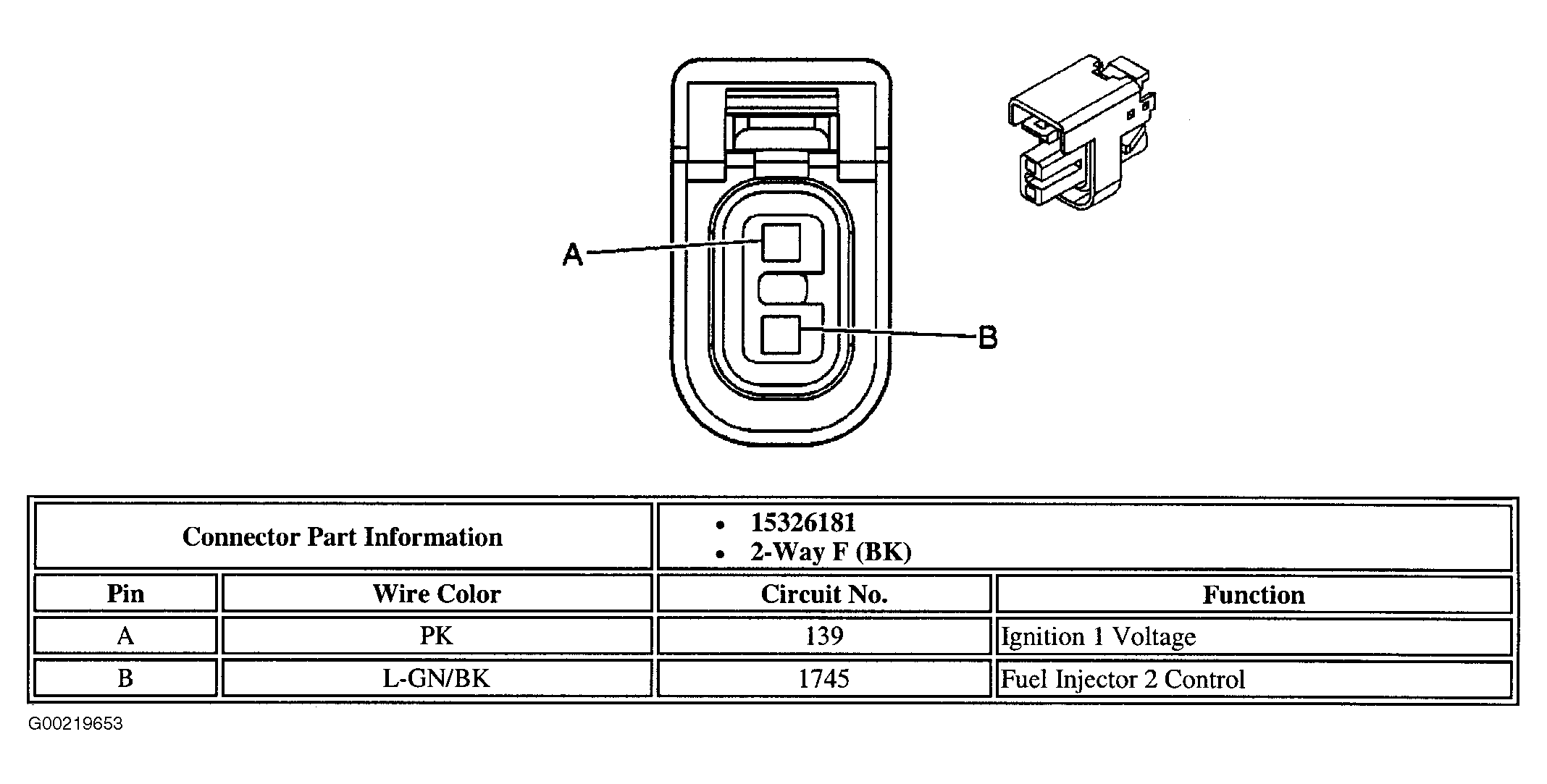

Fig 8: Identifying Fuel Injector No. 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

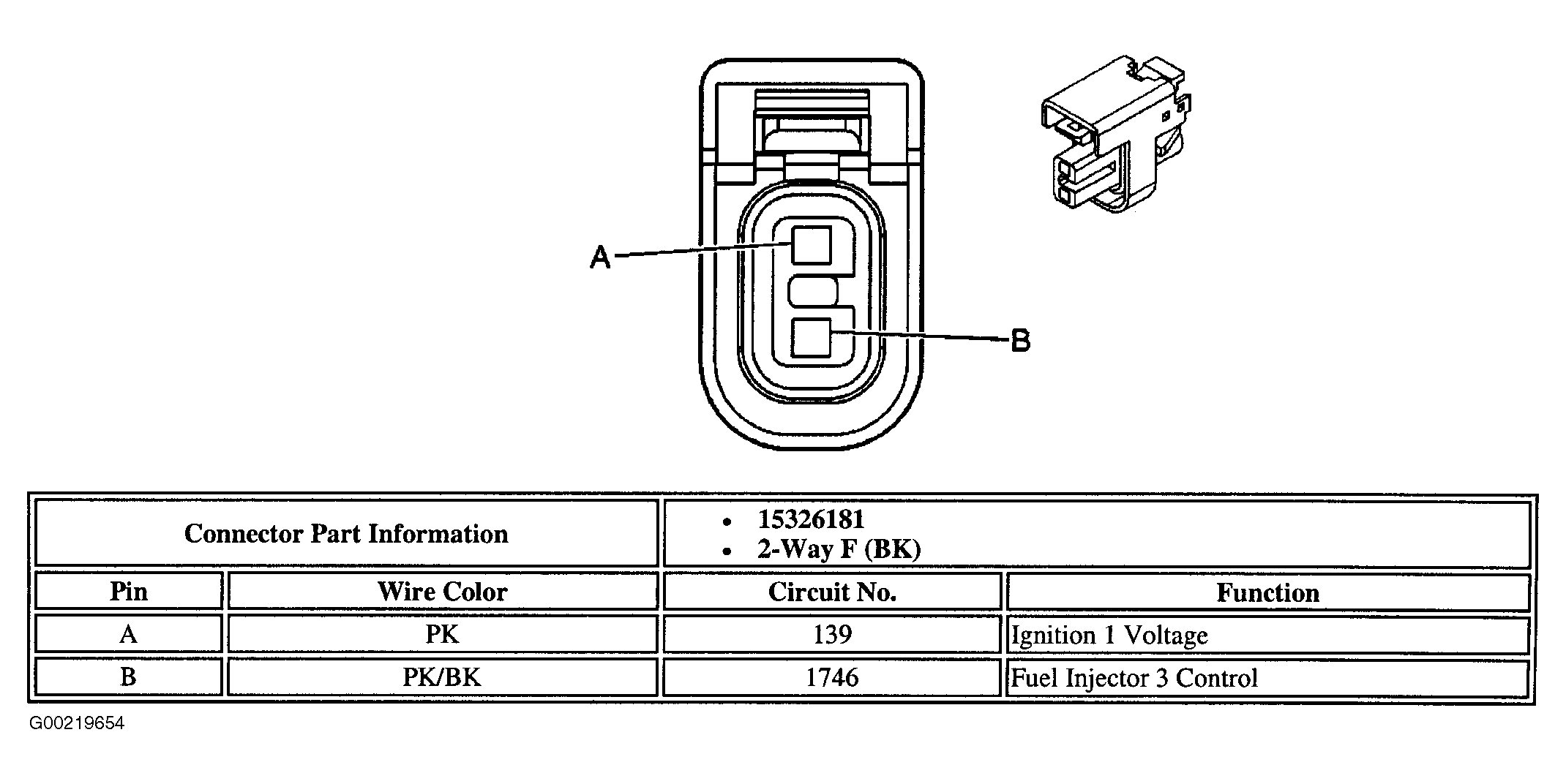

Fig 9: Identifying Fuel Injector No. 3 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

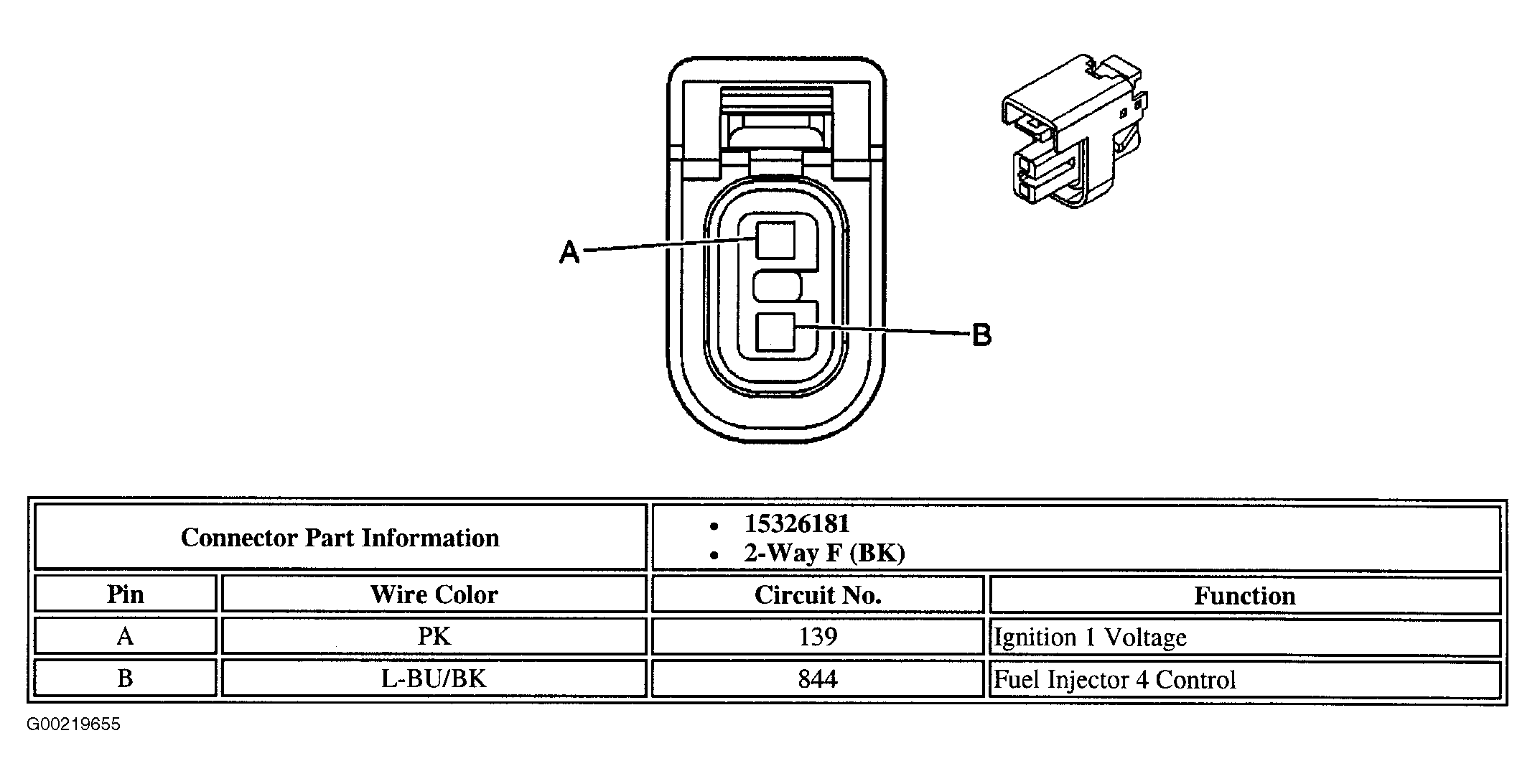

Fig 10: Identifying Fuel Injector No. 4 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

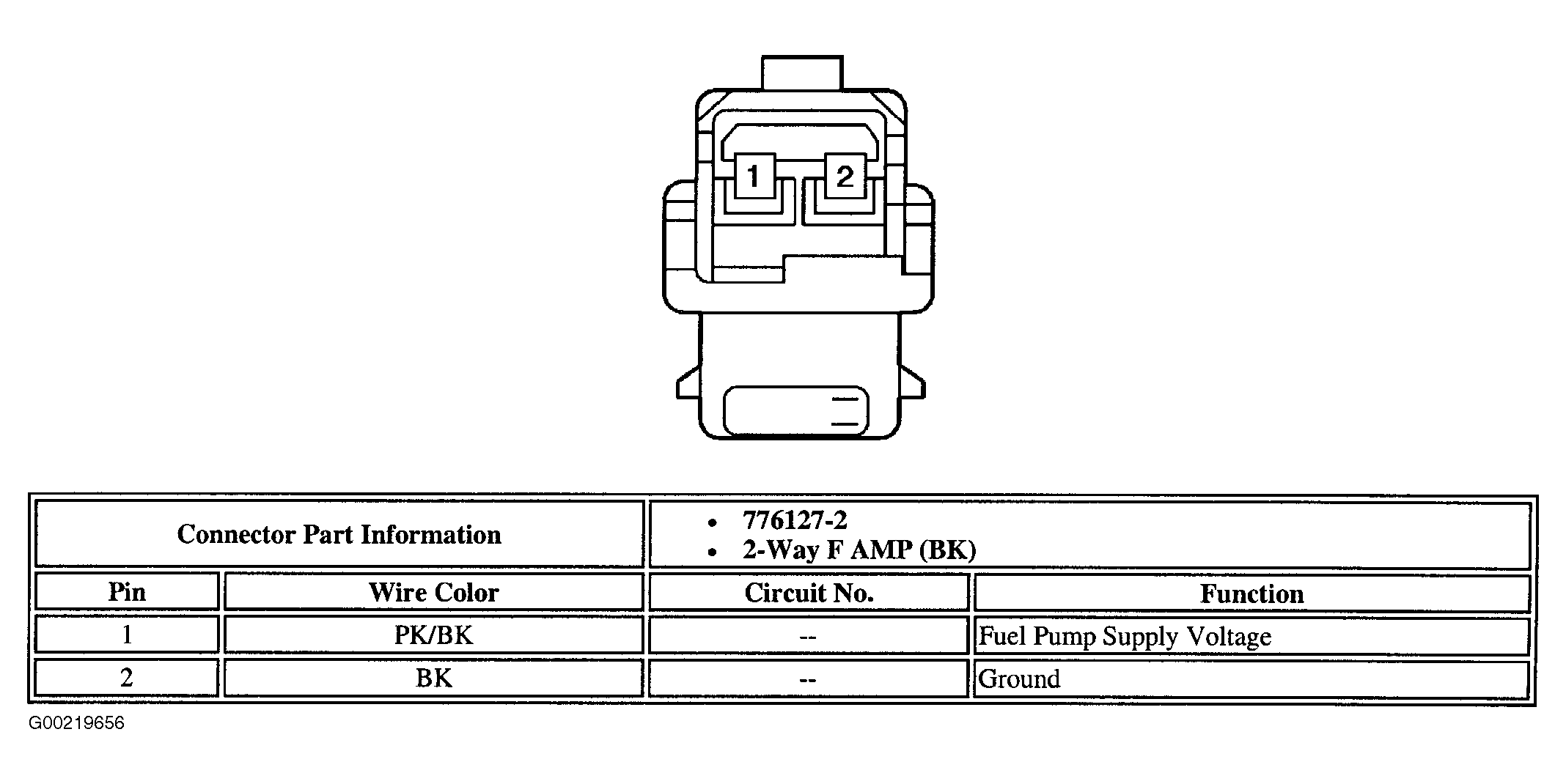

Fig 11: Identifying Fuel Pump Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

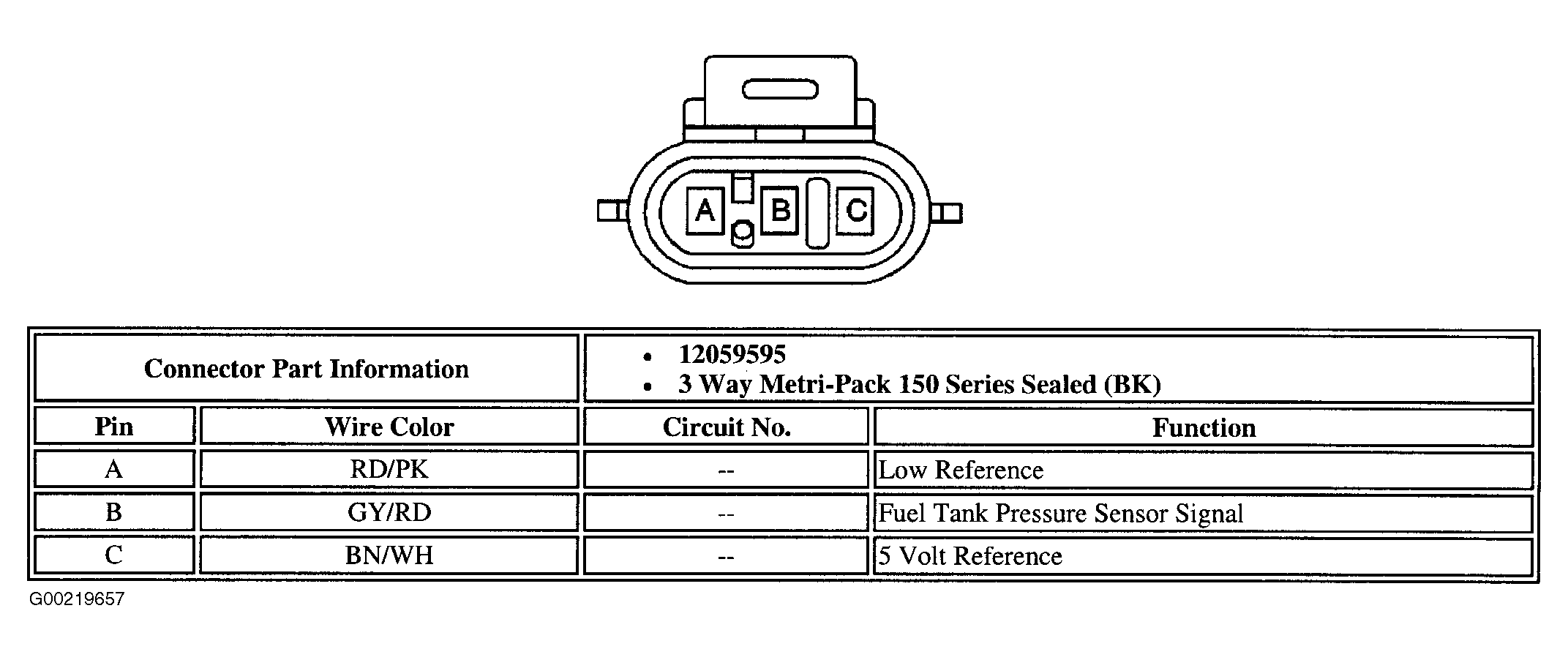

Fig 12: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

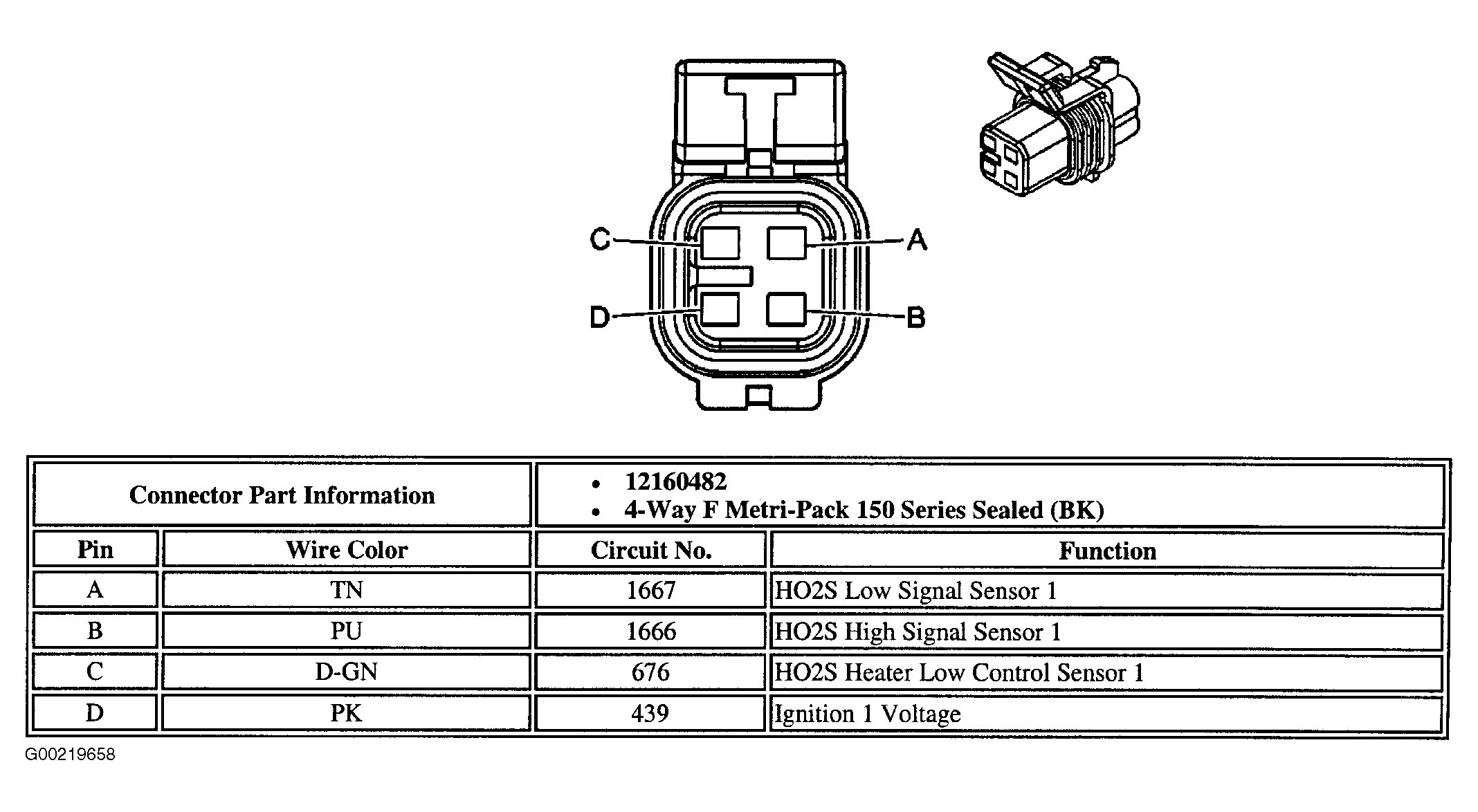

Fig 13: Identifying HO2S 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

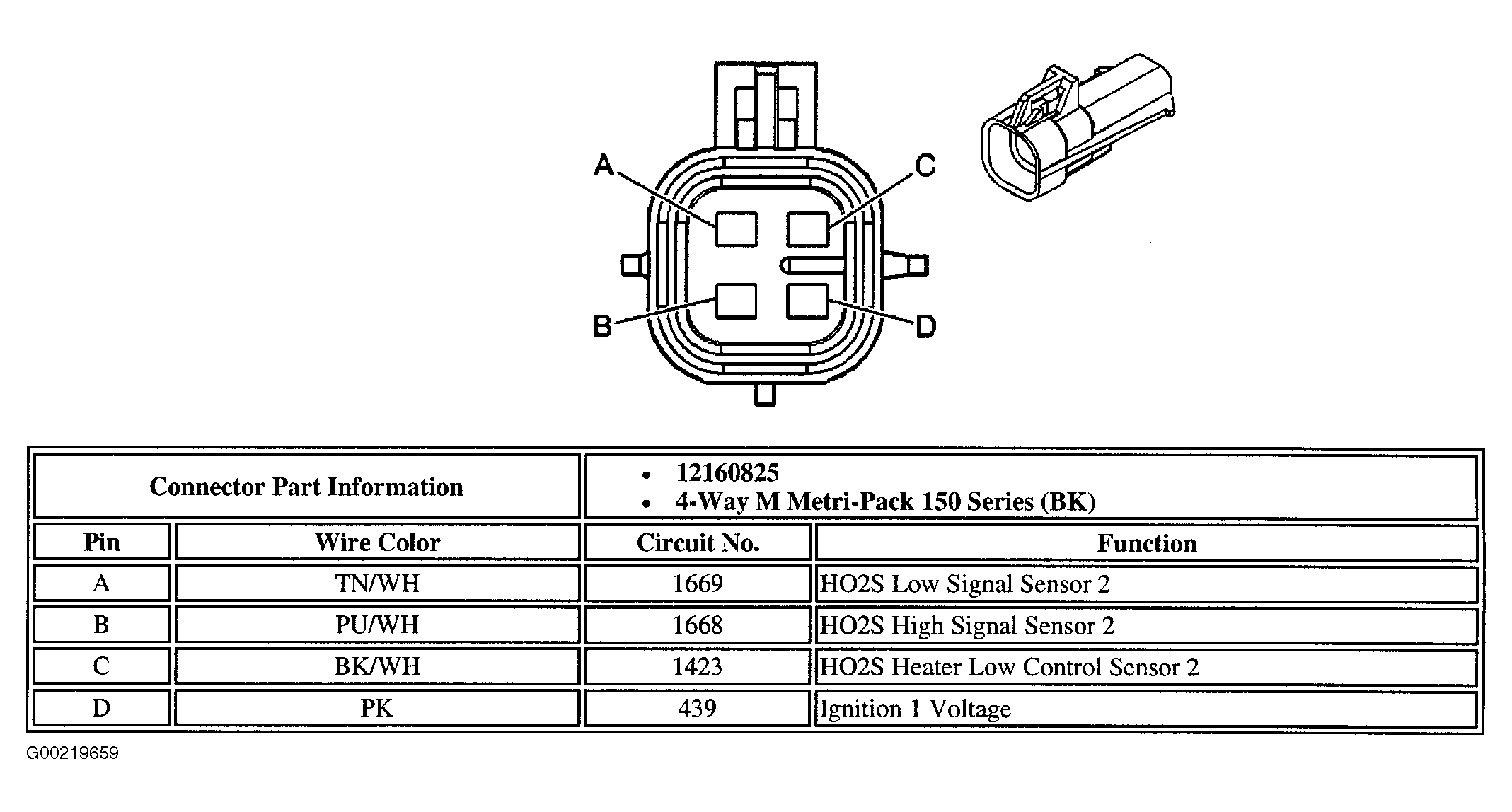

Fig 14: Identifying HO2S 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

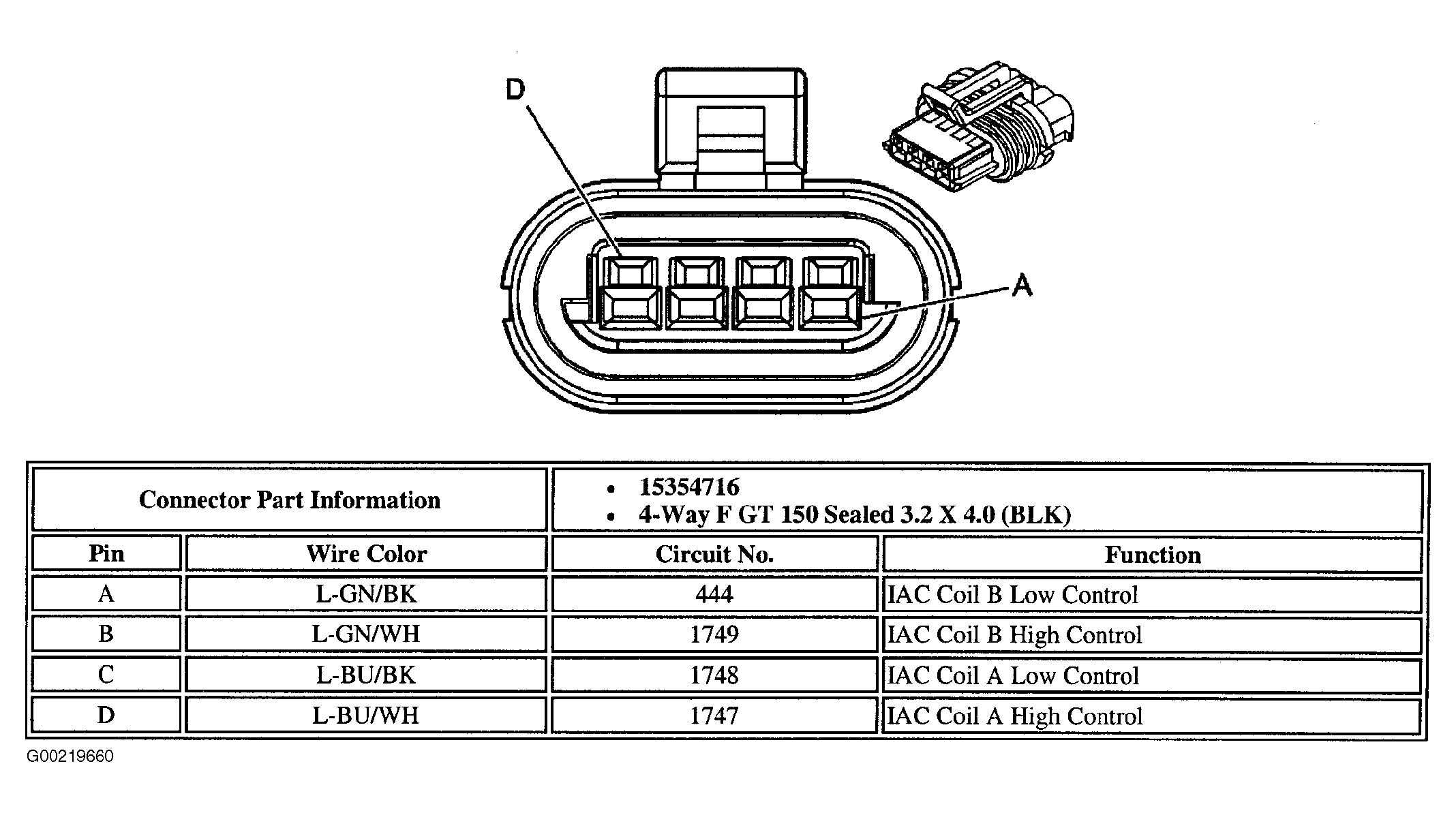

Fig 15: Identifying IAC Valve Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

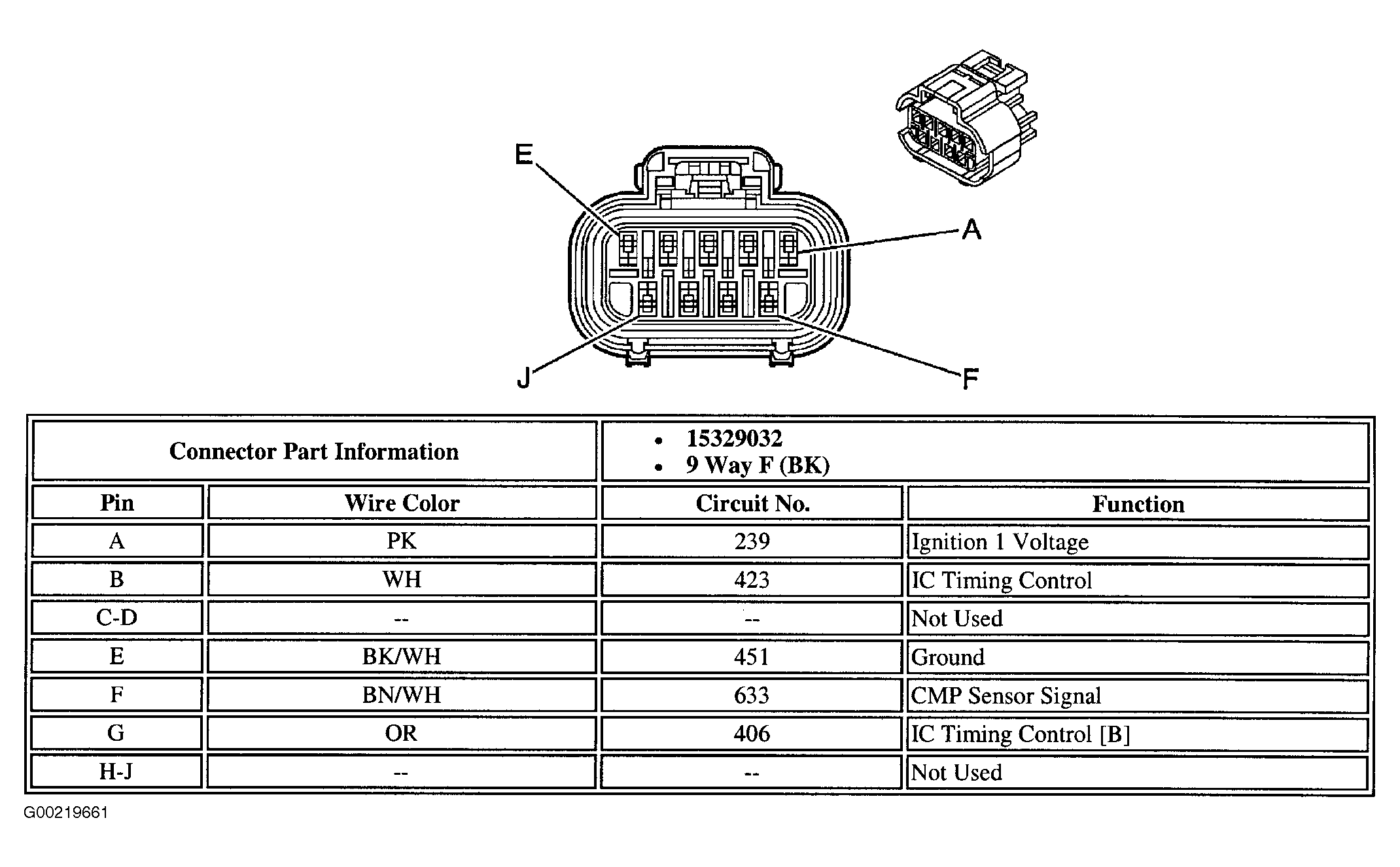

Fig 16: Identifying Ignition Control Module Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

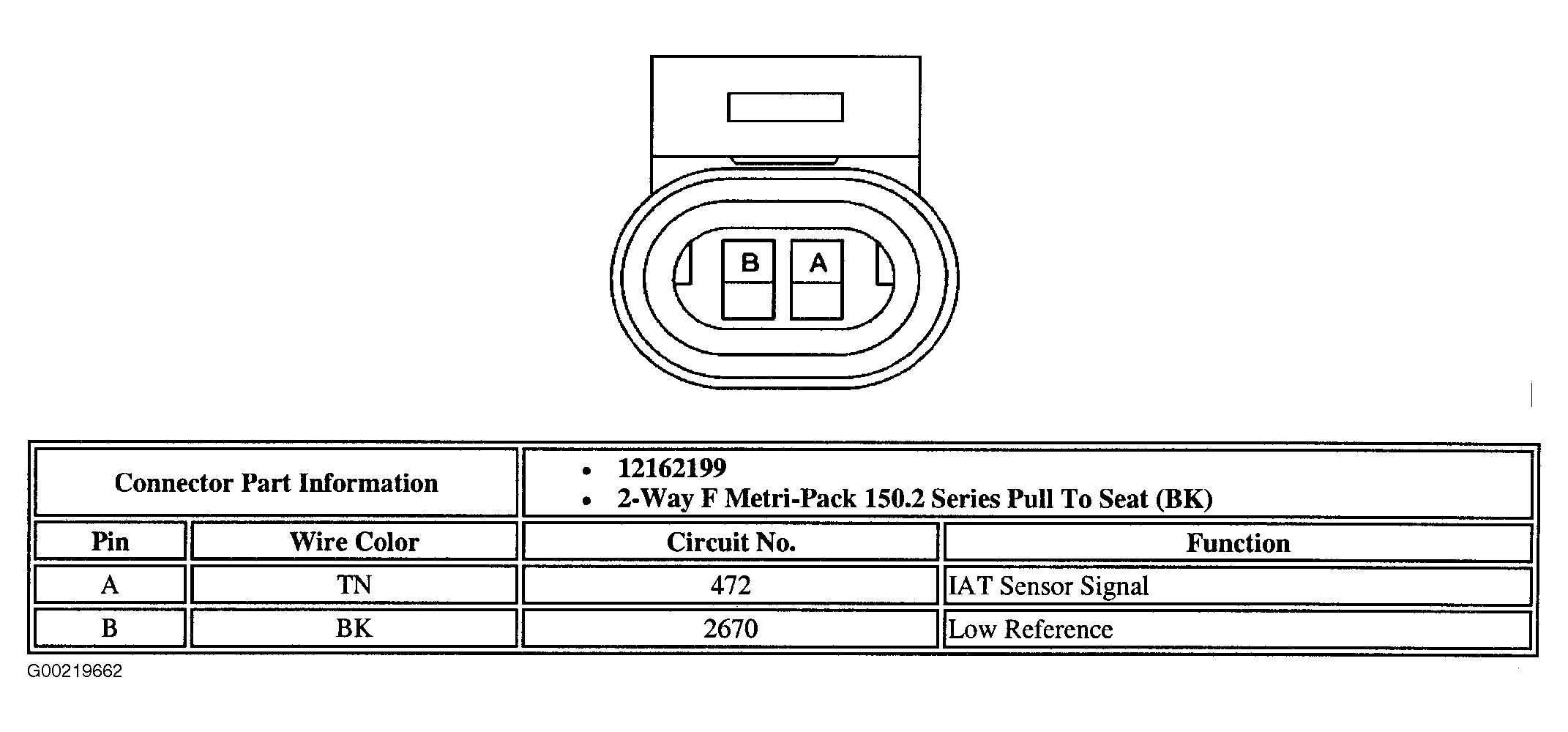

Fig 17: Identifying Intake Air Temperature Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

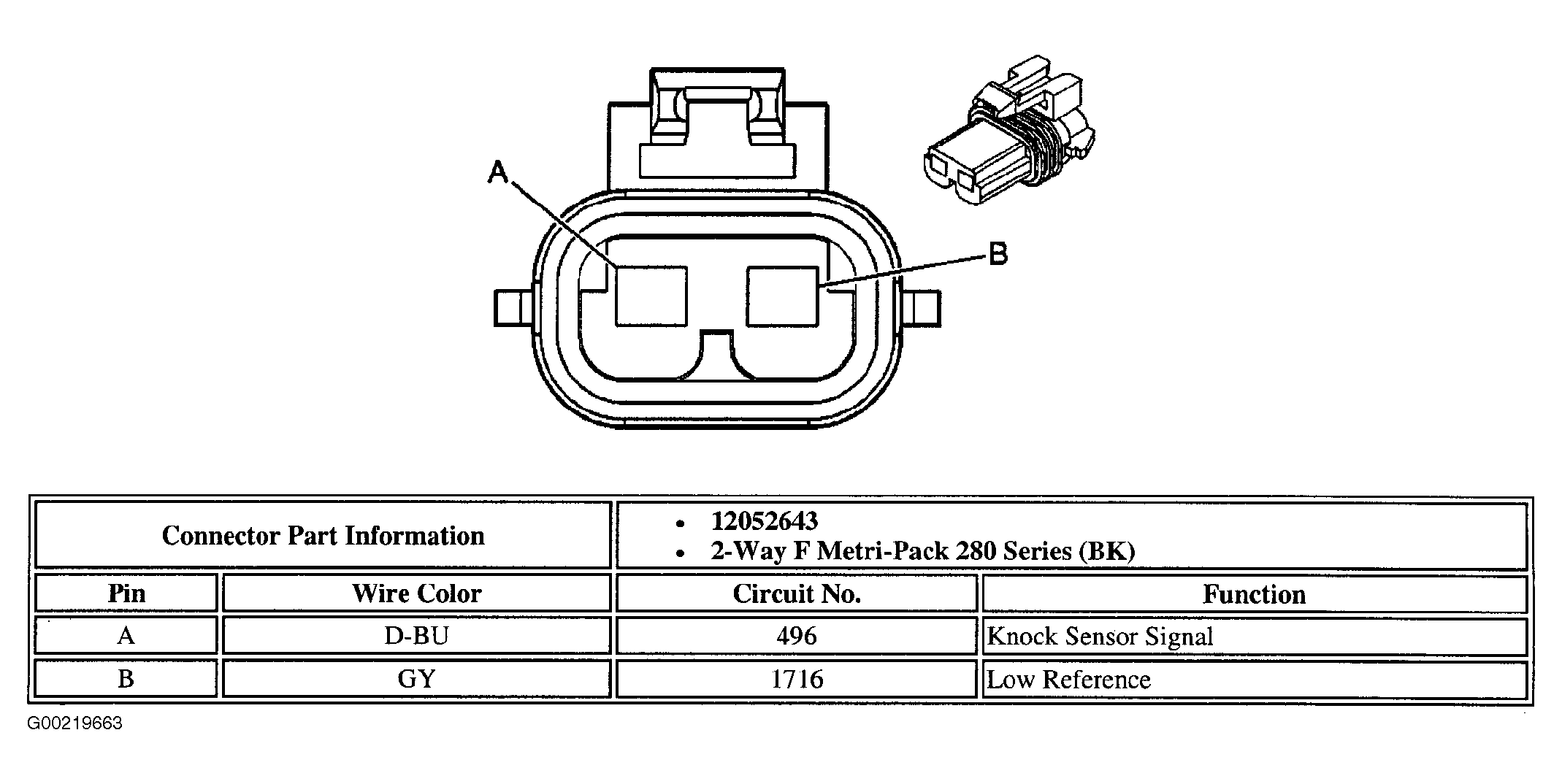

Fig 18: Identifying Knock Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

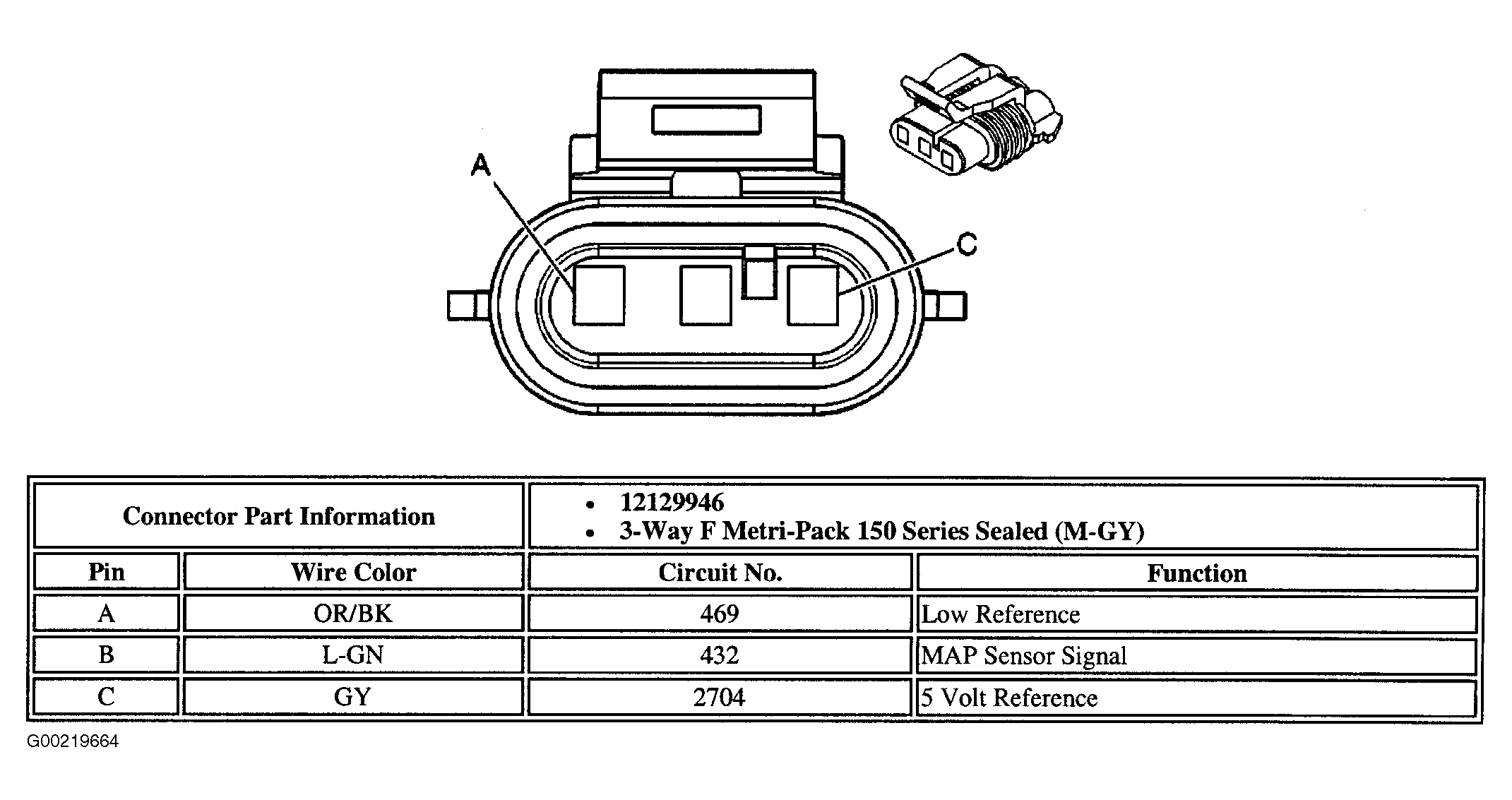

Fig 19: Identifying MAP Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

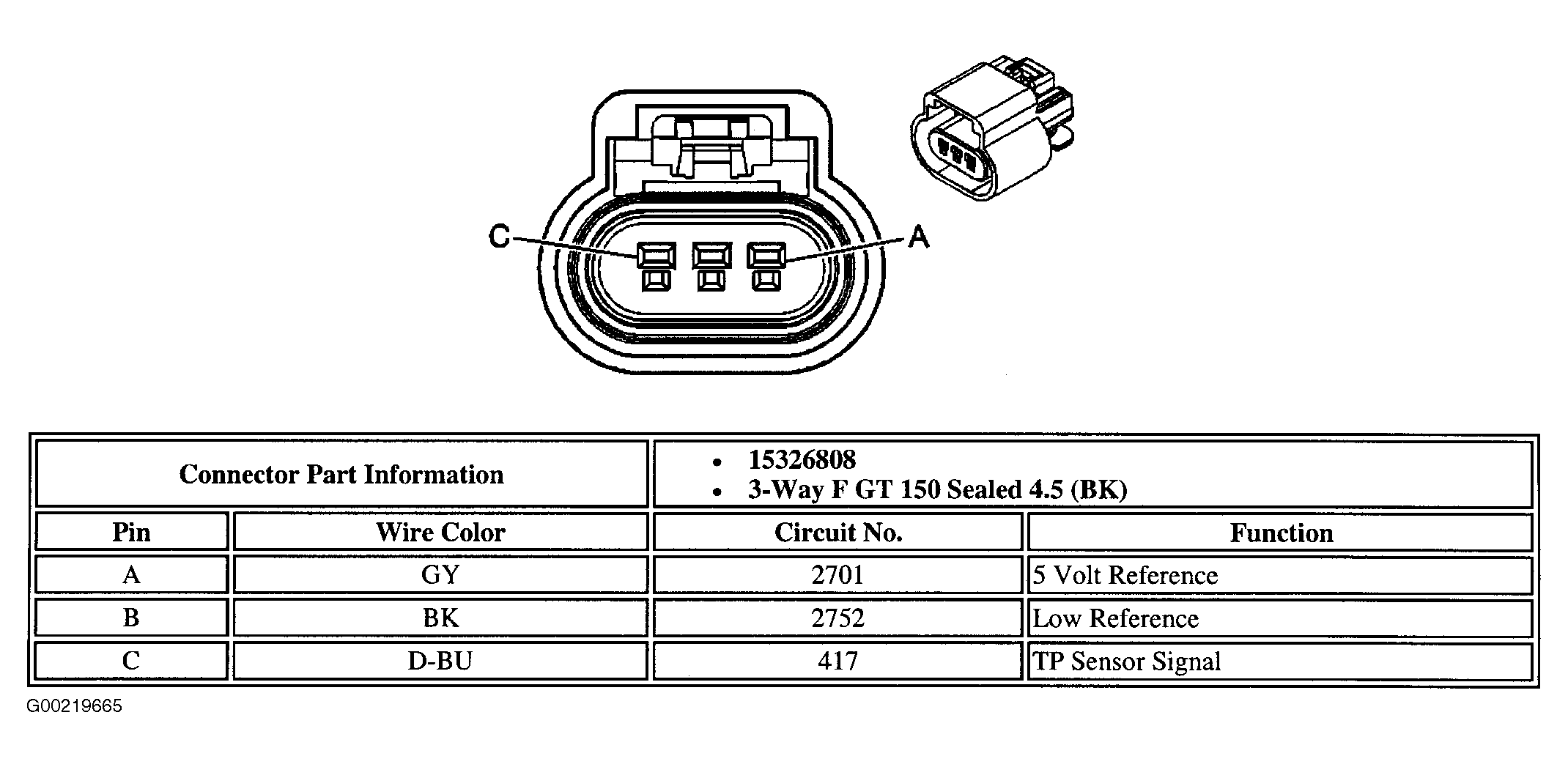

Fig 20: Identifying TP Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
