Input Speed Sensor Installation

  1. Apply automatic transmission fluid to the new input speed sensor O-ring seal (71).
  2. Install the new input speed sensor O-ring seal (71) onto the input speed sensor (73).
  3. Install the input speed sensor (73) into the transmission case assembly (17).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the M6 x 1.0 x 16 mm input speed sensor bolt (72).

    Tighten

    Tighten the input speed sensor bolt (72) to 3.9-6.9 N.m (34.5-61.0 lb in).

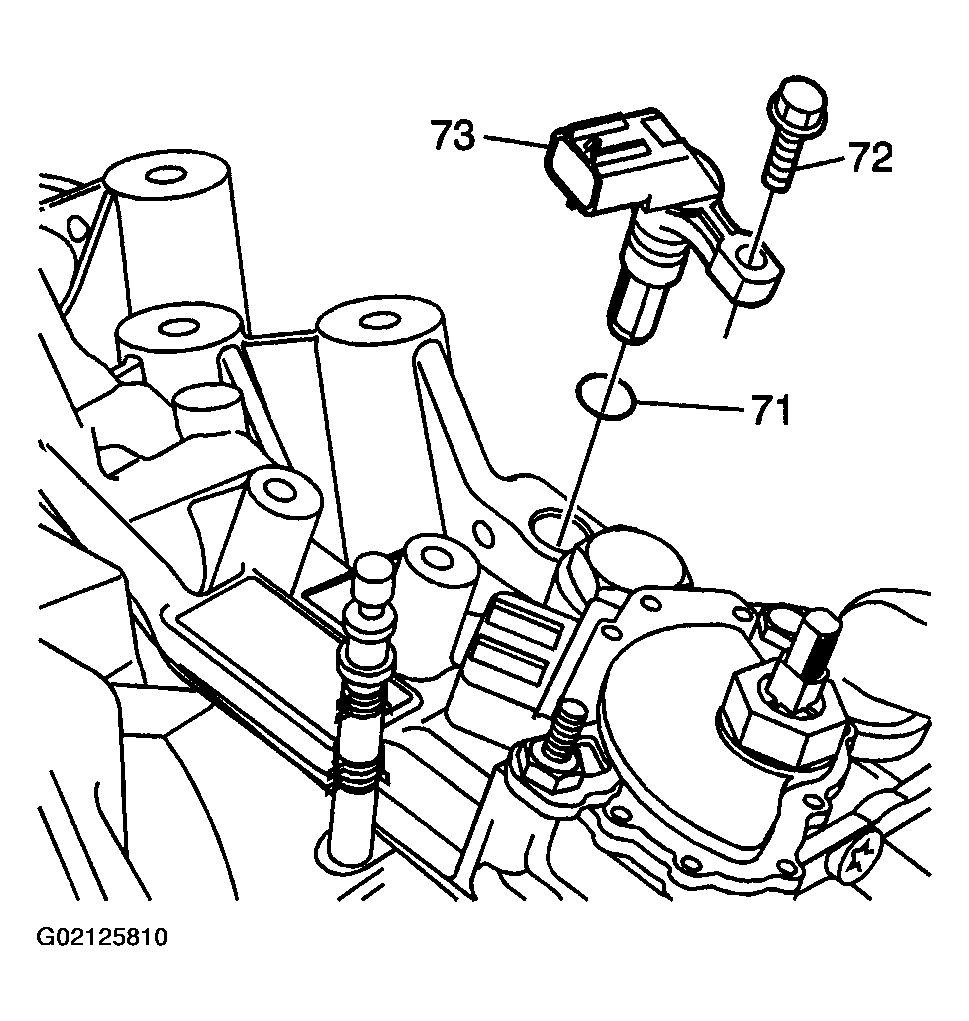

    Fig 1: Installing Input Speed Sensor, O-Ring Seal & Bolt
    G02125810Courtesy of GENERAL MOTORS CORP.
