Engine Block - Front View

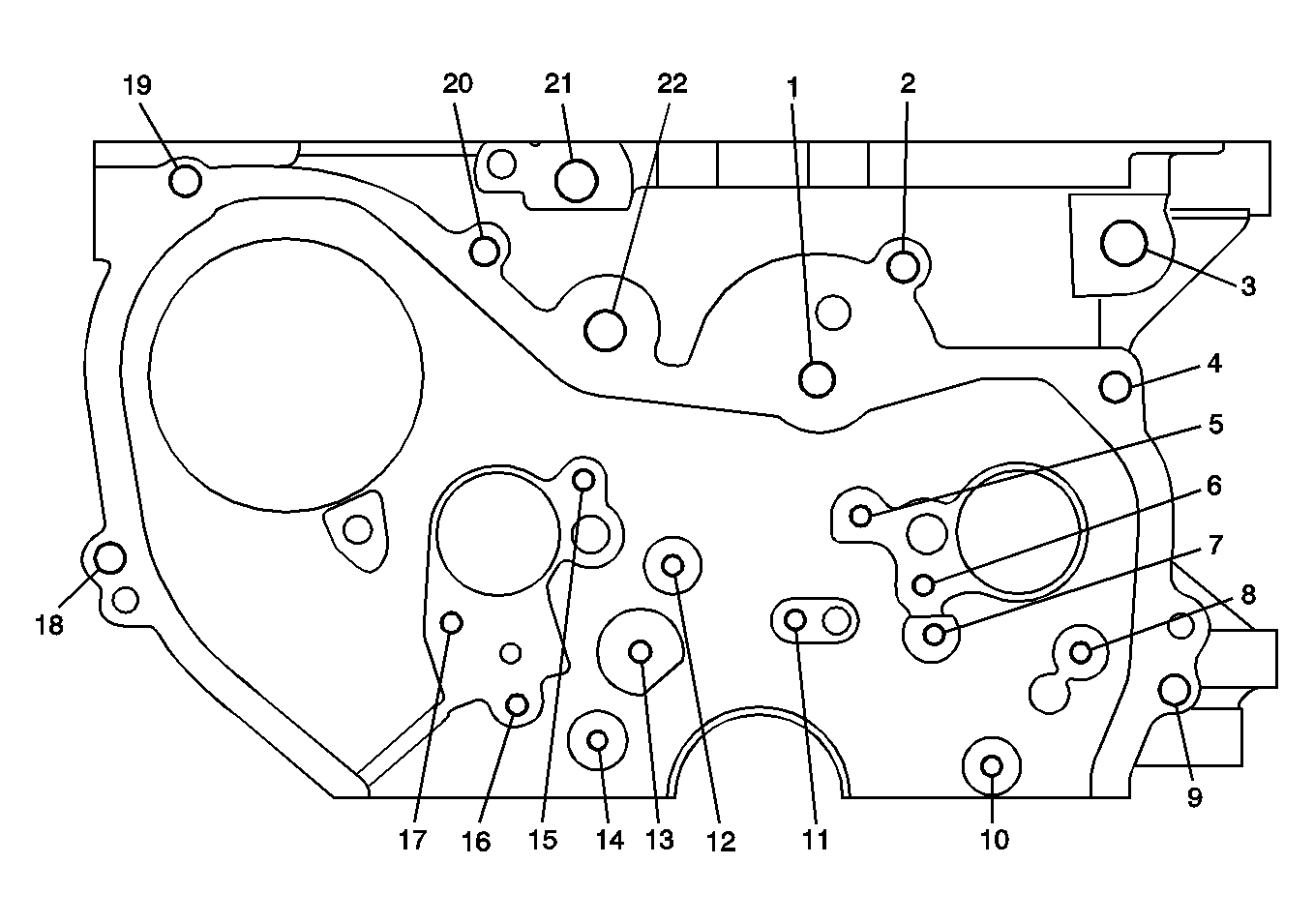

Fig 1: Engine Block - Front View
GM524532Courtesy of GENERAL MOTORS CORP.
Engine Block - Front View

Service Call Out Thread Size Insert Drill Counterbore Tool Tap Driver Drill Depth (Maximum) Tap Depth (Maximum) Engineering Hole Number
J 42385- MM (IN) MM (IN) -
1 M10 x 1.5 215 211 212 213 214 24.5 0.96 19.5 0.77 117
2 M8 x 1.25 210 206 207 208 209 23.5 0.93 18.5 0.73 109
3 M12 x 1.75 855 856 857 858 859 33.5 1.32 26.5 1.04 114
4 M8 x 1.25 210 206 207 208 209 23.5 0.93 18.5 0.73 110
5 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 129
6 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 130
7 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 125
8 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 126
9 M8 x 1.25 210 206 207 208 209 25.5 1.00 THRU 111
10 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 127
11 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 122
12 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 128
13 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 124
14 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 123
15 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 131
16 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 119
17 M6 x 1 205 201 202 203 204 20 0.787 16 0.63 120
18 M8 x 1.25 210 206 207 208 209 23.5 0.93 18.5 0.73 106
19 M8 x 1.25 210 206 207 208 209 55 2.17 THRU 112
20 M8 x 1.25 210 206 207 208 209 23.5 0.93 18.5 0.73 108
21 M12 x 1.75 855 856 857 858 859 33.5 1.32 26.5 1.04 116
22 M12 x 1.75 855 856 857 858 859 33.5 1.32 26.5 1.04 115
