Engine Electrical Connector End Views
Generator Connector End View
 Courtesy of GENERAL MOTORS CORP.
|

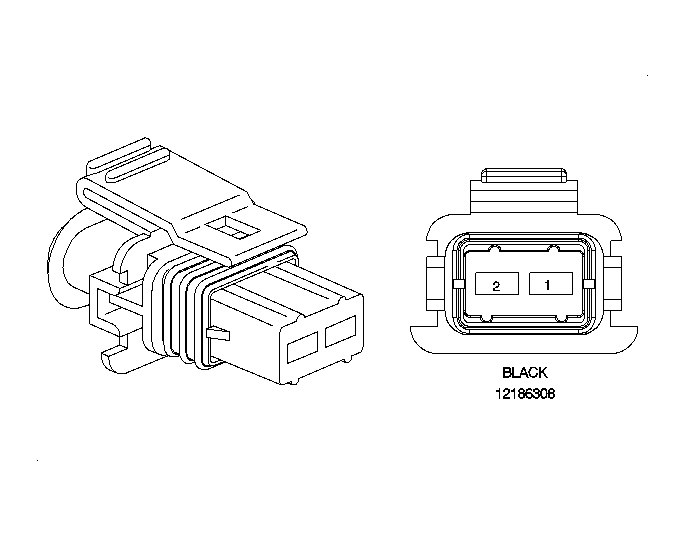

| Connector Part Information |
- 12186308
- 2 Way F Sealed (BK)
|
| Pin |
Wire Color |
Circuit Number |
Function |
| 1 |
RD |
225 |
Generator Turn On Signal |
| 2 |
GY |
23 |
Generator Field Duty Cycle Signal |
