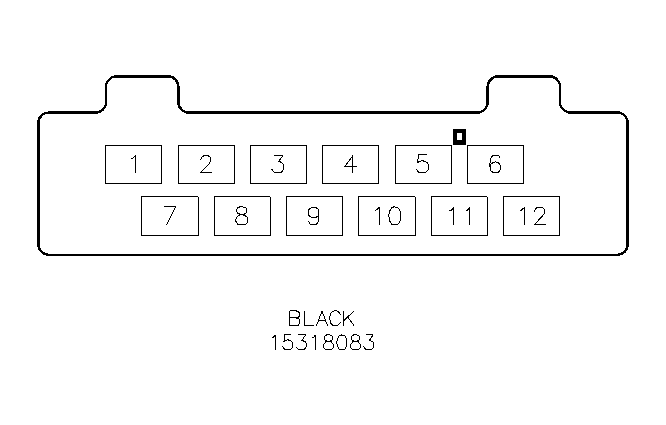

Sunroof Module Connector End View

Sunroof Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15318083 12 Way F (BK)
Pin	Wire Color	Circuit Number	Function
1	YE	143	Accessory Voltage
2	L-GN	129	Sunroof Motor Close Control
3	D-GN	127	Sunroof Motor Open Control
4	--	--	Not Used
5	RD	402	Battery Positive Voltage
6	BK	450	Ground
7-12	--	--	Not Used
