Installation Procedure

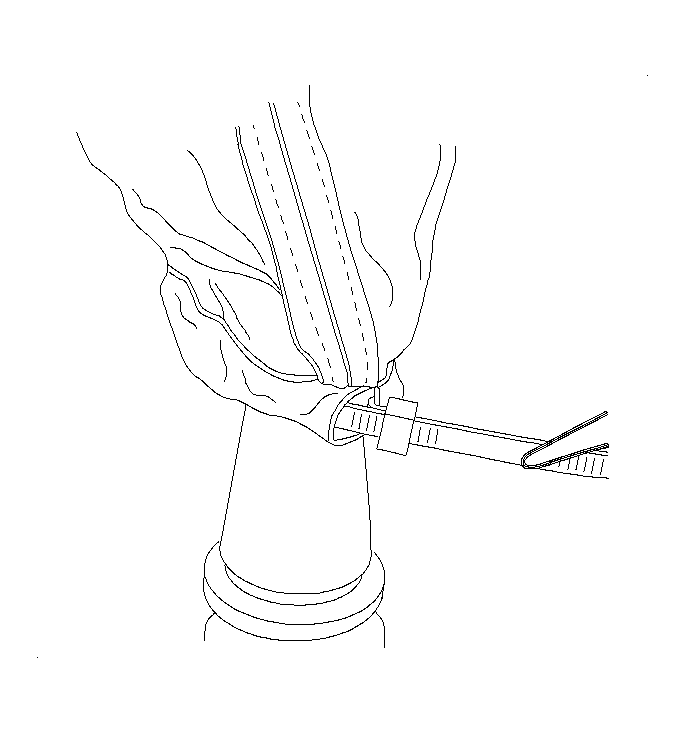

    Fig 1: Installing Shift Lever Boot & Plastic Tie Strap
    GM895325Courtesy of GENERAL MOTORS CORP.
  1. Install the boot assembly to the lever so the plastic tie strap is in the groove on the lever.
  2. Pull the tie strap tight with pliers.
  3. Pull the control lever boot down and snap the boot into the console opening.
