Removal Procedure

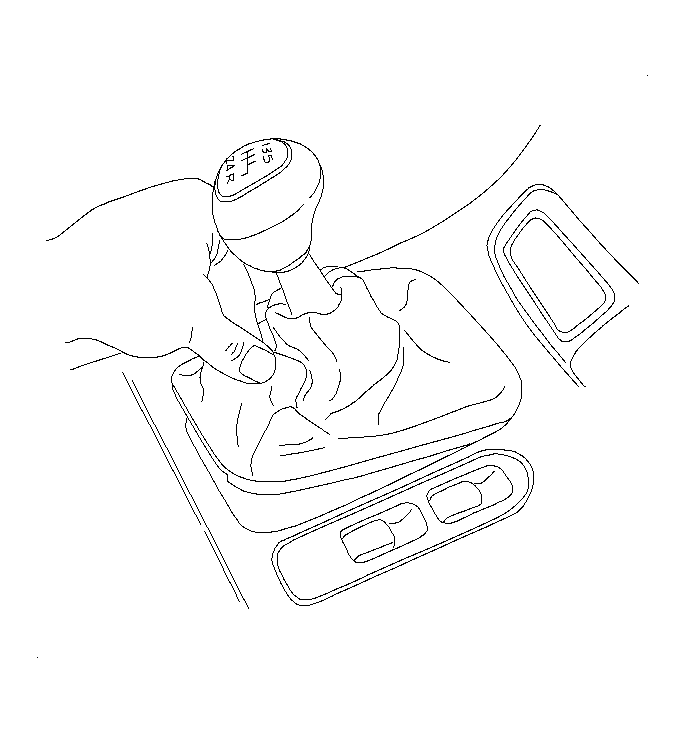

    Fig 1: Removing & Installing Shifter Boot - 5-Speed Transaxles
    GM895322Courtesy of GENERAL MOTORS CORP.
  1. Pull up on the control lever boot to disengage from the console.

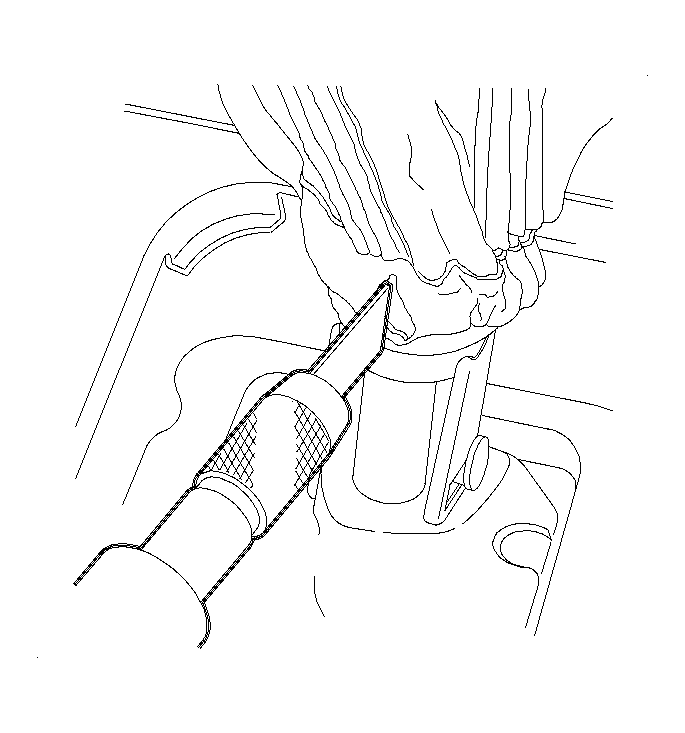

    2. Fig 2: Removing Plastic Tie Strap On Shift Lever Boot
    GM895323Courtesy of GENERAL MOTORS CORP.
  2. Cut the plastic tie strap that secures the boot to the shift lever.
  3. Remove the control lever boot.
