Engine Controls - Self-Diagnostics - 2.2L
>>
Connector Identification
Connector Identification

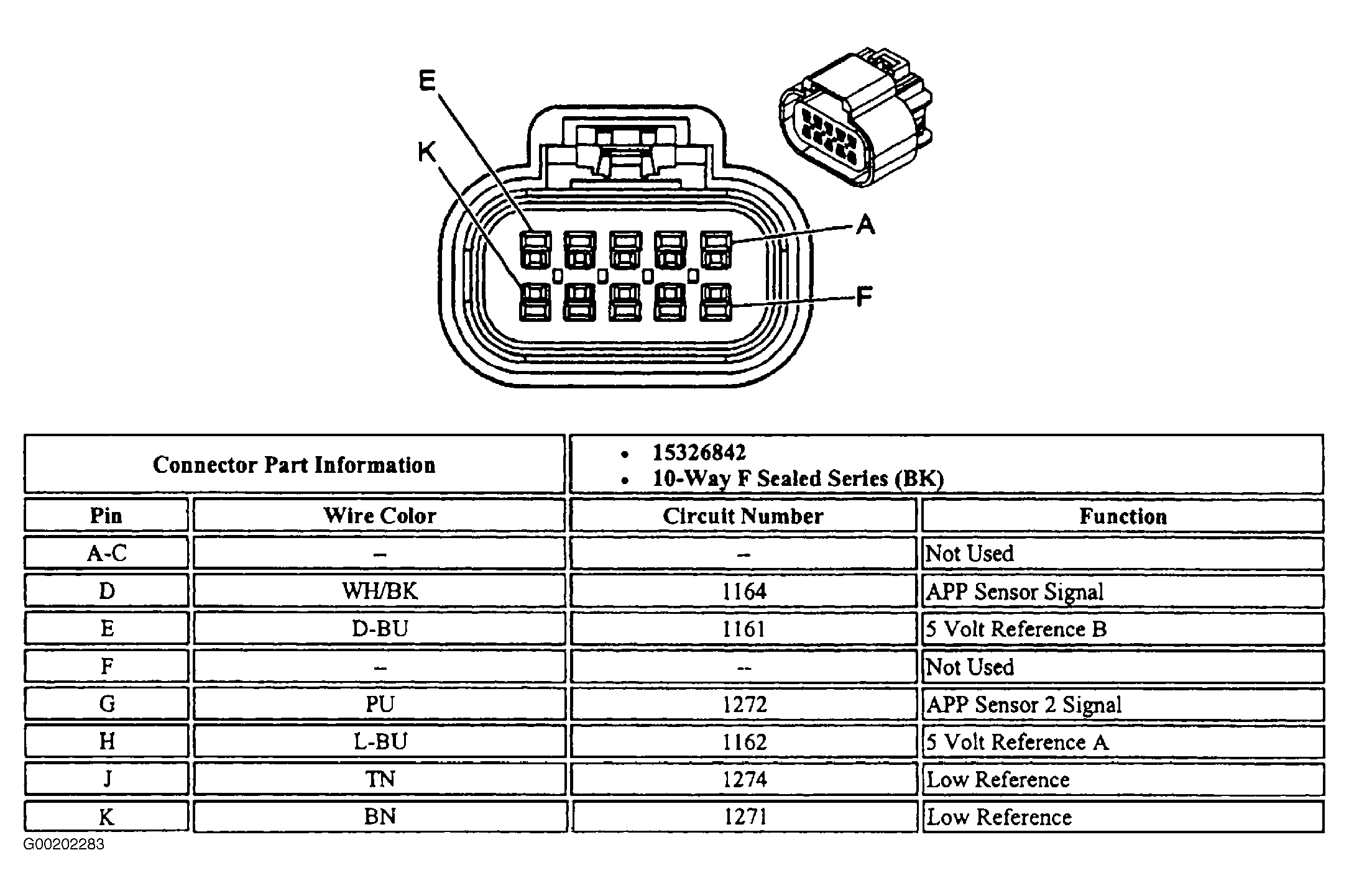

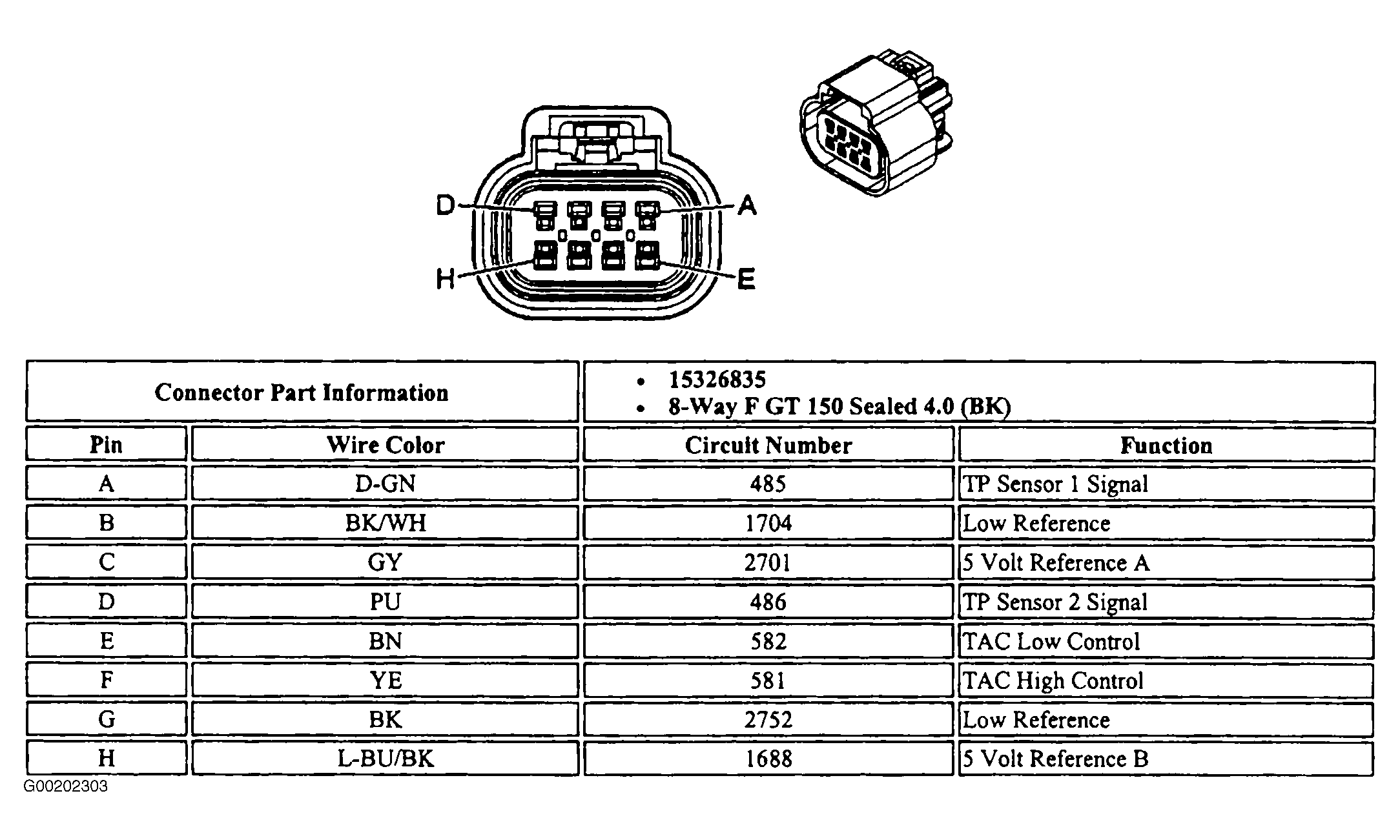

Fig 1: Identifying Accelerator Pedal Position Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

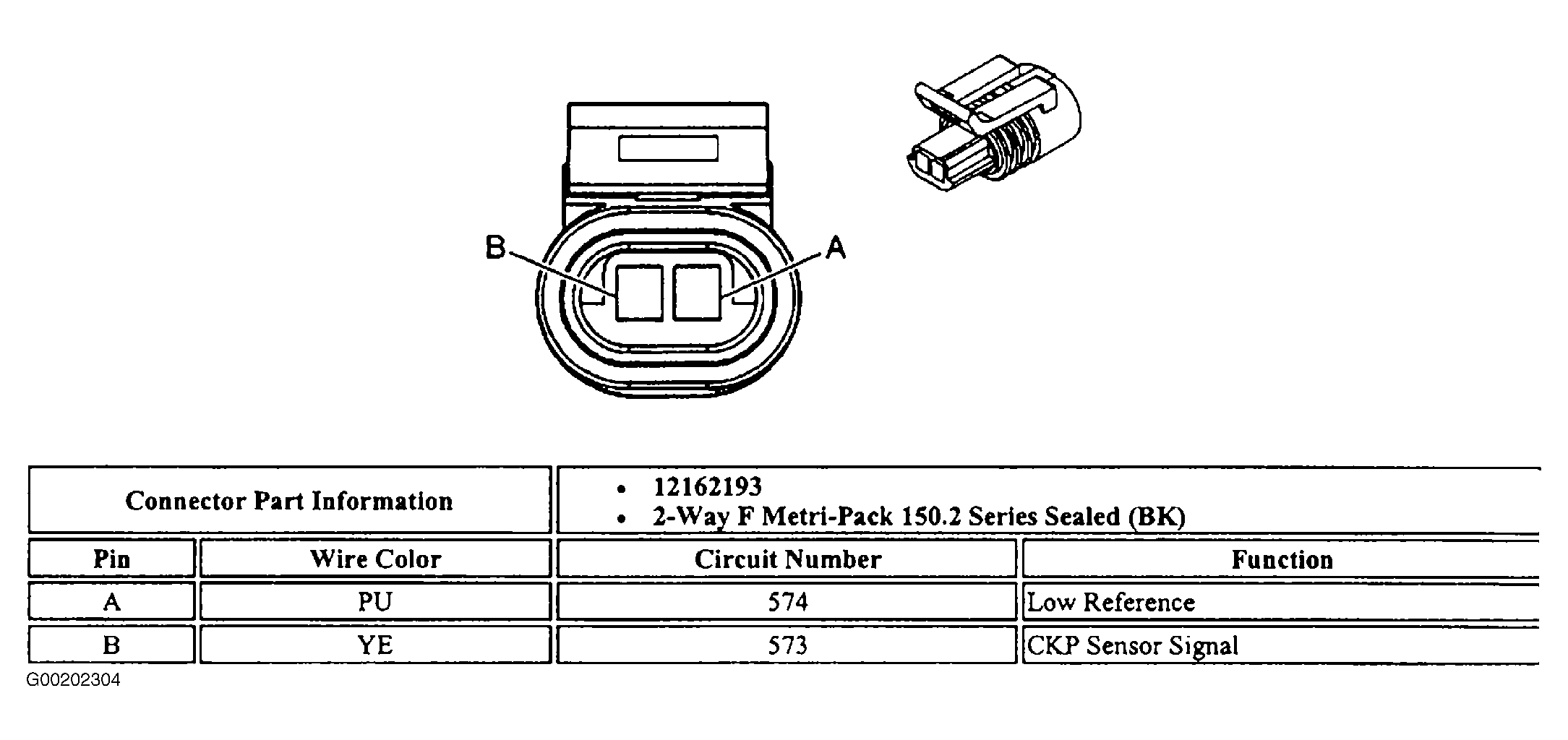

Fig 2: Identifying Crankshaft Position Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

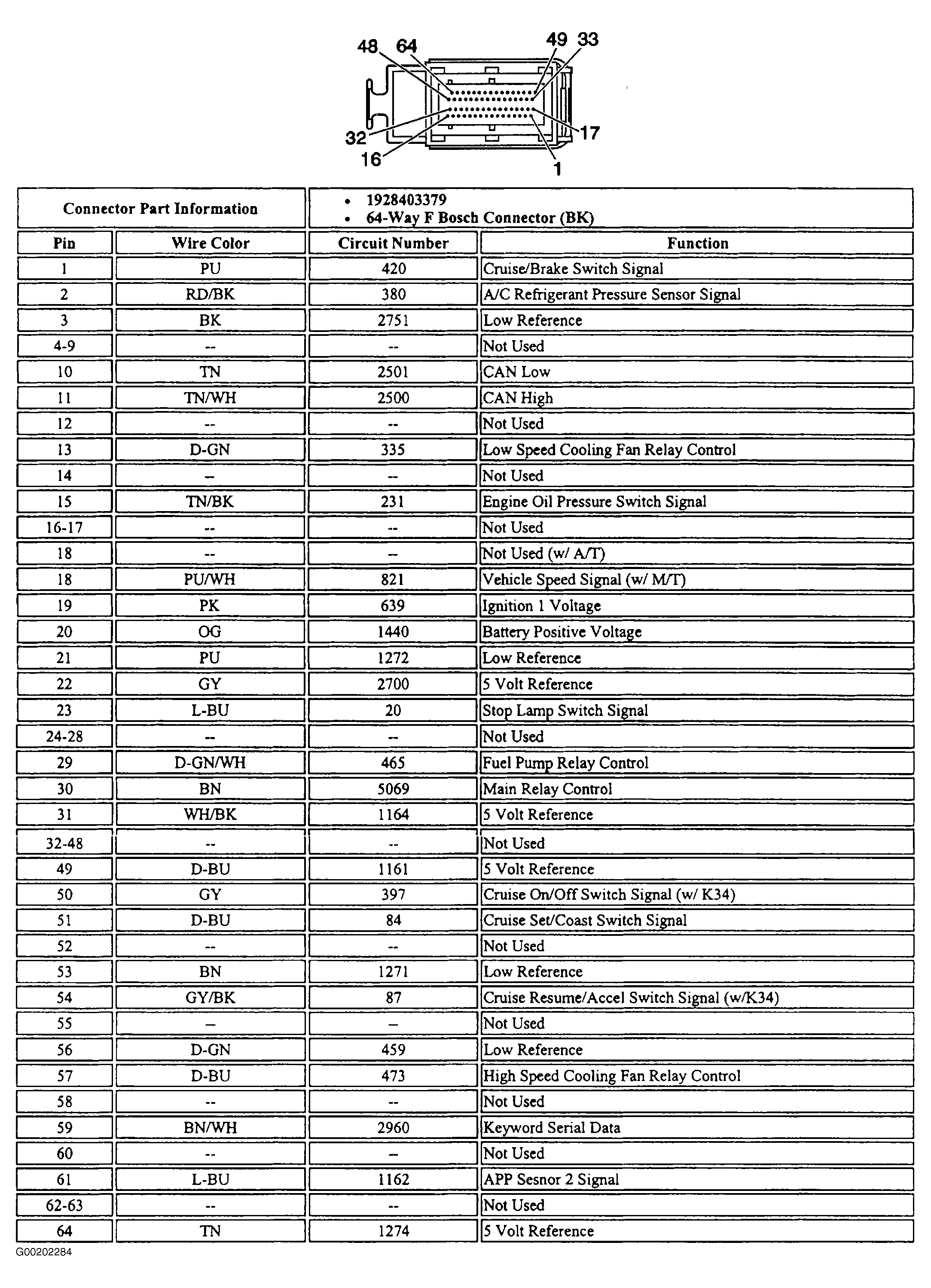

Fig 3: Identifying ECM C1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

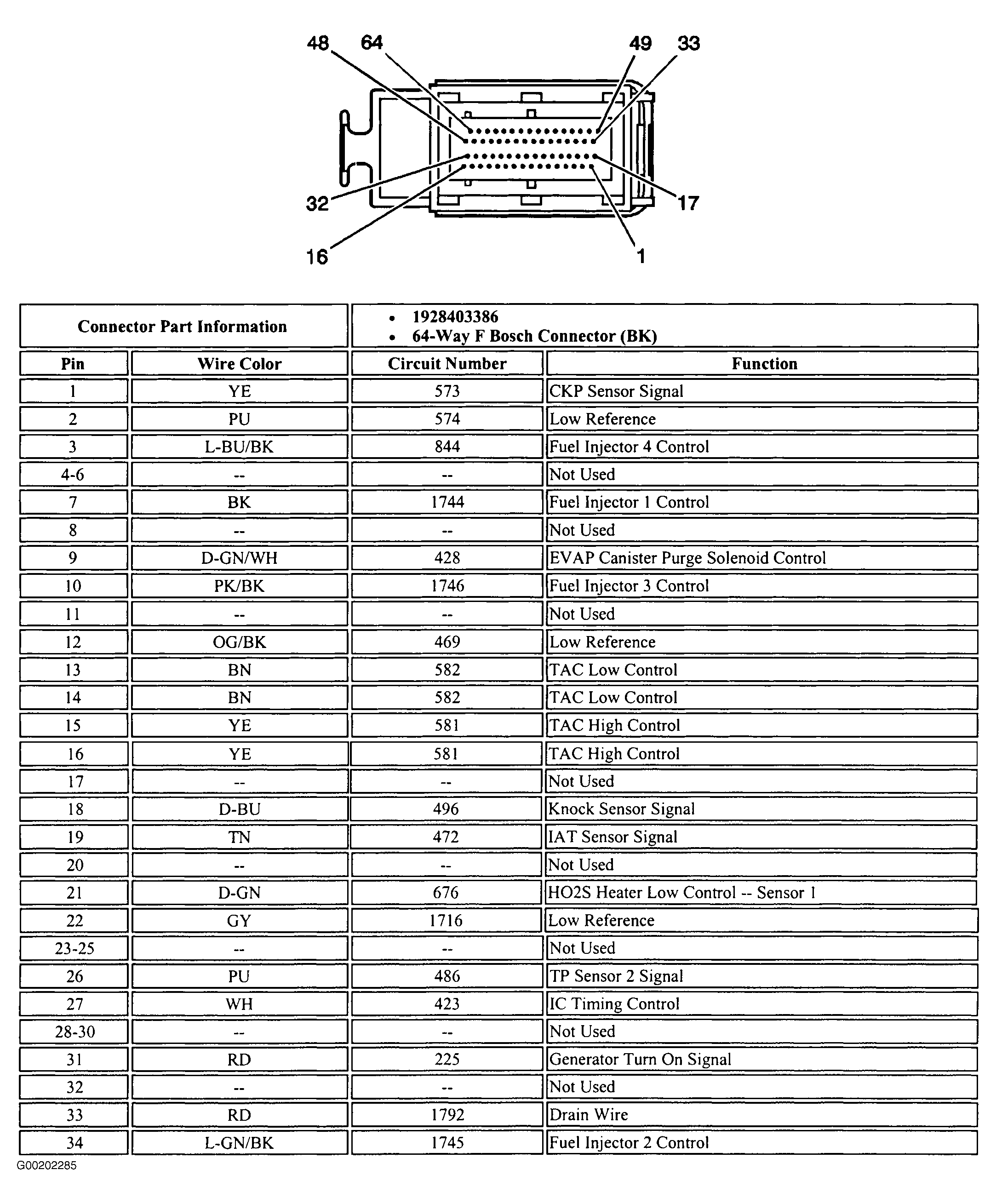

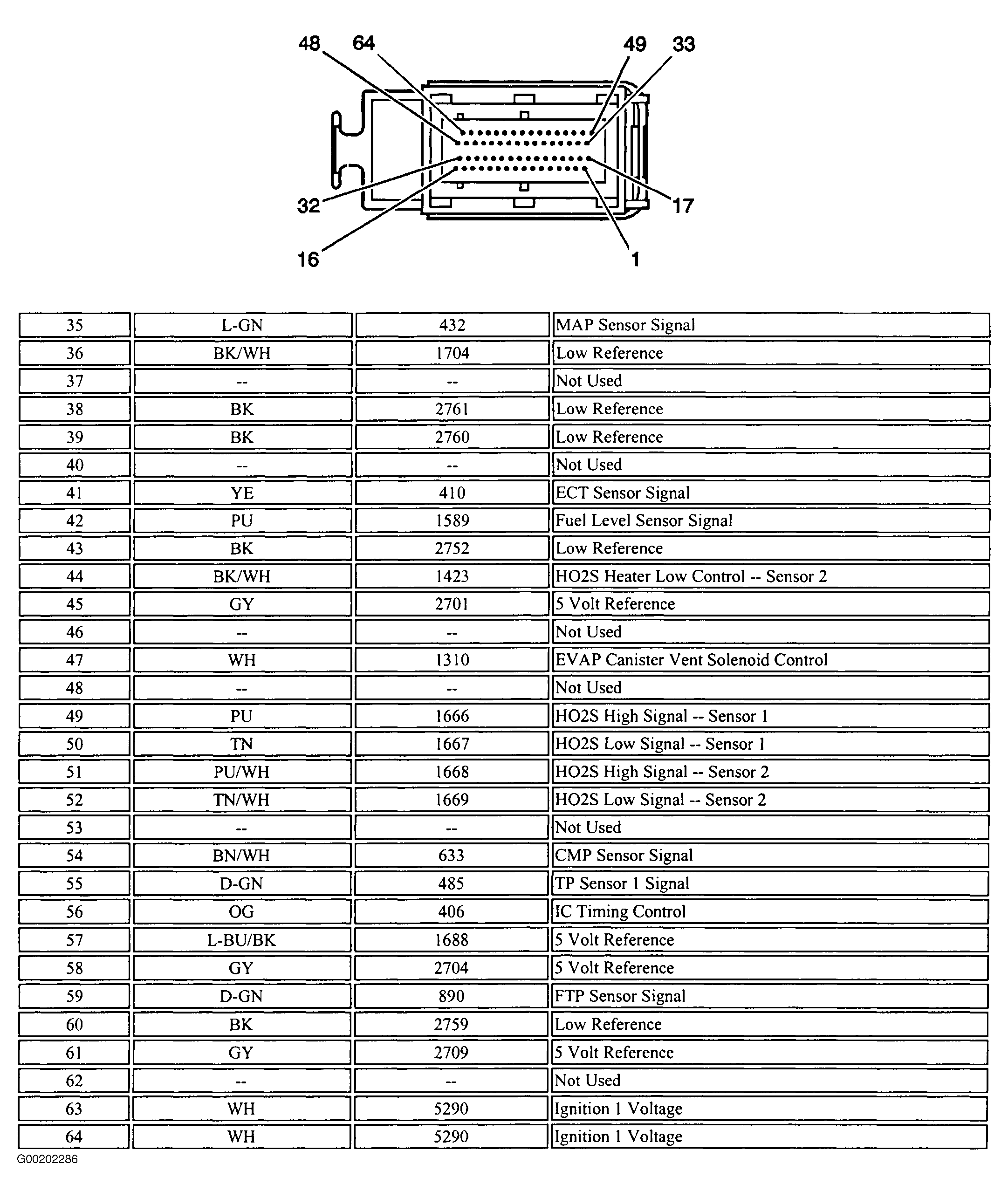

Fig 4: Identifying ECM C2 Connector Terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying ECM C2 Connector Terminals (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

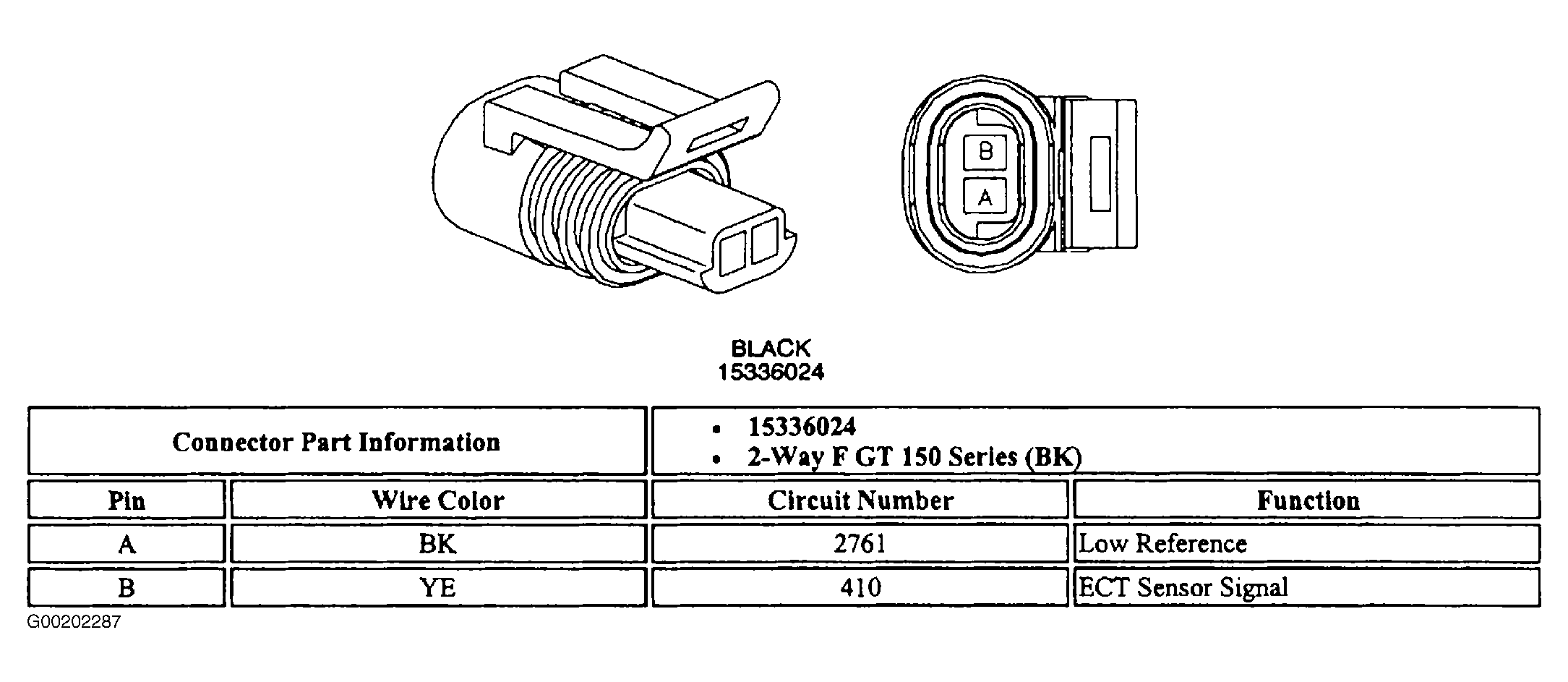

Fig 6: Identifying Engine Coolant Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

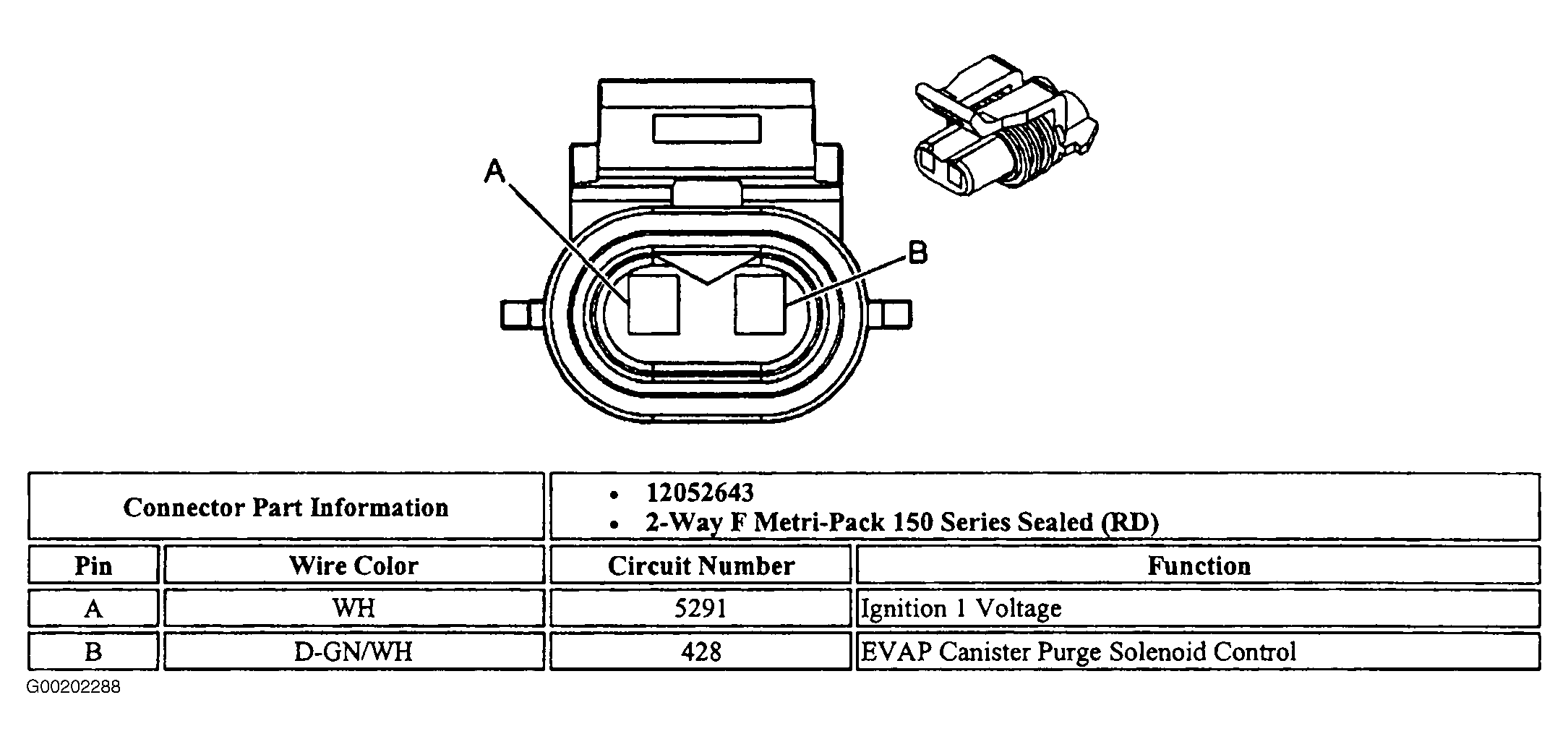

Fig 7: Identifying EVAP Canister Purge Solenoid Connector Terminals
Courtesy of GENERAL MOTORS CORP.

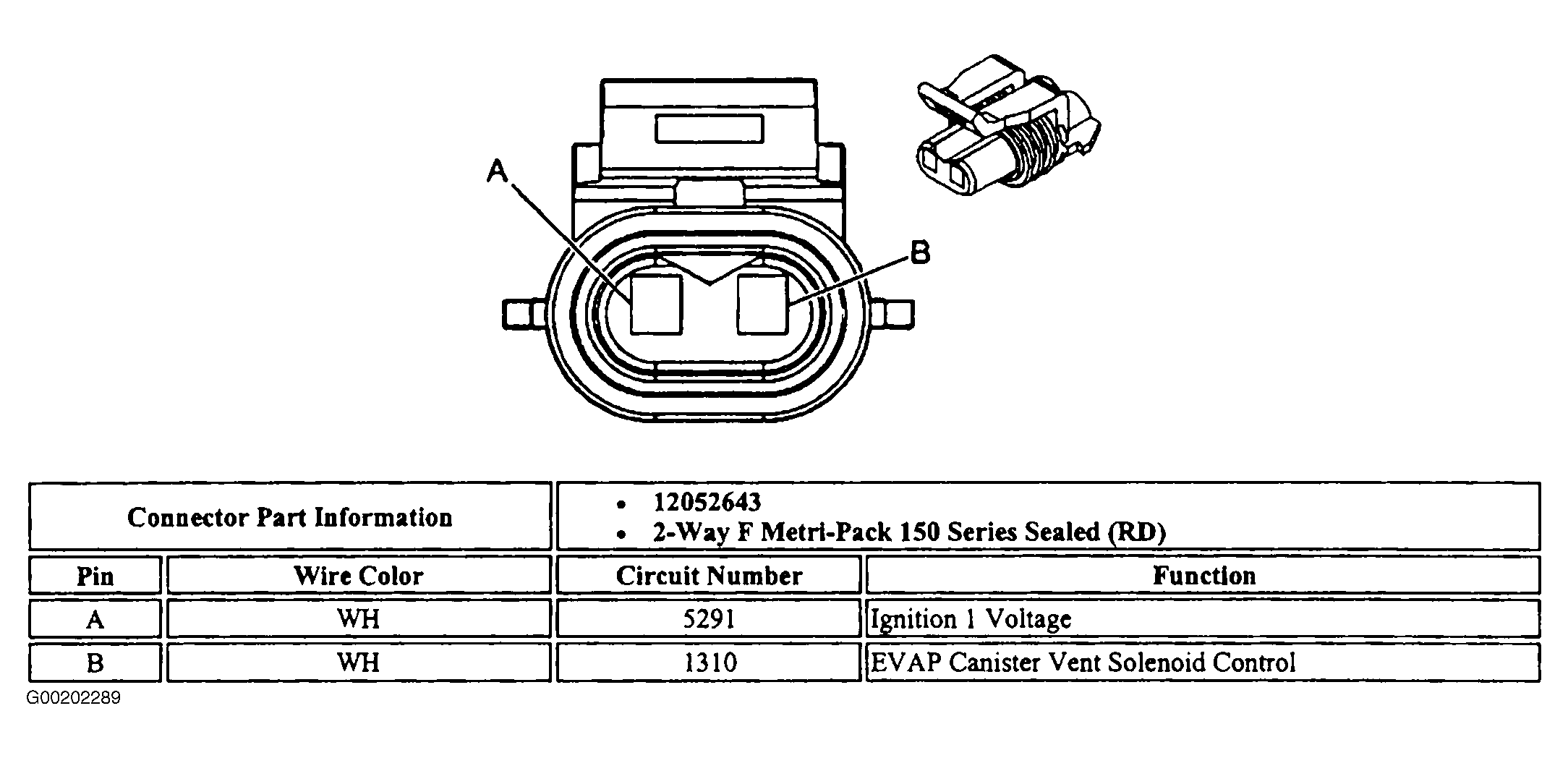

Fig 8: Identifying EVAP Vent Solenoid Connector Terminals
Courtesy of GENERAL MOTORS CORP.

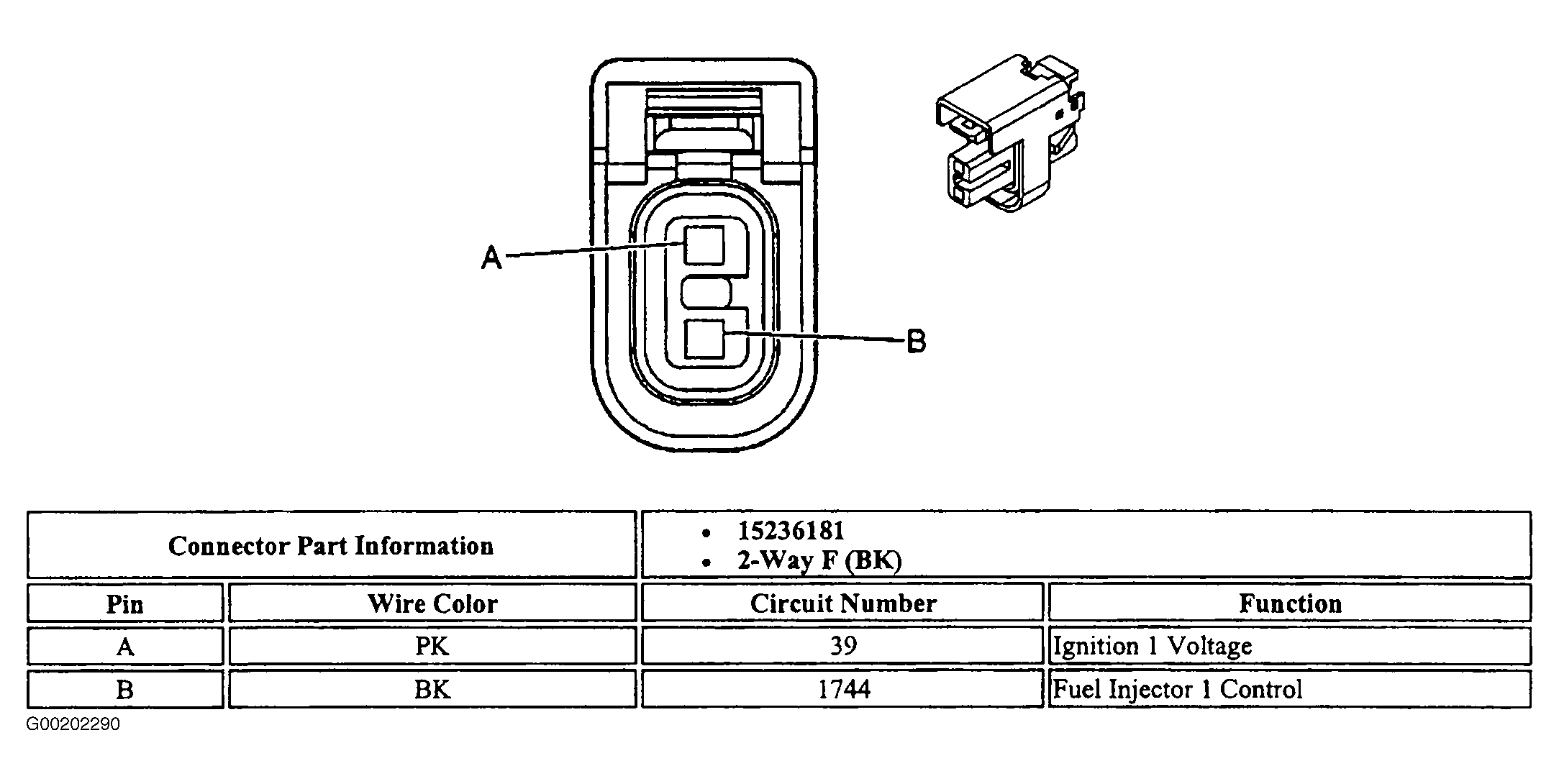

Fig 9: Identifying Fuel Injector No. 1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Fuel Injector No. 2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Fuel Injector No. 3 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Fuel Injector No. 4 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

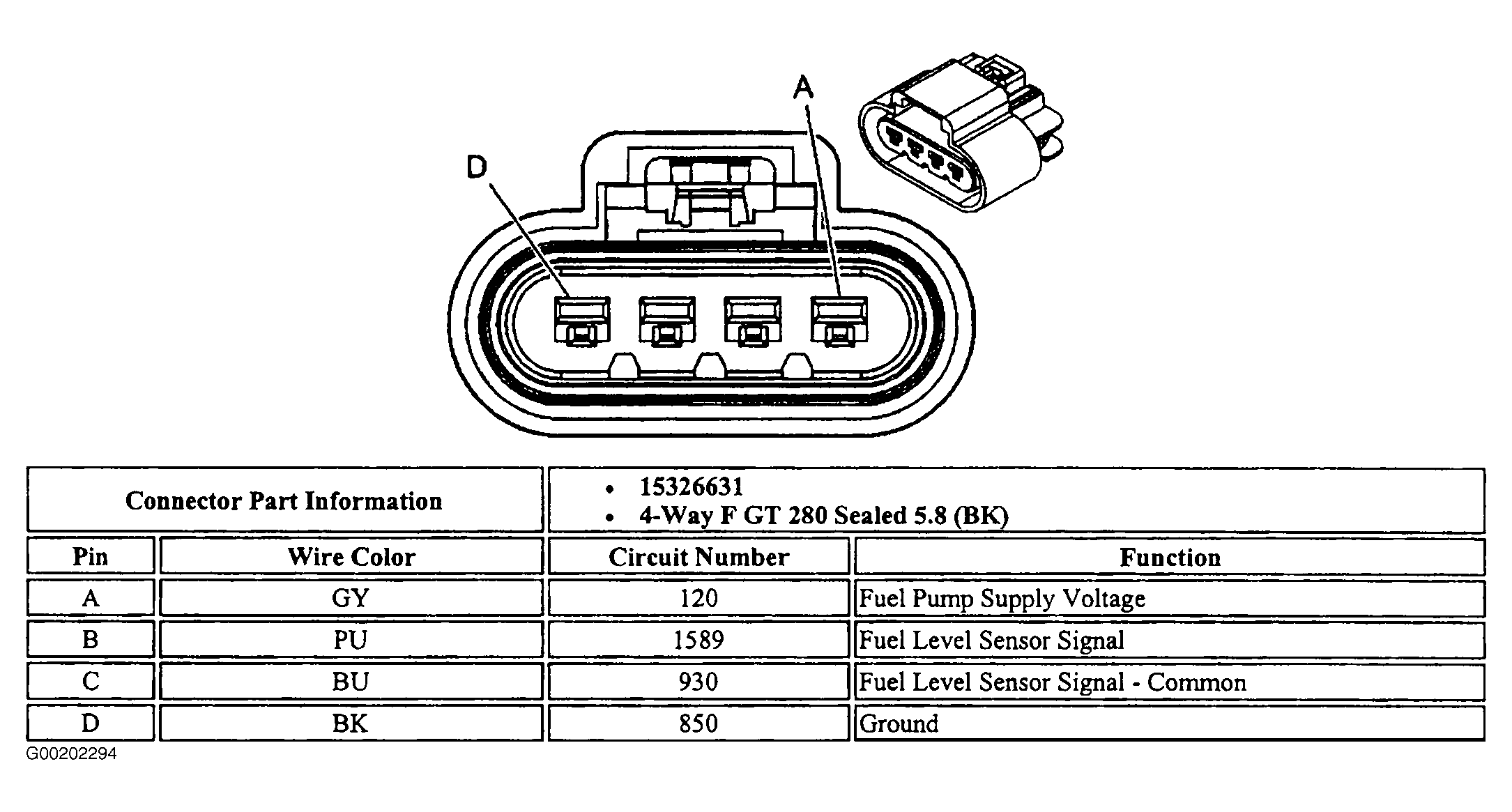

Fig 13: Identifying Fuel Pump & Sender Assembly Connector Terminals
Courtesy of GENERAL MOTORS CORP.

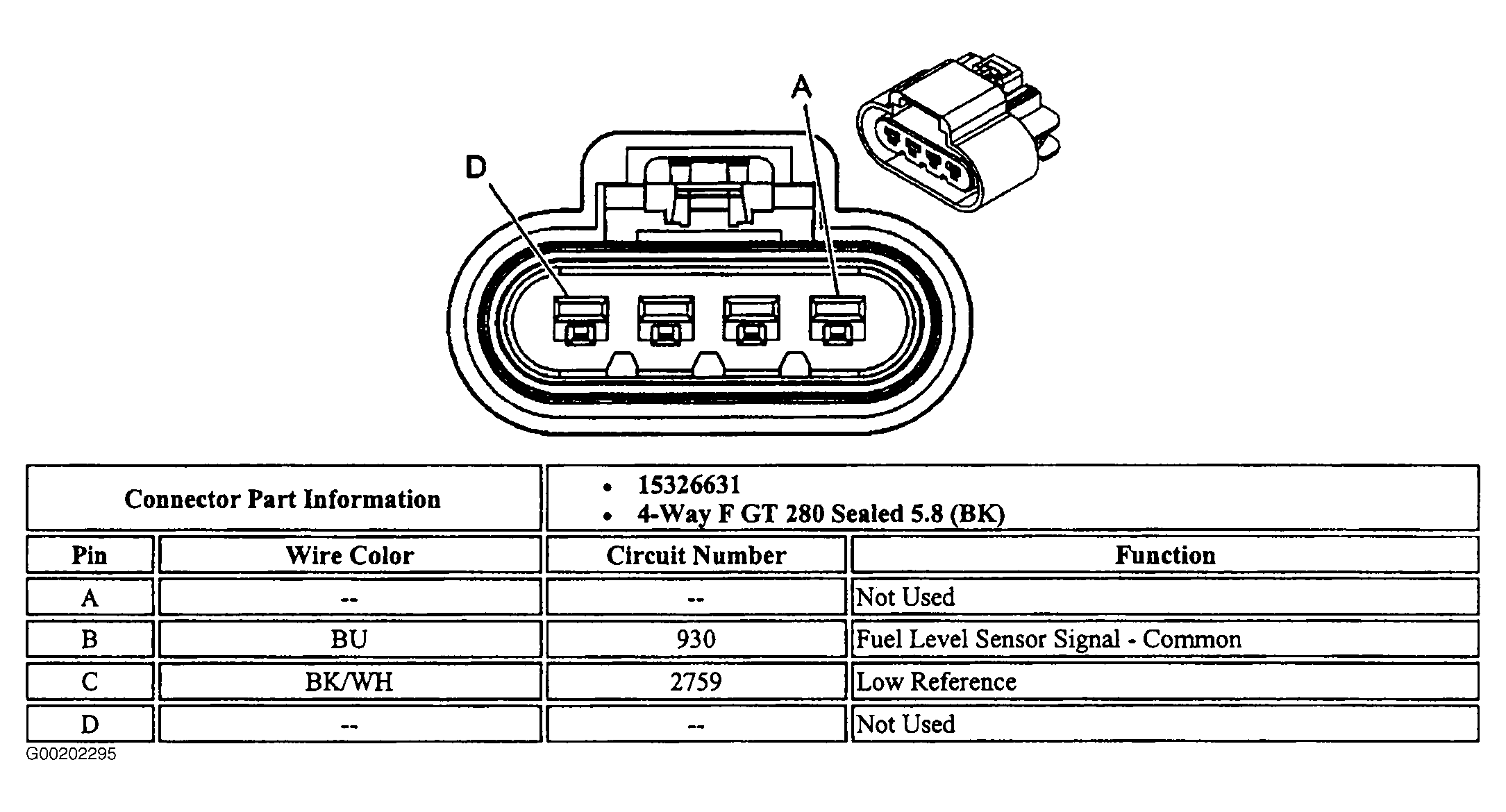

Fig 14: Identifying Fuel Pump & Sender Assembly (Secondary) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

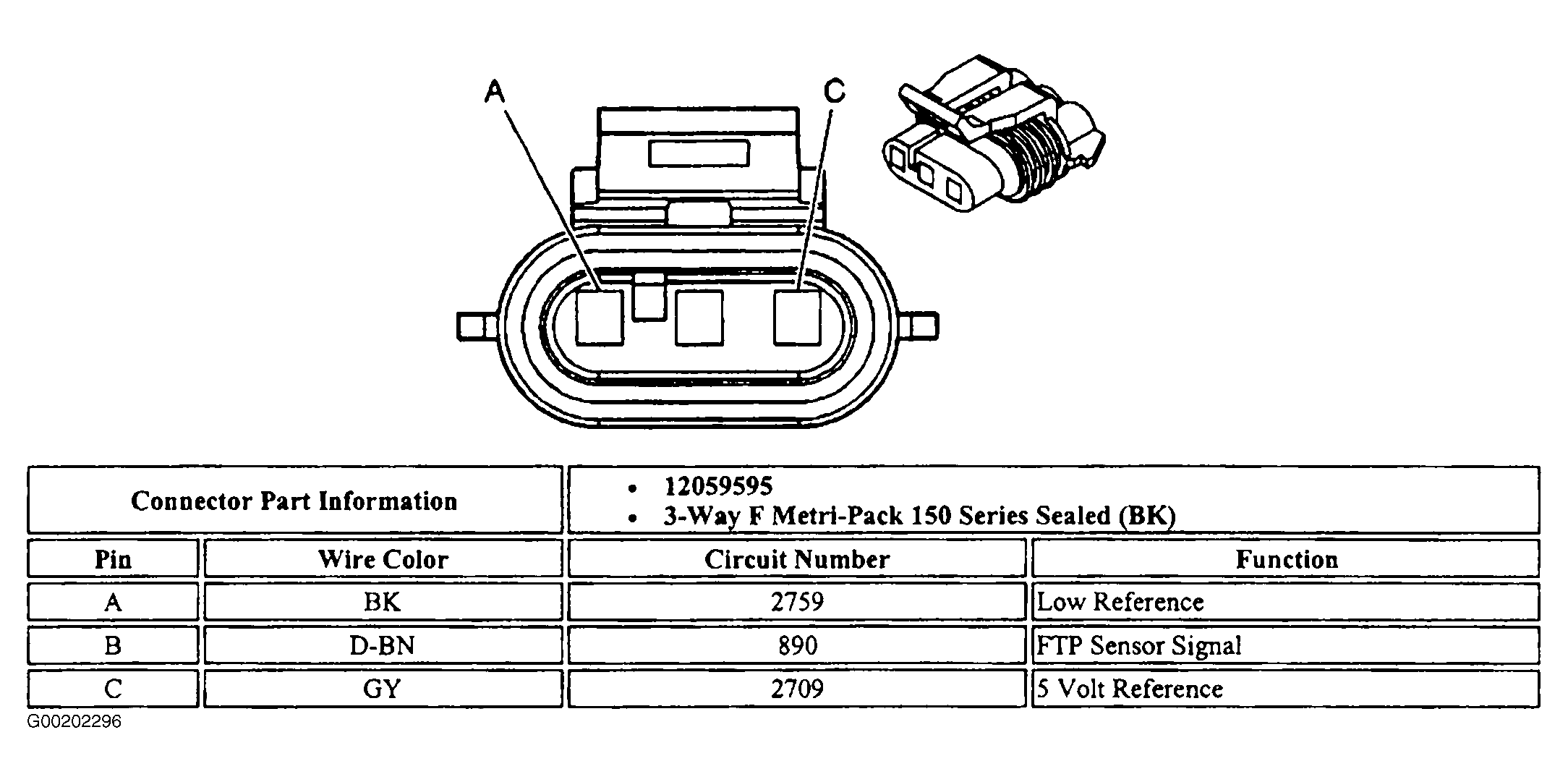

Fig 15: Identifying Fuel Tank Pressure Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

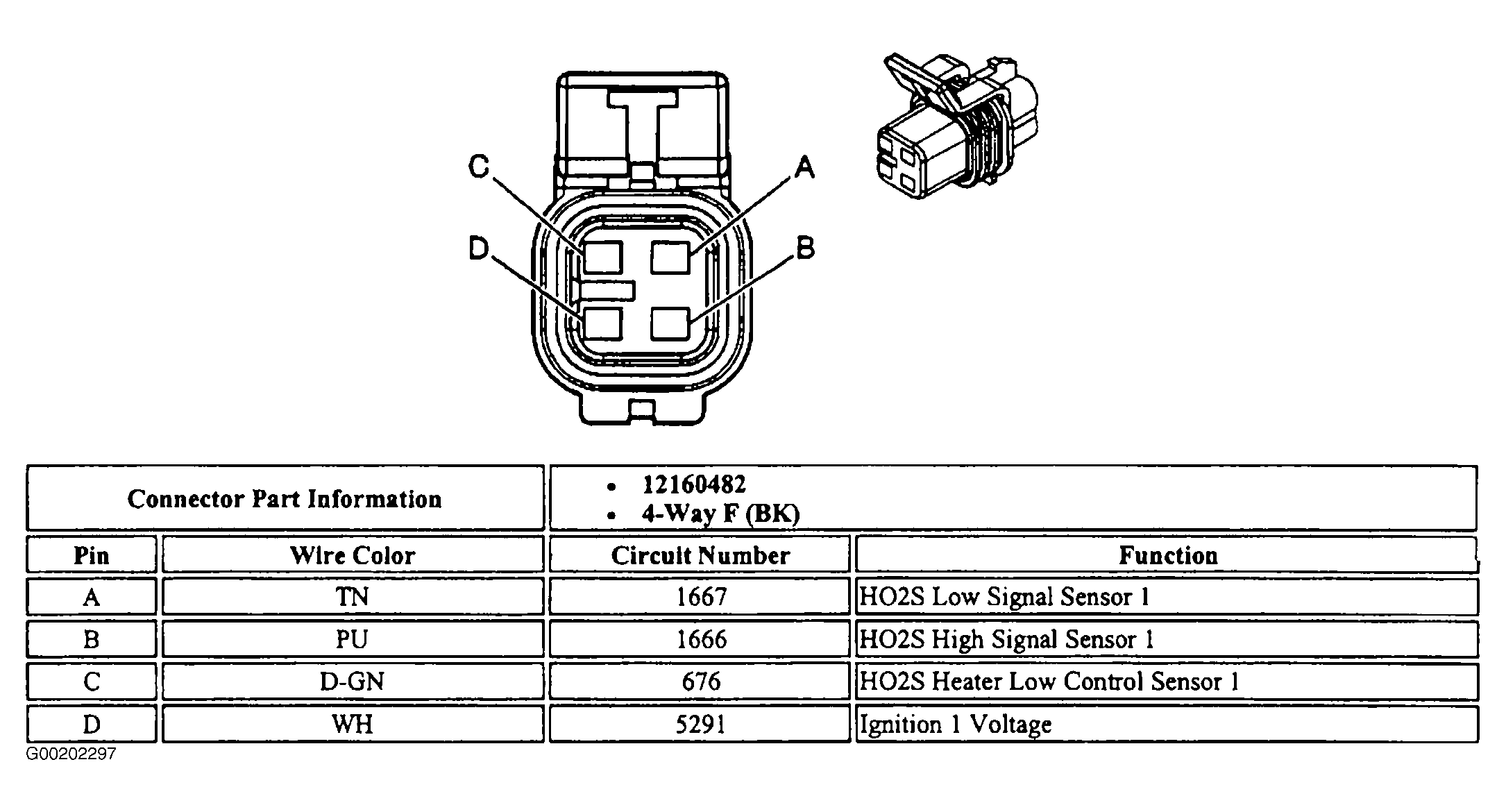

Fig 16: Identifying HO2S 1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

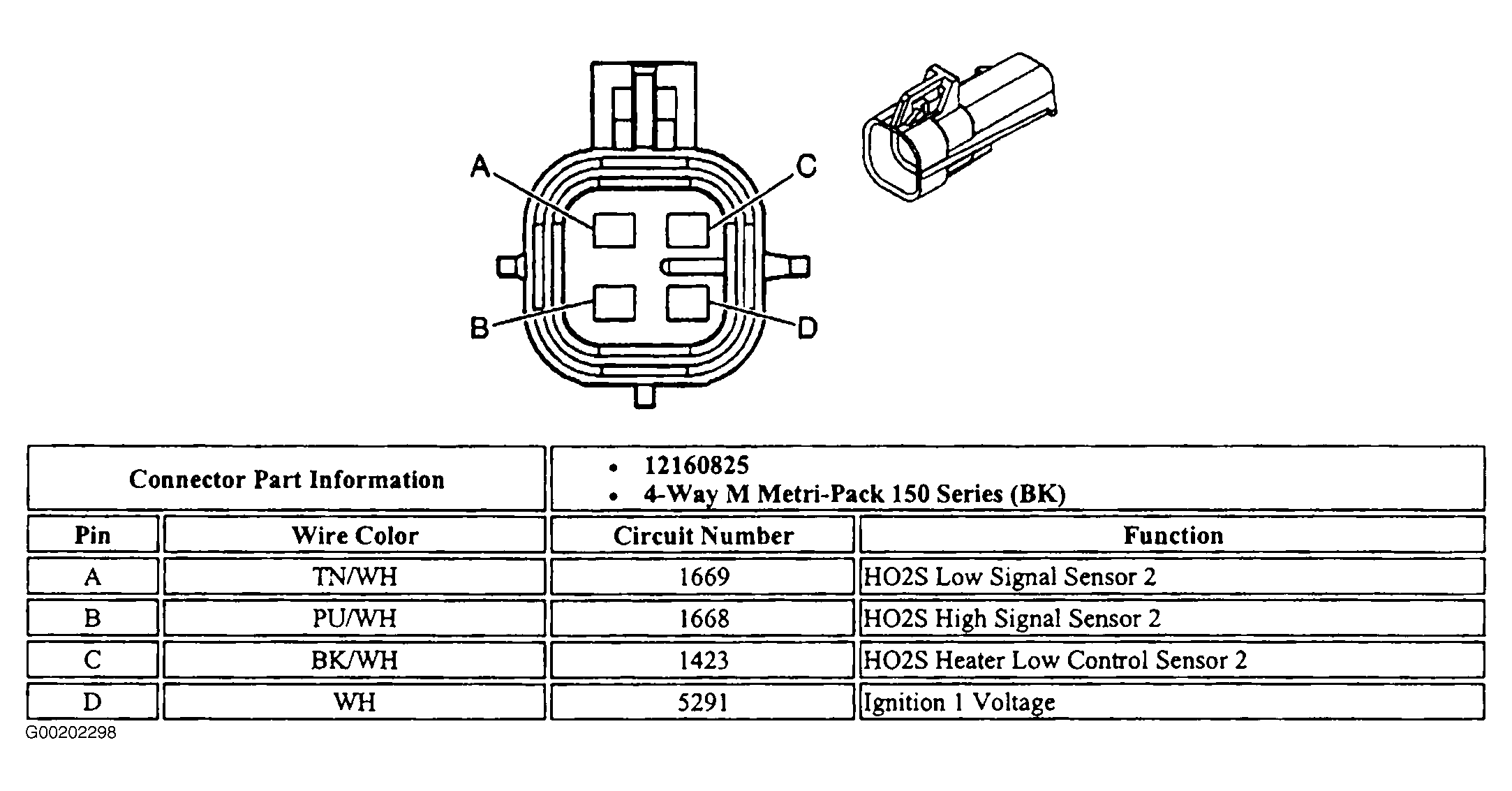

Fig 17: Identifying HO2S 2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

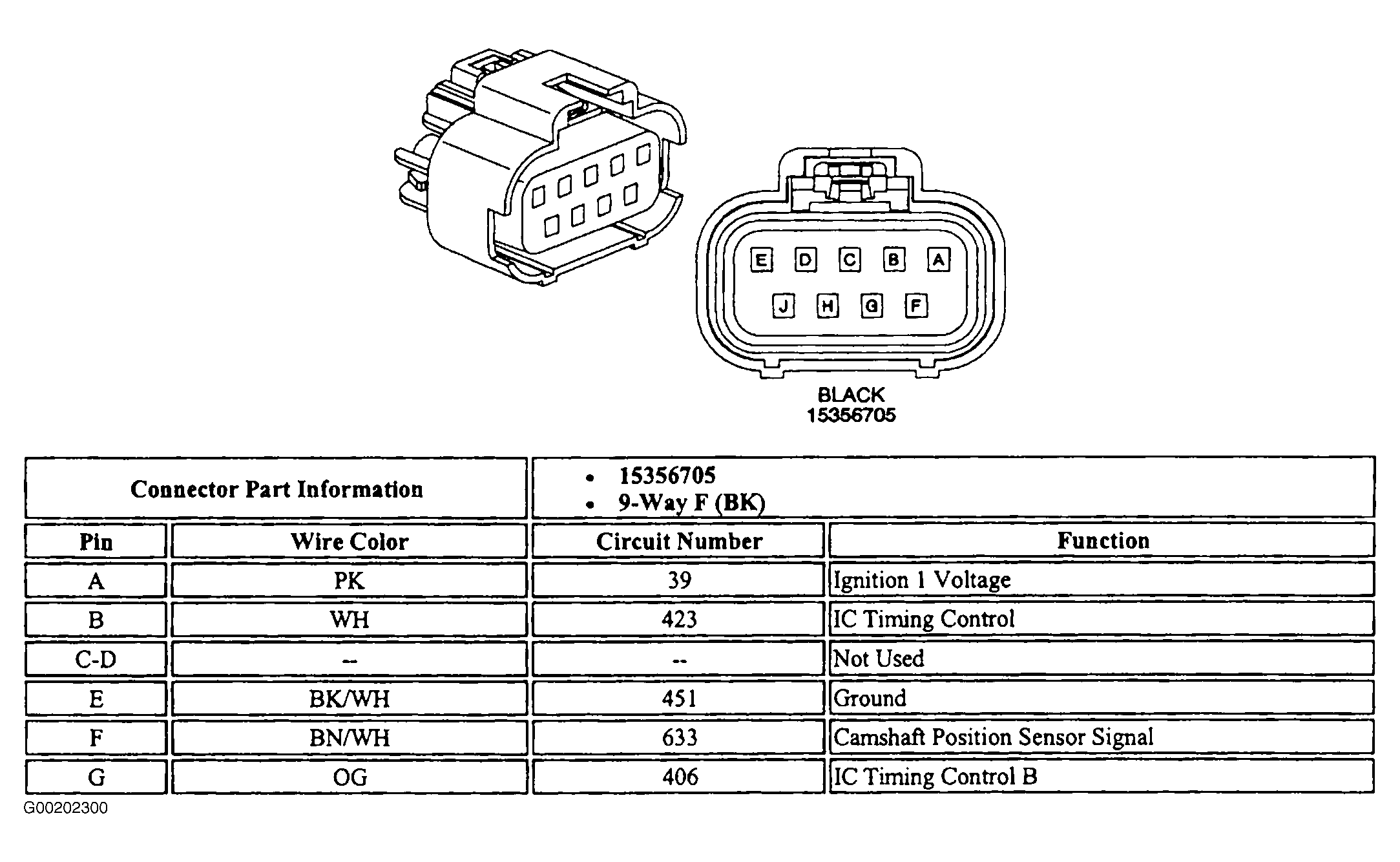

Fig 18: Identifying Ignition Control Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.

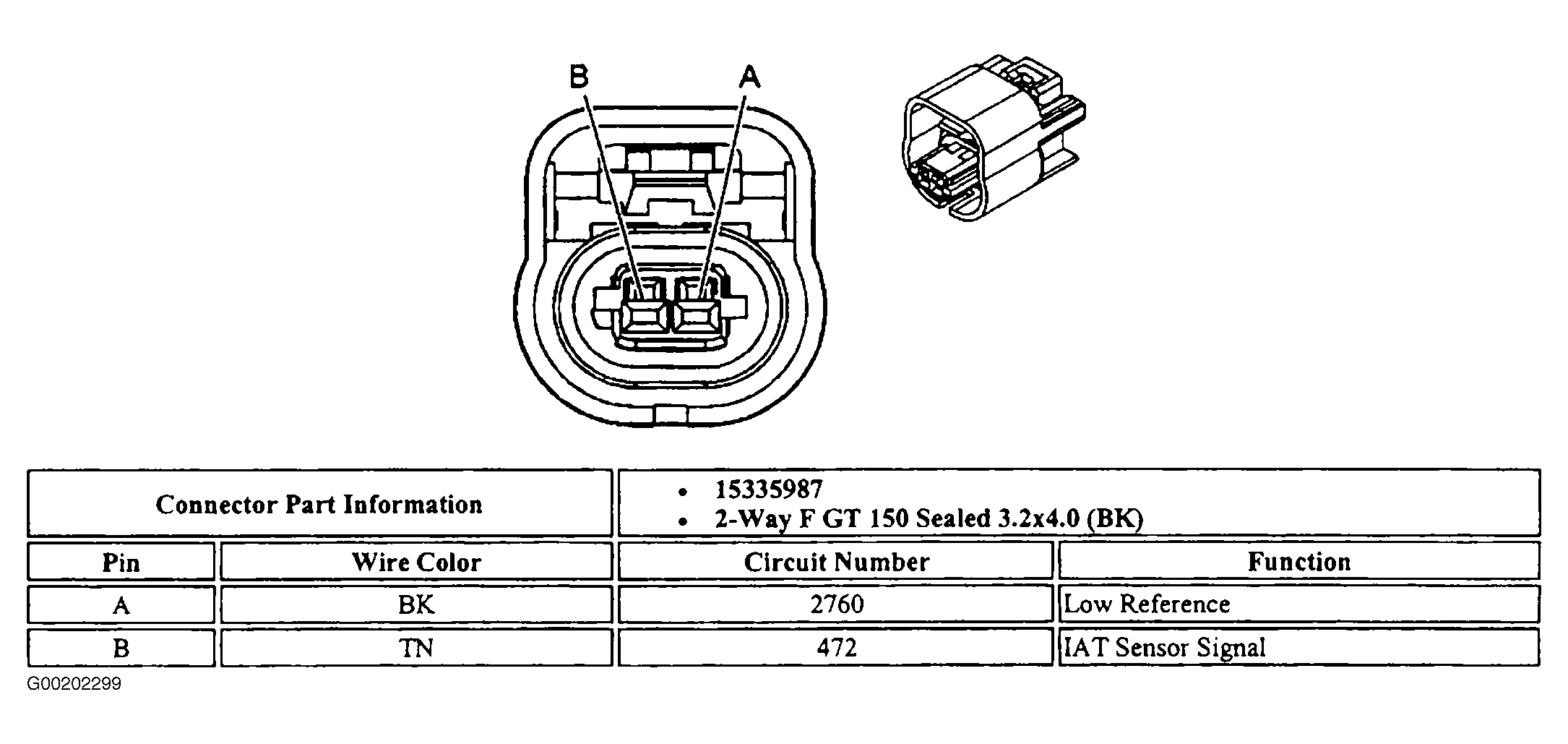

Fig 19: Identifying Intake Air Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

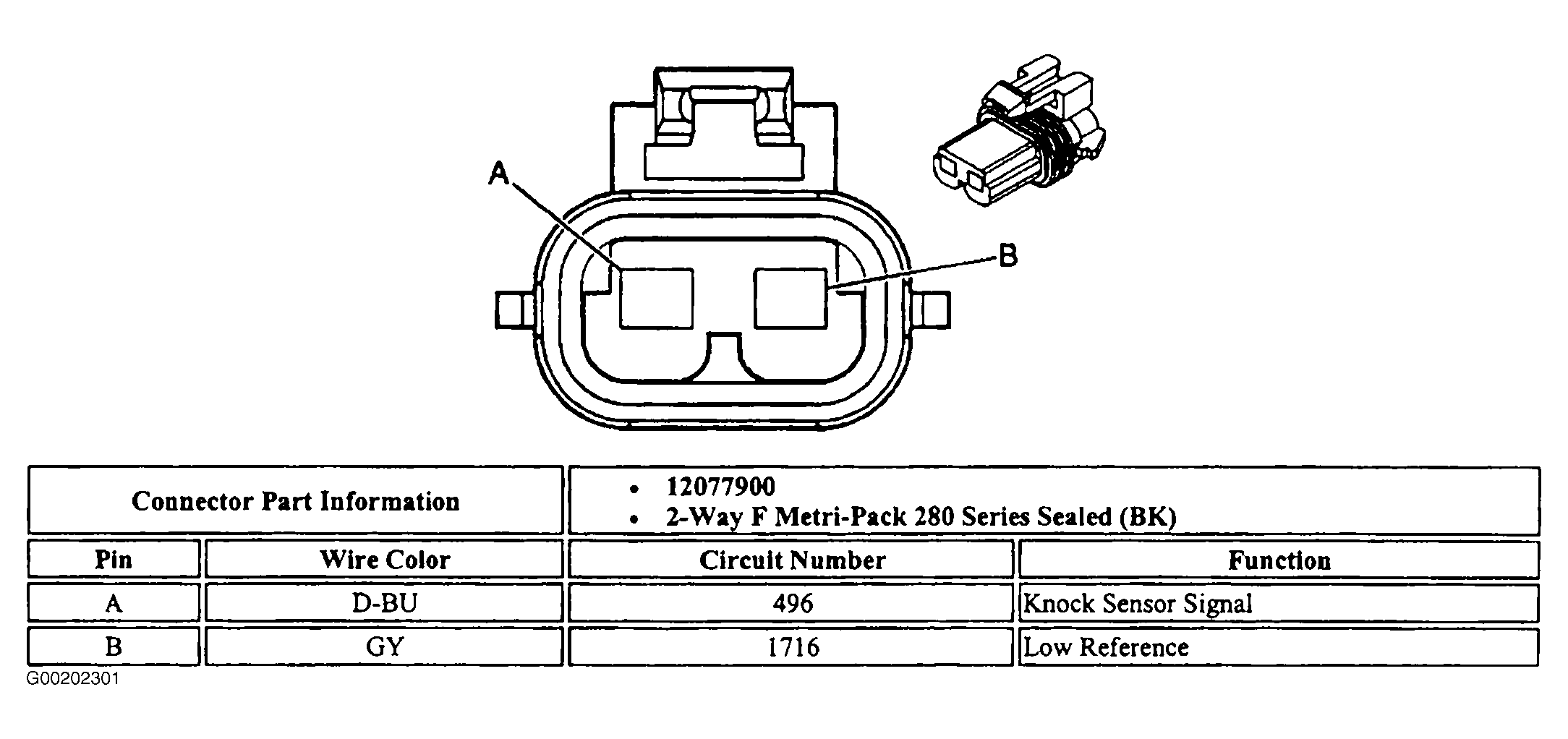

Fig 20: Identifying Knock Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

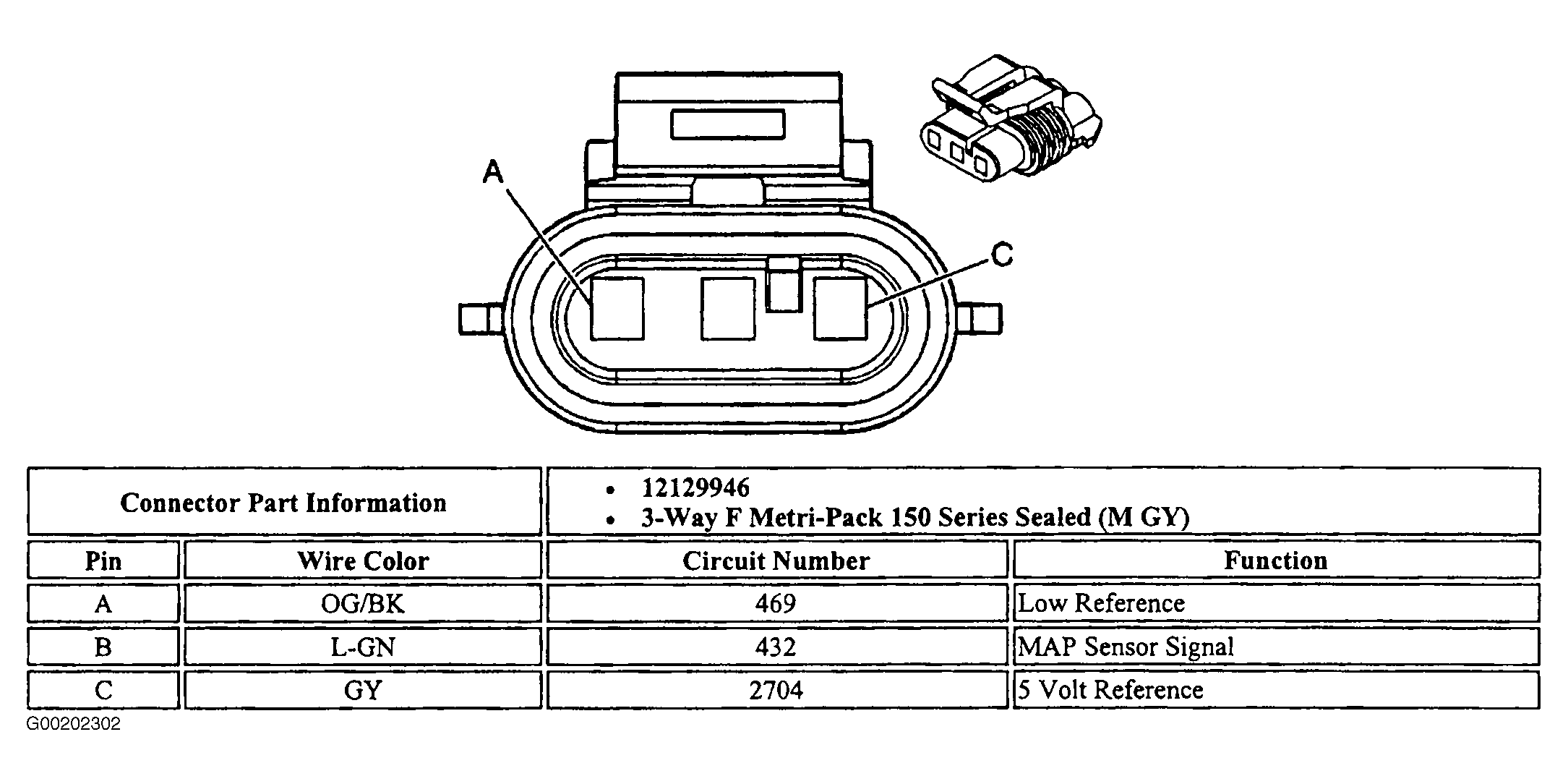

Fig 21: Identifying MAP Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Throttle Actuator Control Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.
