Engine Controls Schematics

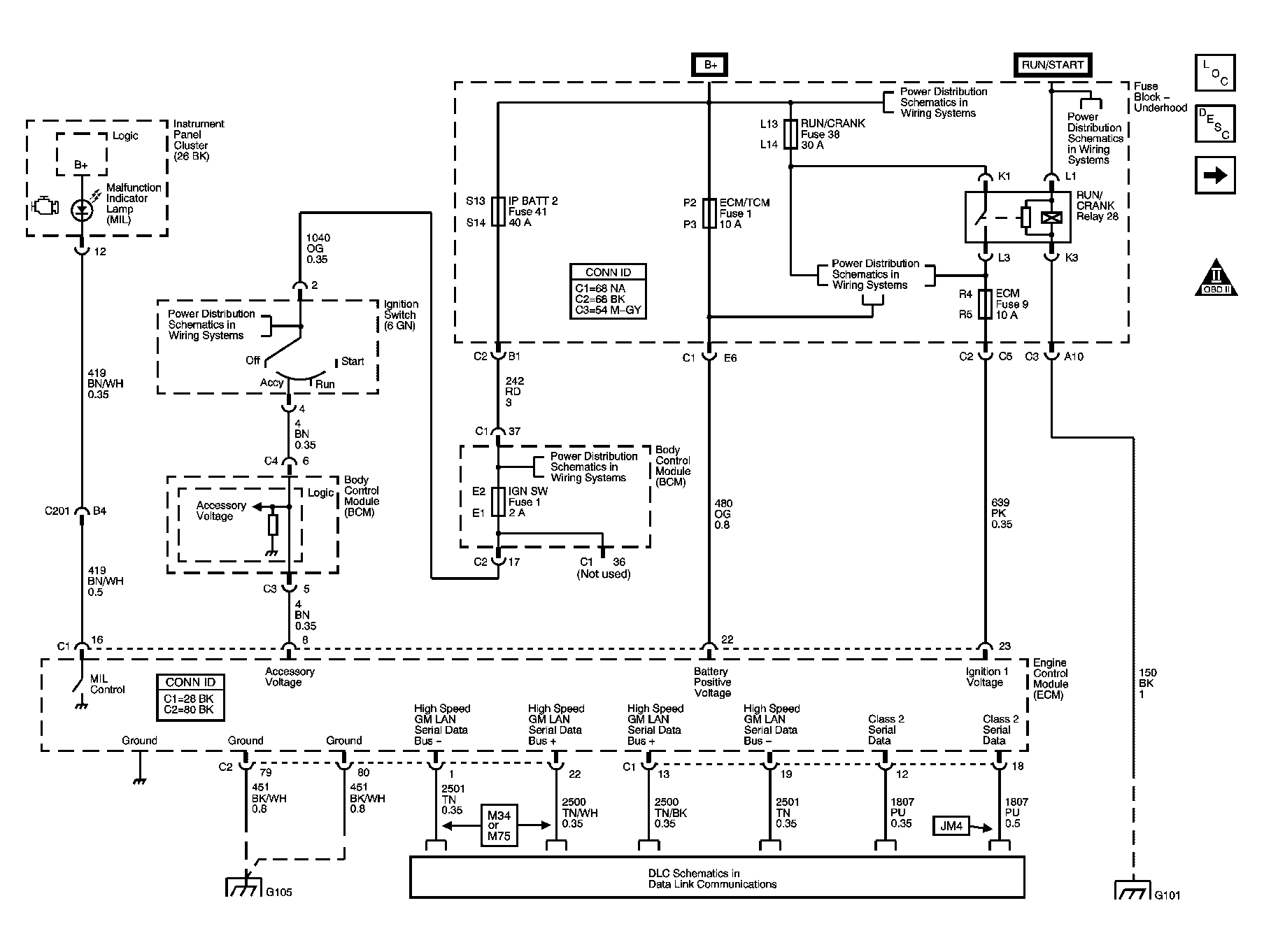

Fig 1: Ground, MIL, Power, and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

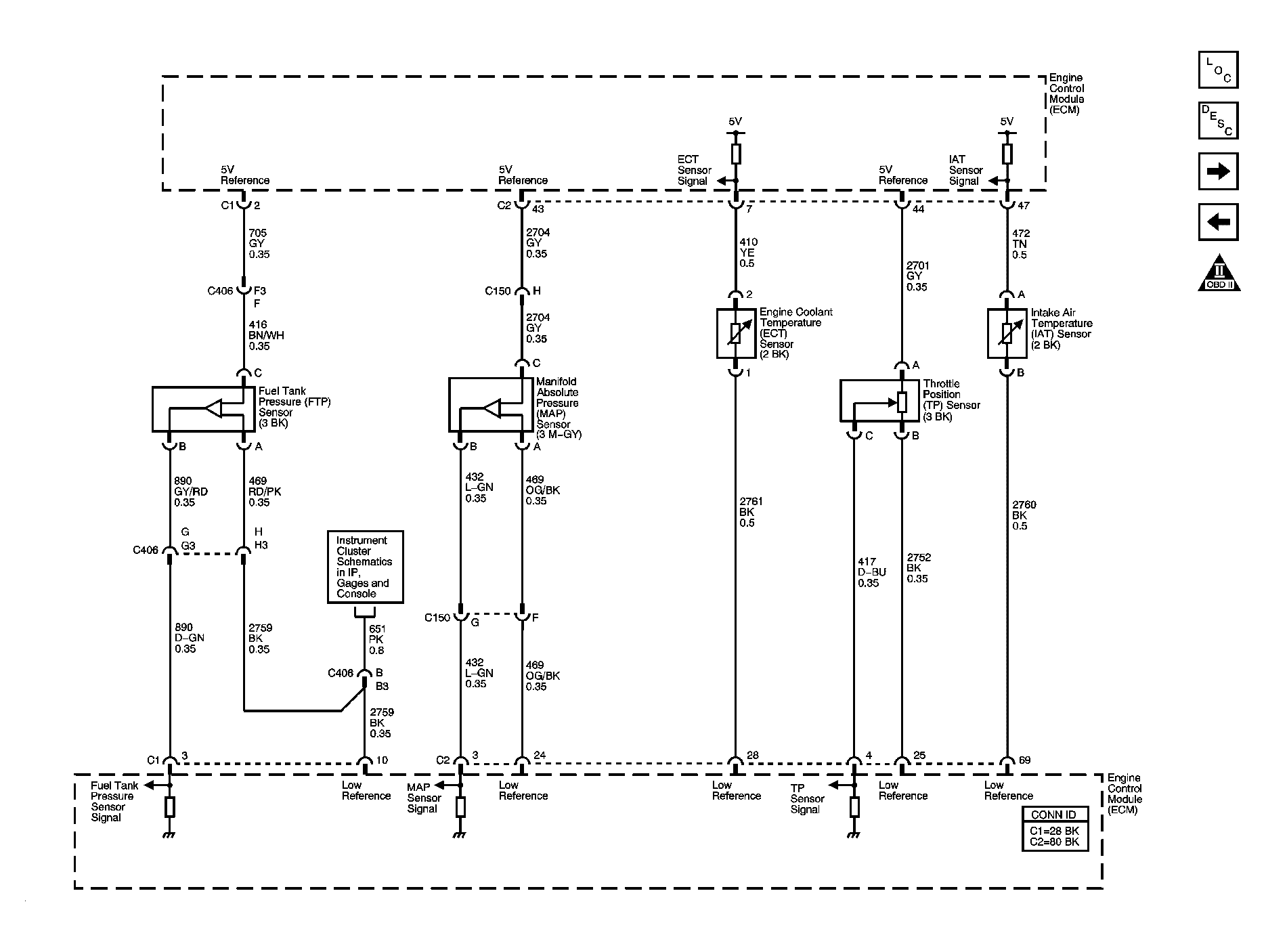

Fig 2: Engine Data Sensors Schematic -5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors Schematic - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

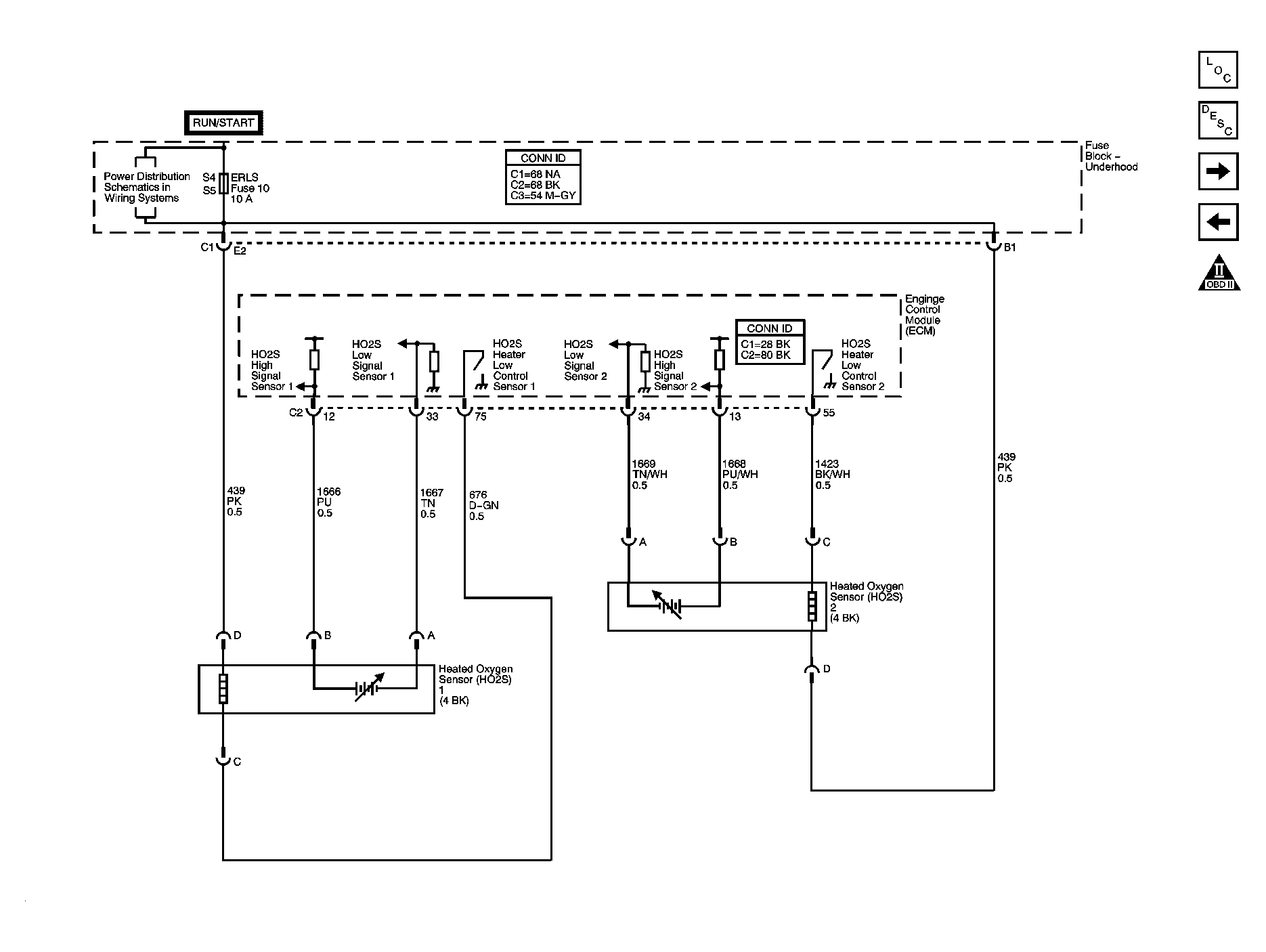

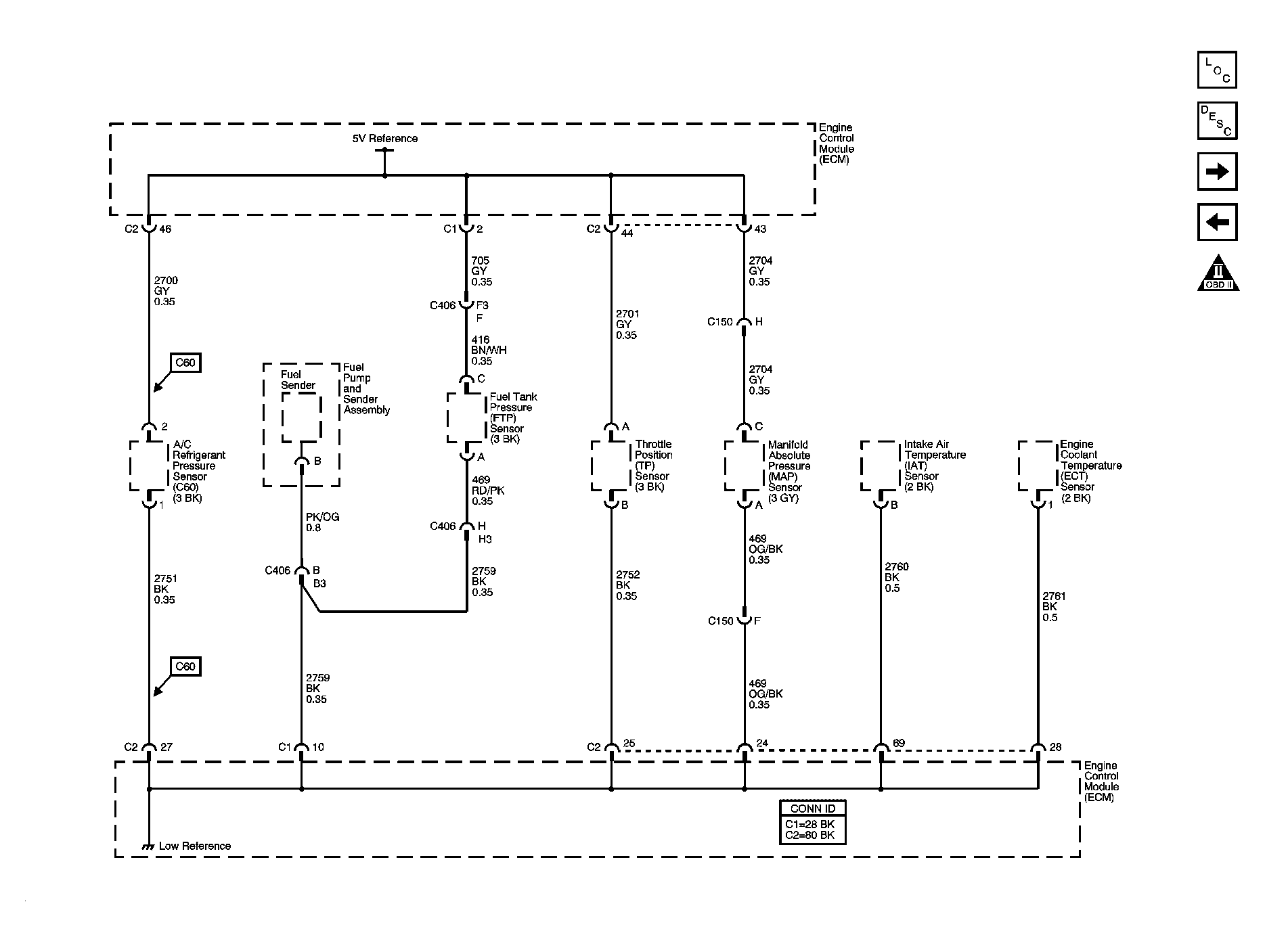

Fig 4: Engine Data Sensors Schematic - HO2S

Courtesy of GENERAL MOTORS CORP.

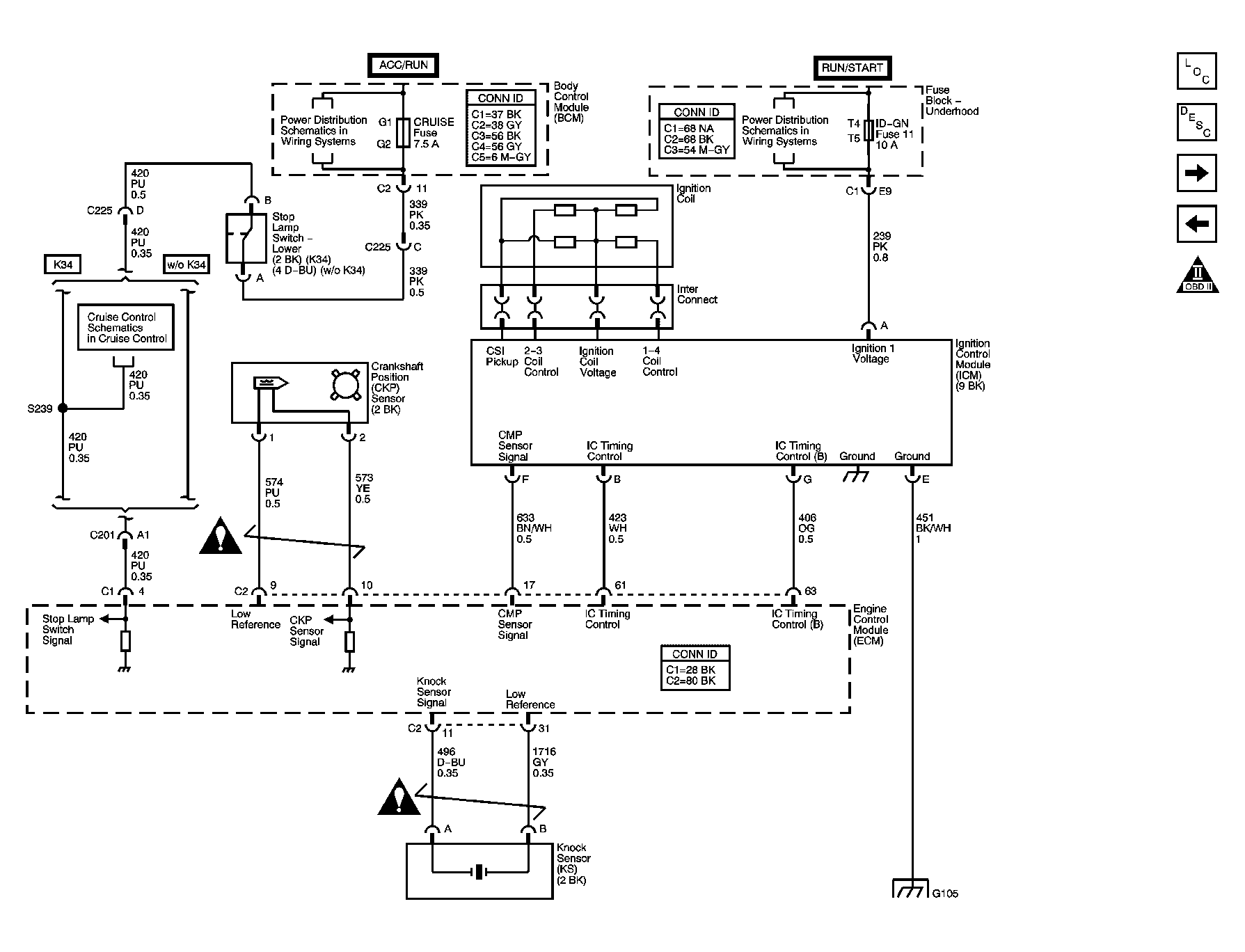

Fig 5: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

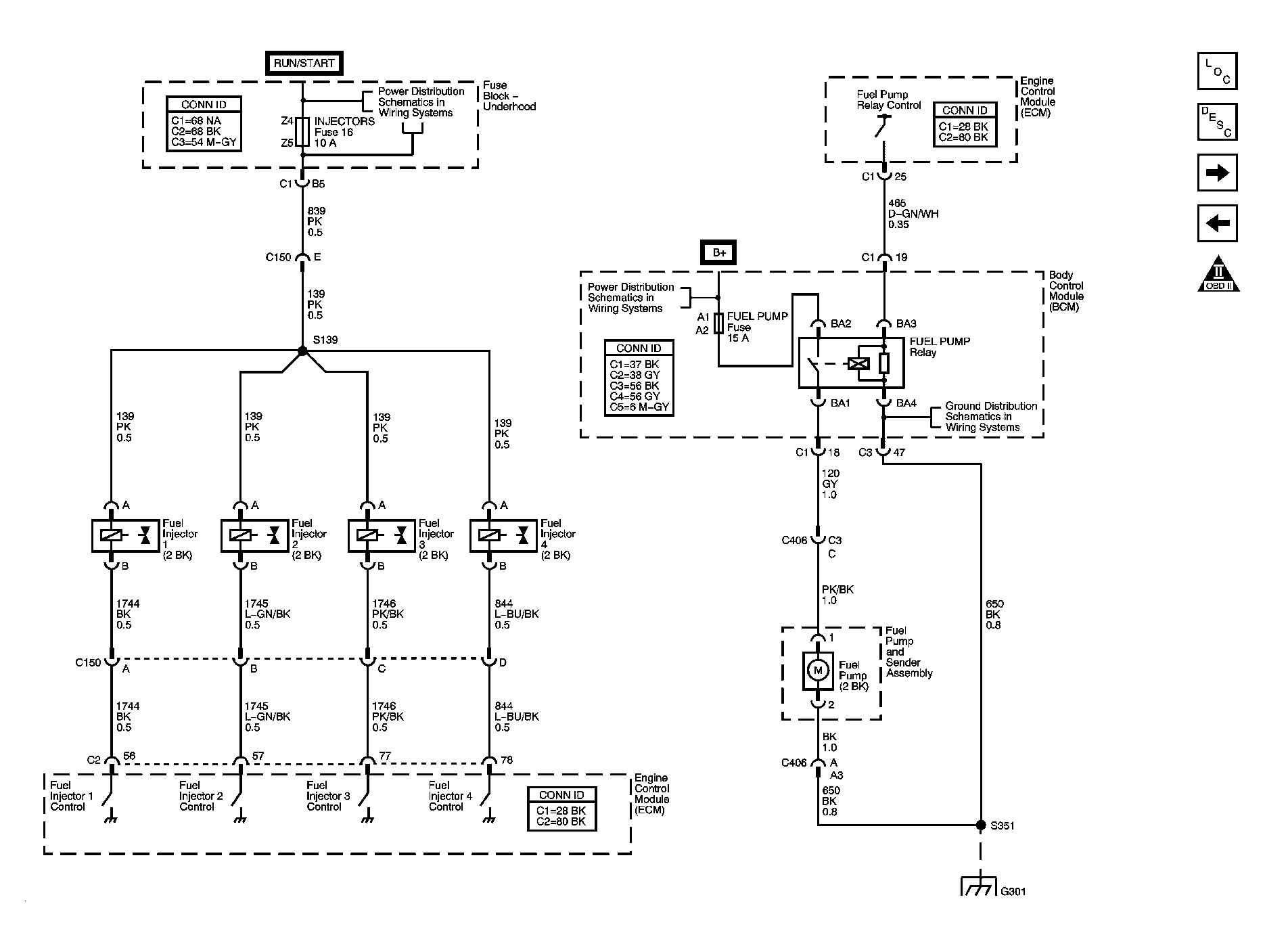

Fig 6: Fuel Delivery Schematic

Courtesy of GENERAL MOTORS CORP.

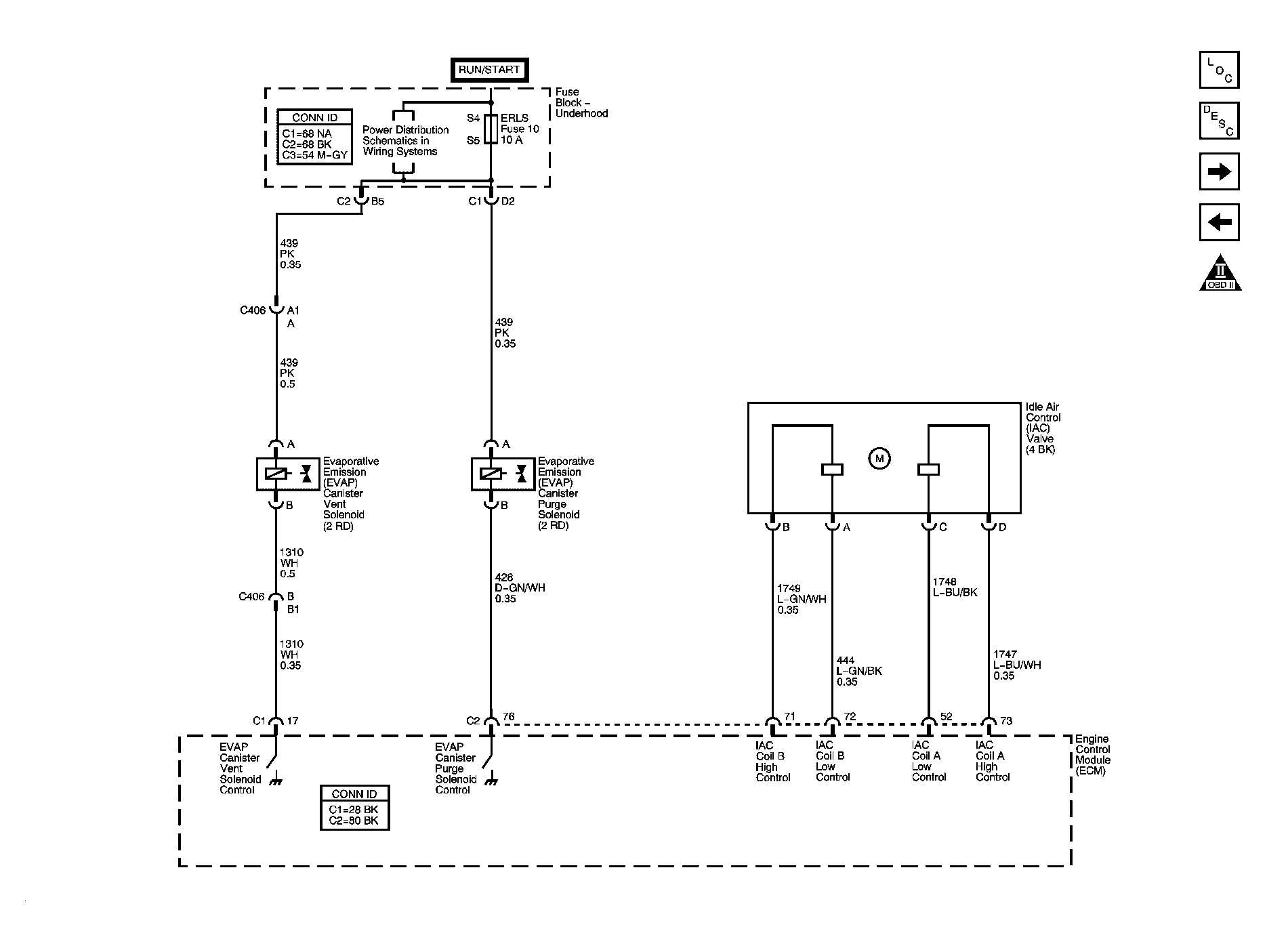

Fig 7: EVAP Controls and IAC Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
