Installation Procedure

  1. Install the shift solenoid assembly from the shift control assembly.
  2. Connect the shift solenoid assembly wiring retainers to the shift control assembly.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the shift solenoid retaining screw.

    Tighten:  Tighten the screw to 3 N.m (27 lb in).

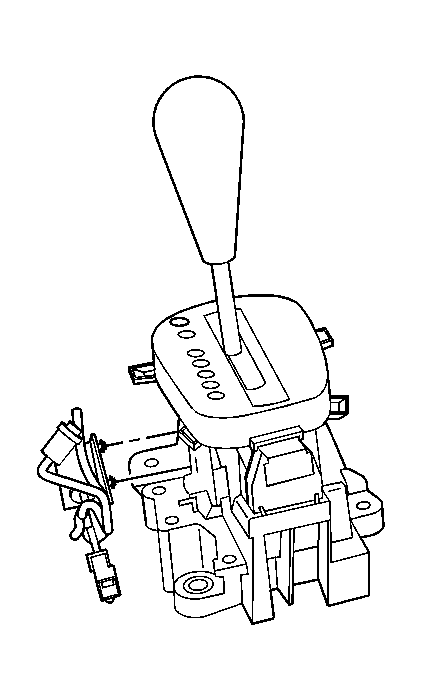

    4. Fig 1: View Of Shift Solenoid Assembly
    GM886304Courtesy of GENERAL MOTORS CORP.
  4. Install the shift indicator bulb from the shift control assembly.
  5. Install the shift control assembly. Refer to Shift Control Replacement in Automatic Transaxle - AF23-5 or Shift Control Replacement in Automatic Transmission - VT25-E.
