Installation Procedure

  1. Install the air outlet resonator to the throttle body.
  2. Connect the fresh air duct to the air outlet resonator.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Tighten the air outlet resonator to throttle body clamp.

    Tighten:  Tighten the clamp to 5 N.m (44 lb in).

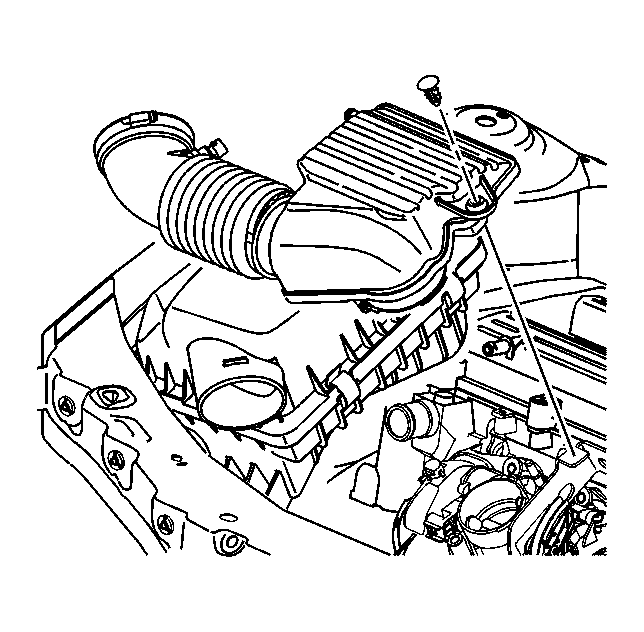

    4. Fig 1: View Of Air Cleaner Outlet Resonator
    GM851256Courtesy of GENERAL MOTORS CORP.
  4. Align the air outlet resonator to the bracket and install the push-pin fastener.
  5. Connect the air cleaner assembly fresh air duct to the air outlet resonator.

    Tighten:  Tighten the clamp to 5 N.m (44 lb in).

    6. Fig 2: View Of IAT Sensor Harness Connector
    GM851290Courtesy of GENERAL MOTORS CORP.
  6. Connect the IAT sensor harness connector.
