Keyless Entry Connector End Views

WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
Decklid Ajar/Release Solenoid (Sedan) Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
A BK 650 Ground
B GY 382 Trunk Release Enable Relay Switch Supply Voltage
C RD/BK 744 Rear Compartment Lid Ajar Switch
Liftgate Switch (Wagon) Connector End View

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
A RD/BK 744 Rear Compartment Lid Ajar Switch
B BK 650 Ground

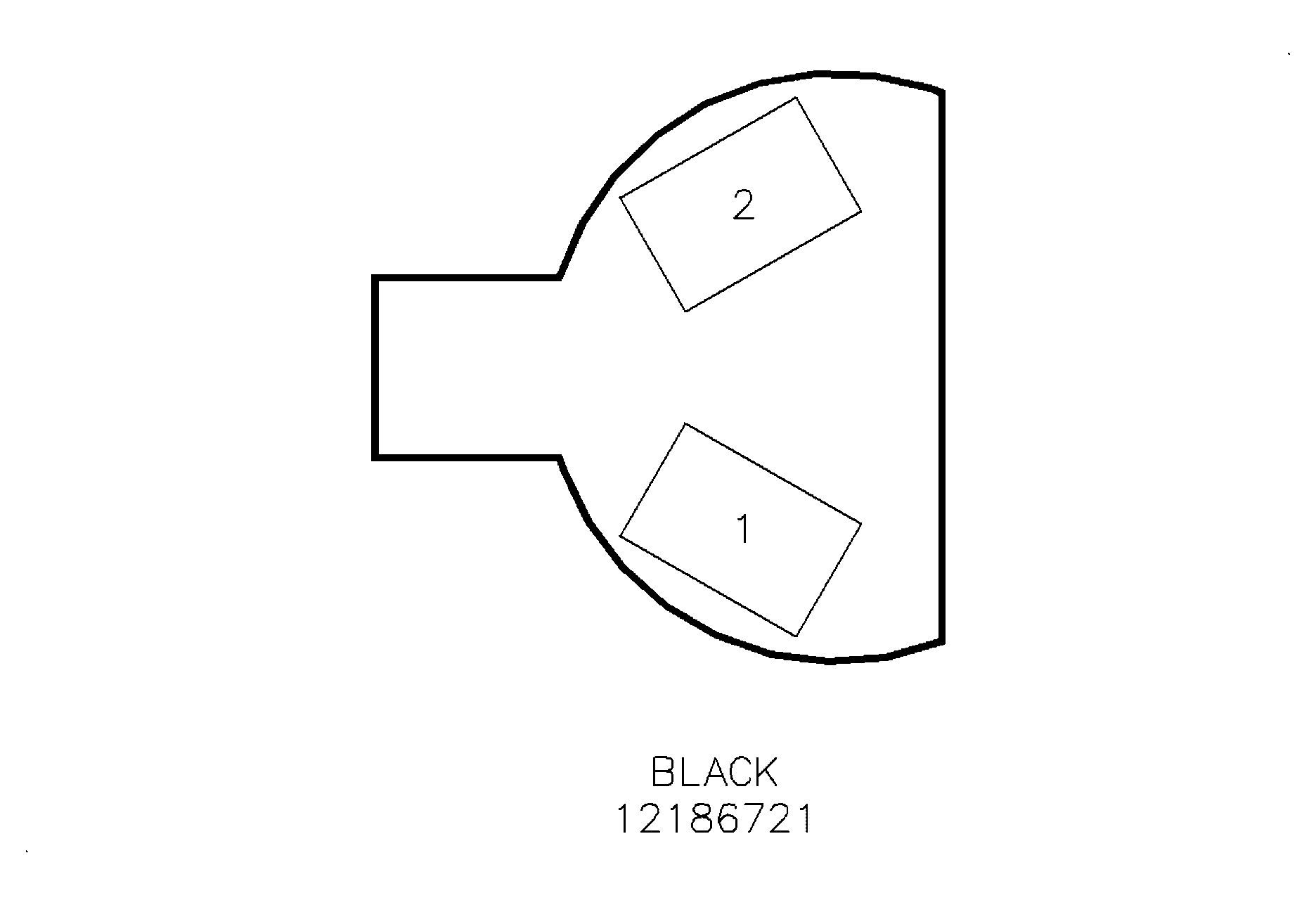

Door Jamb Switch - Driver Connector End View

GM889847Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 - - Not Used
2 GY/BK 745 Left Front Door Ajar Switch Signal
Door Jamb Switch - LR Connector End View

GM889847Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal
Door Jamb Switch - RF Connector End View

GM889847Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal
Door Jamb Switch - RR Connector End View

GM889847Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal

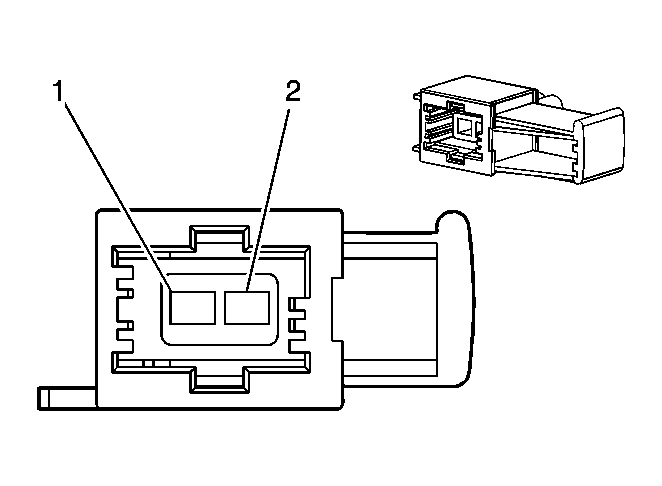

Door Lock Actuator - Driver Connector End View

GM1341513Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354680
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 GY 295 Door Lock Actuator Lock Control
2 TN 694 Driver Door Lock Actuator Unlock Control
Door Lock Actuator - LR Connector End View

GM1341513Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354680
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 GY 295 Door Lock Actuator Lock Control
2 TN 294 Door Lock Actuator Unlock Control
Door Lock Actuator - Front Passenger Connector End View

GM1341513Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354680
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 GY 295 Door Lock Actuator Lock Control
2 TN 294 Door Lock Actuator Unlock Control
Door Lock Actuator - RR Connector End View

GM1341513Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354680
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 GY 295 Door Lock Actuator Lock Control
2 TN 294 Door Lock Actuator Unlock Control

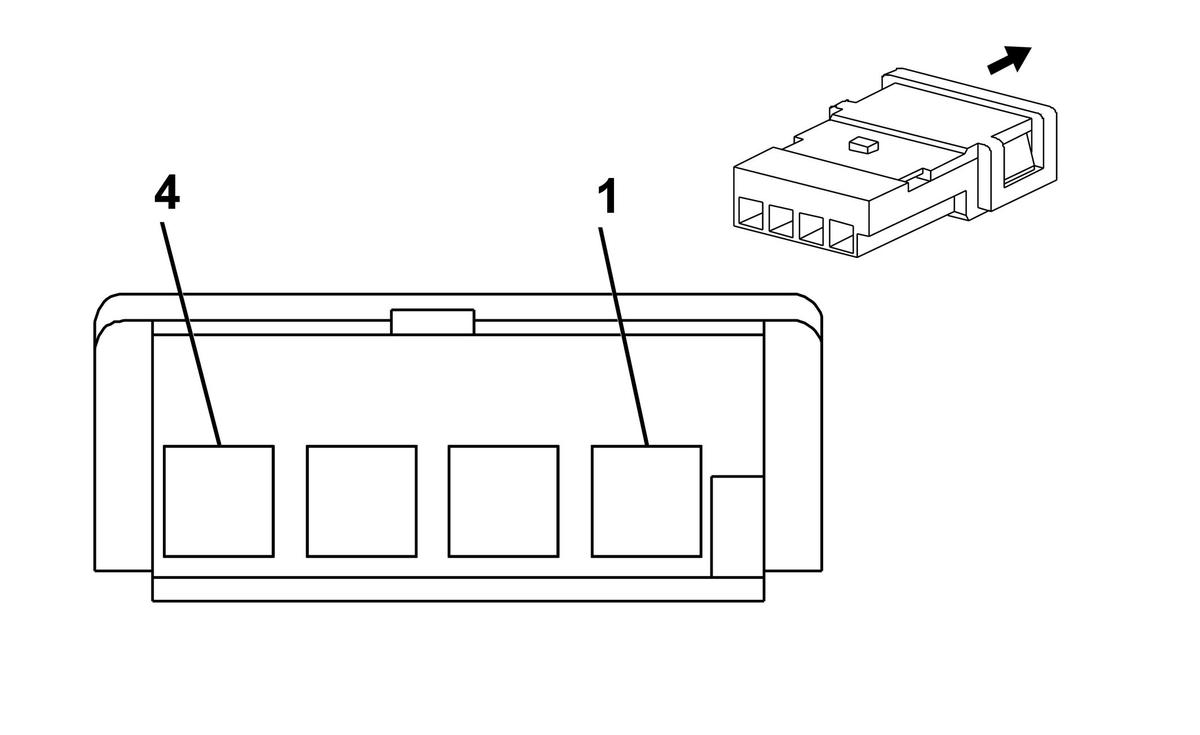

Door Lock Switch Connector End View

GM872587Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15358706
  • 4-Way F (BK)
Pin Wire Color Circuit Number Function
1 RD/BK 780 Driver Door Lock Switch Lock Signal
2 OG/BK 781 Driver Door Lock Switch Unlock Signal
3 OG 340 Battery Positive Voltage
4 - - Not Used
Ignition Lock Cylinder Solenoid Connector End View

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
A L-GN 1601 Steering Column Lock Signal
B PU 1500 Ignition 0 Voltage
