Checkballs Installation

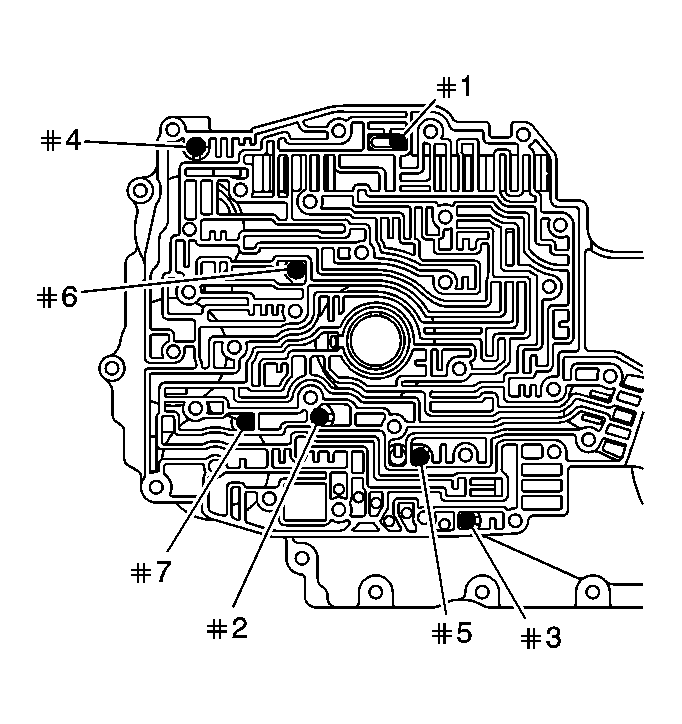

Fig 1: Identifying Channel Plate Checkballs

GM55094

Courtesy of GENERAL MOTORS CORP.

Install the seven checkballs into the proper locations on the channel plate.
