Input Speed Sensor Installation

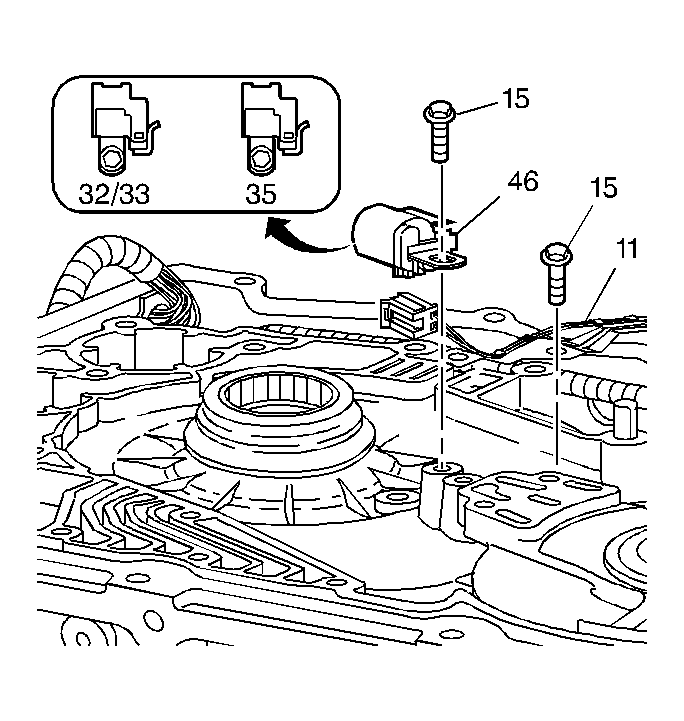

    Fig 1: View Of Input Speed Sensor
    GM55099Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The tab on the sensor housing (46) fits into the recess on the case boss.
    IMPORTANT: For drive sprockets with 35 teeth, use a black sensor housing. For drive sprockets with 32 or 33 teeth, use a natural colored sensor housing.
  1. Assemble the input speed sensor (46) to the transmission case.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the input speed sensor bolt (15). Hand start the bolts.

    Tighten:  Tighten the input speed sensor bolt to 12 N.m (9 lb ft).

  3. Route the input speed sensor wiring harness in the case channel.
  4. Connect the input speed sensor connector to the input speed sensor.
  5. Install the wire harness retainer and wire harness retainer bolt.

    Tighten:  Tighten the wire harness retainer bolt to 12 N.m (9 lb ft).
