Relay FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System
>>
Component Locator
>>
Keyless Entry Component Views
Keyless Entry Component Views

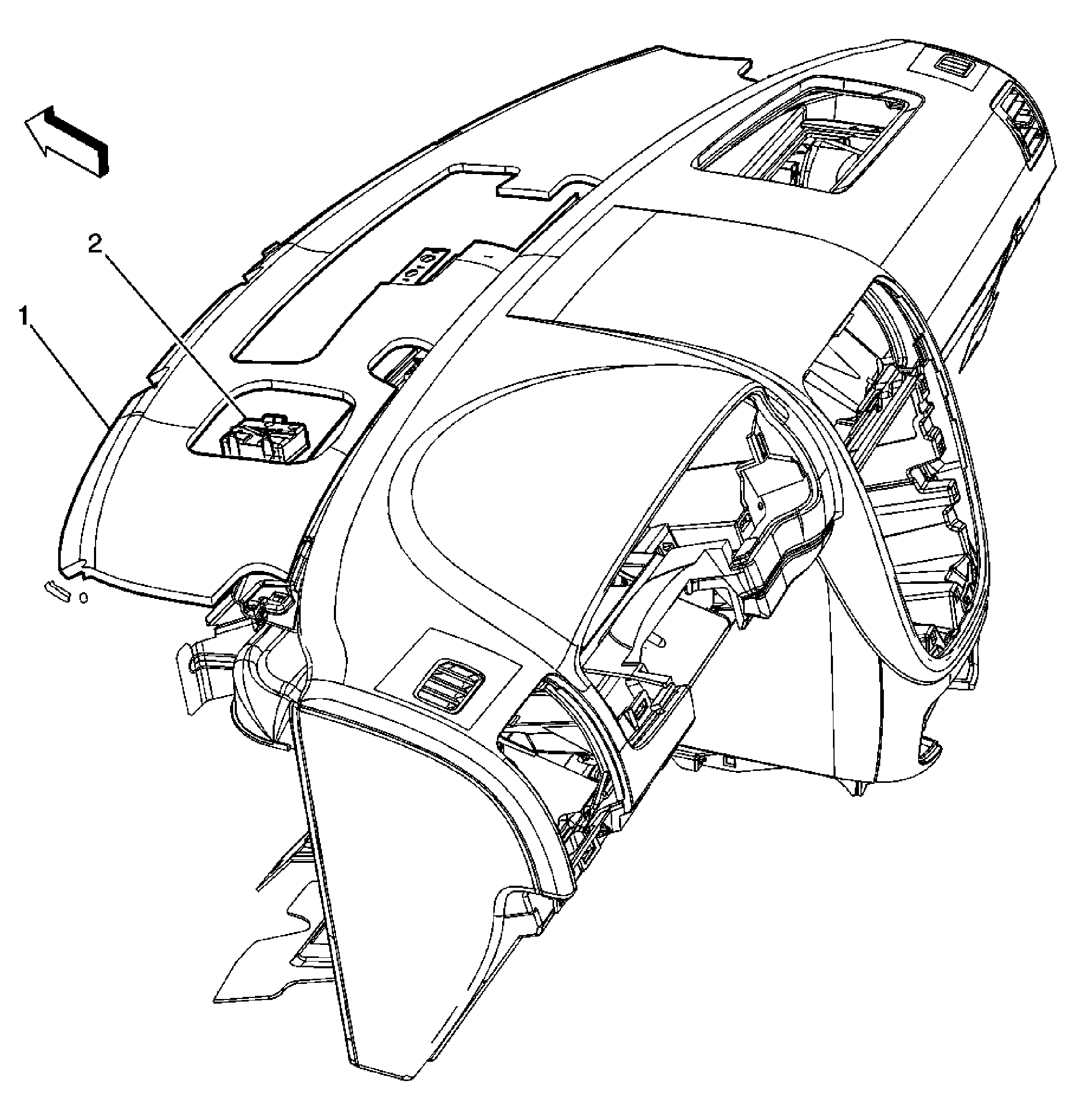

Fig 1: Top View - Left Side Of I/P
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Upper I/P Trim Panel
2
Remote Control Door Lock Receiver (RCDLR)
