Horns Component Views
| Callout | Component Name |
|---|---|
| 1 | Hood Ajar Switch (AP3) |
| 2 | Inflatable Restraint Front End Sensor - Left |
| 3 | Horn - Left |
| 4 | Cooling Fan - Left |
| 5 | Cooling Fan - Right |
| 6 | Ambient Air Temperature Sensor (UH8 or UH9) |
| 7 | Horn - Right |
| 8 | Inflatable Restraint Front End Sensor - Right |
| 9 | Hood Ajar Switch Connector (AP3) |

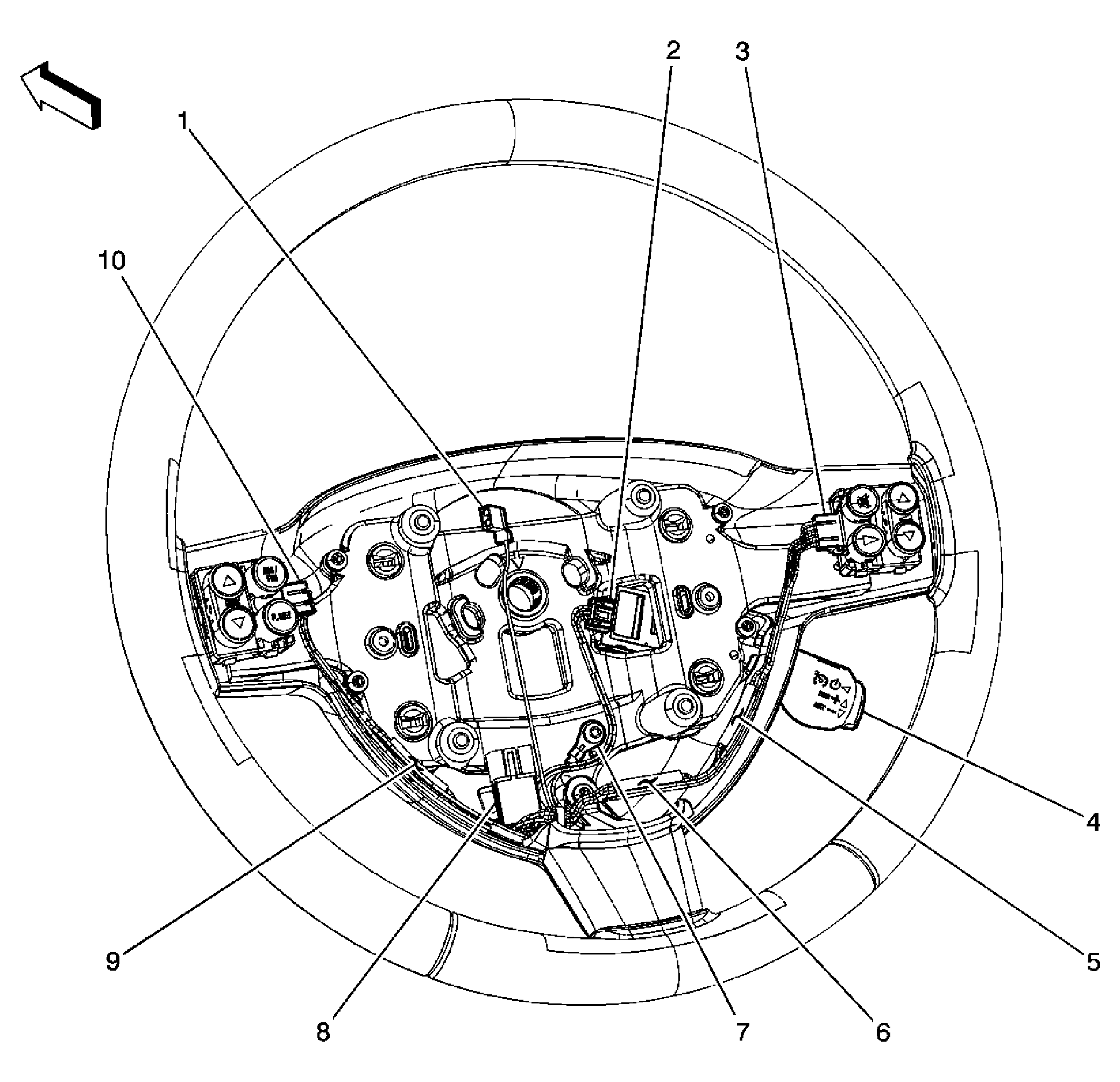

| Callout | Component Name |
|---|---|
| 1 | Horn Switch Connector |
| 2 | Cruise Control Lever Connector (K34) |
| 3 | Steering Wheel Control Switch Assembly - Right (UK3) |
| 4 | Cruise Control Lever (K34) |
| 5 | S293 (UK3) |
| 6 | S297 (UK3) |
| 7 | Steering Wheel Ground |
| 8 | C279 Inflatable Restraint Steering Wheel Module Coil to Steering Wheel Harness |
| 9 | S295 (UK3) |
| 10 | Steering Wheel Control Switch Assembly - Left (UK3) |
