Cellular Communication Component Views
WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

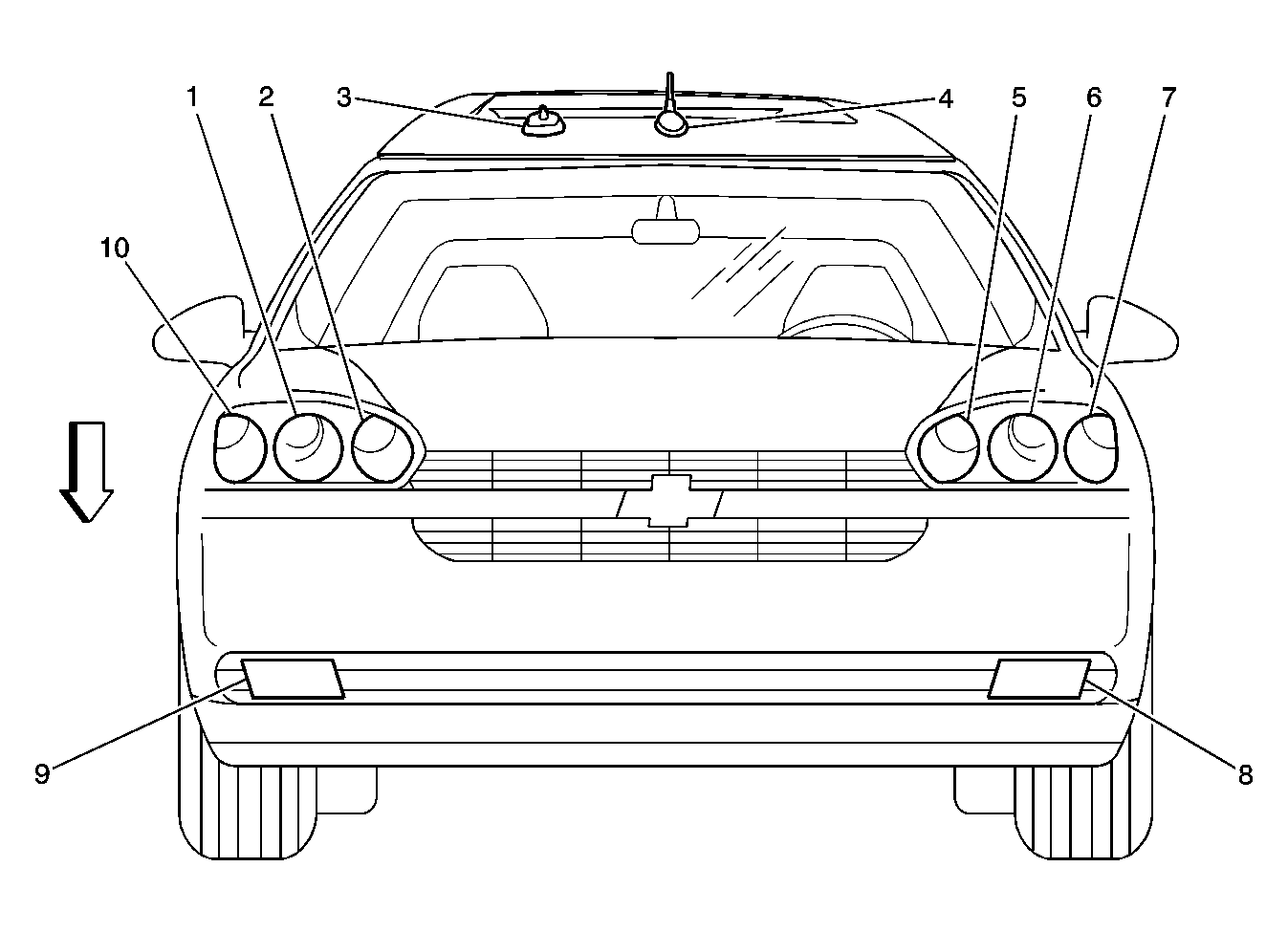

| Callout |
Component Name |
| 1 |
Headlamp - Low Beam - Right |
| 2 |
Headlamp - High Beam - Right |
| 3 |
Digital Radio Antenna (U2K) |
| 4 |
Cellular and Navigation Antenna (UE1) |
| 5 |
Headlamp - High Beam - Left |
| 6 |
Headlamp - Low Beam - Left |
| 7 |
Park/Turn Signal/DRL Lamp - LF |
| 8 |
Fog Lamp - LF (T96) |
| 9 |
Fog Lamp - RF (T96) |
| 10 |
Park/Turn Signal/DRL Lamp - RF |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Courtesy/Reading Lamps - Front, Left Reading |
| 2 |
Cellular Telephone Microphone (UE1) |
| 3 |
Sunroof Switch (CF5) |
| 4 |
Garage Door Opener Transmitter (UG1) |
| 5 |
Courtesy/Reading Lamps - Front, Right Reading |
| 6 |
Dome/Reading Lamp |
| 7 |
Sunroof (CF5) |
| 8 |
Vanity Mirror Lamp - Right |
| 9 |
Inside Rearview Mirror |
| 10 |
OnStar Keypad (UE1) |
| 11 |
Vanity Mirror Lamp - Left |
Courtesy of GENERAL MOTORS CORP.

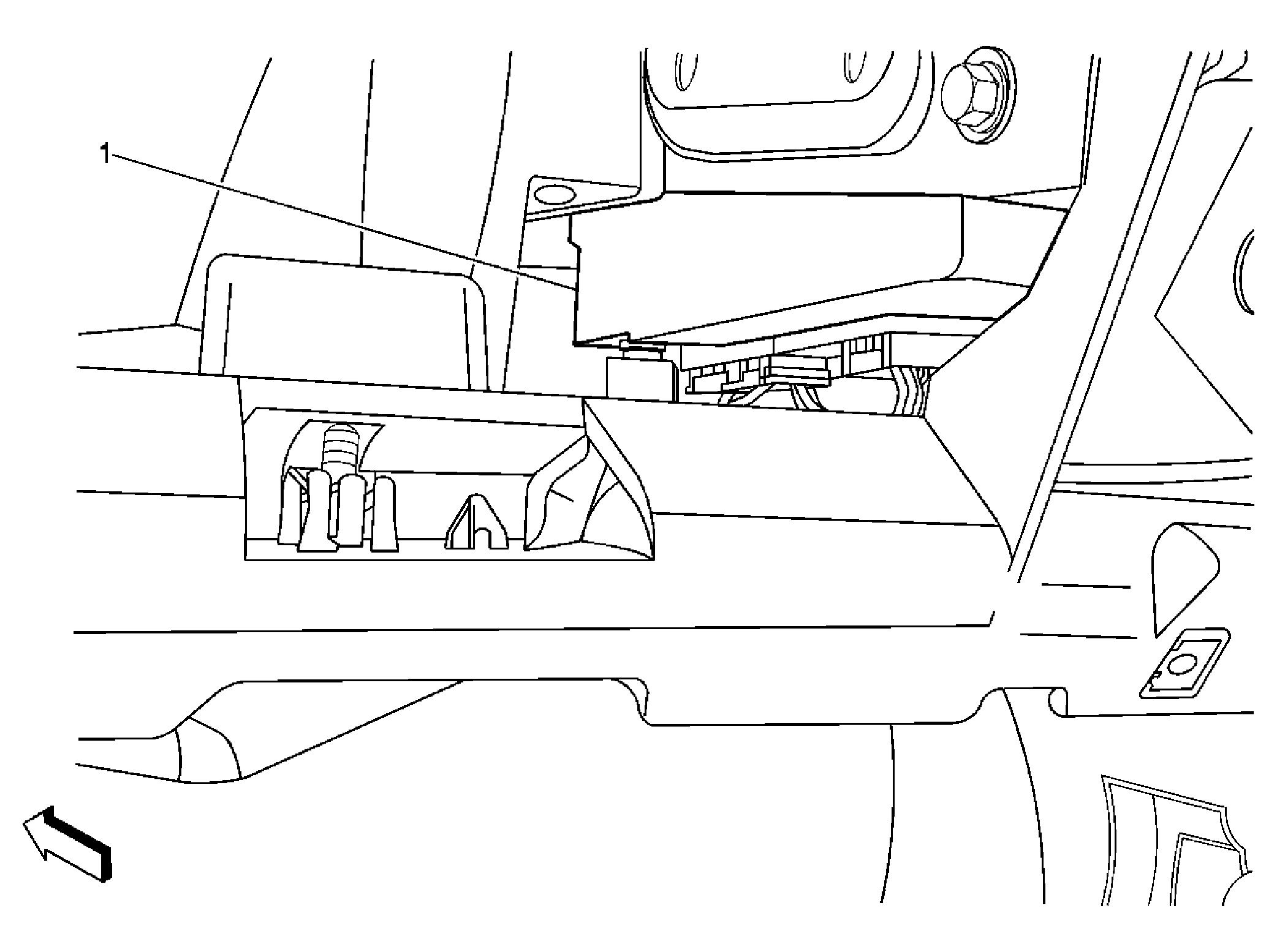

| Callout |
Component Name |
| 1 |
Vehicle Communication Interface Module (VCIM)(UE1) |
