Object Detection Component Views
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

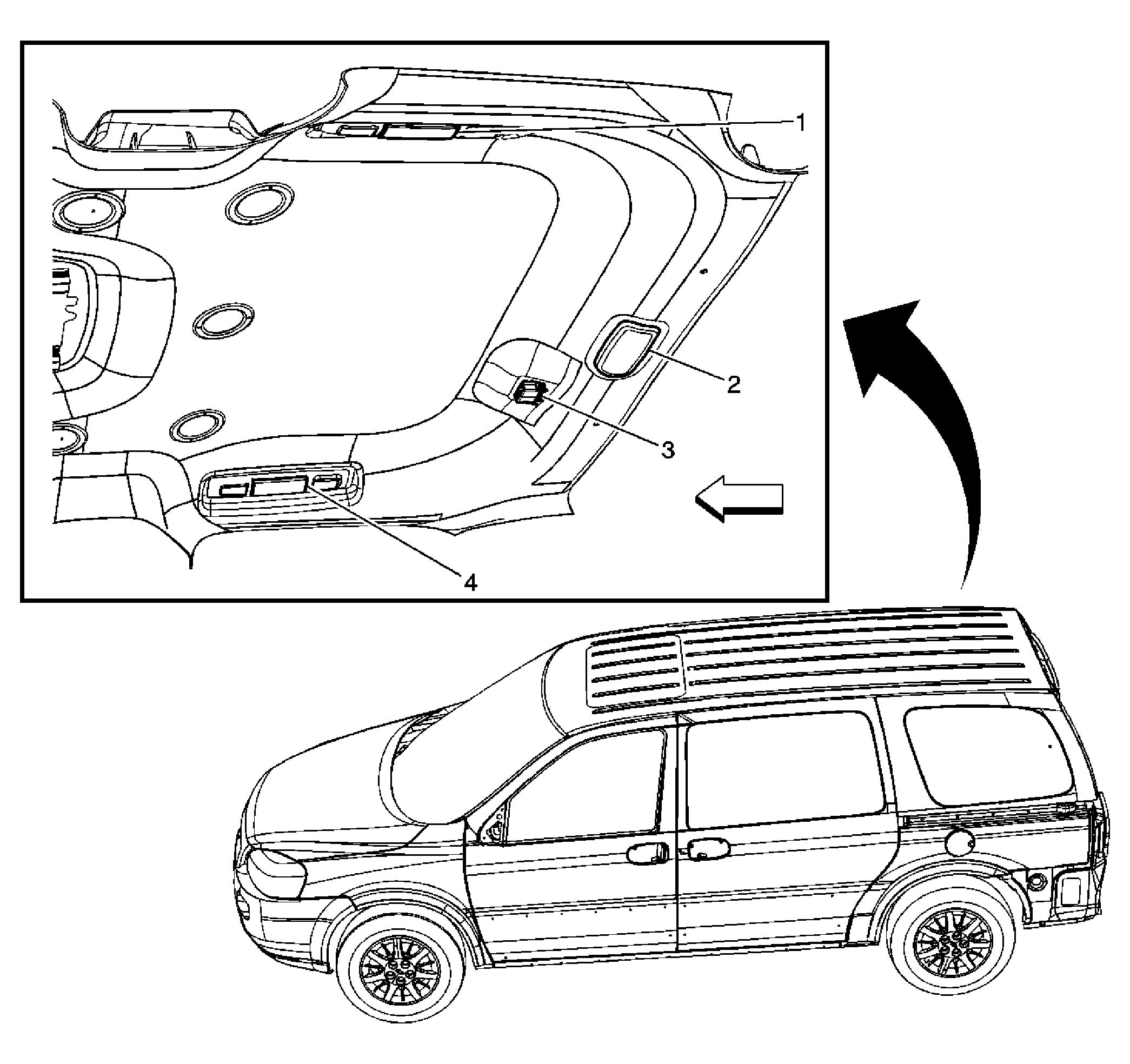

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Roof Rail Reading Lamp - Left |
| 2 |
Cargo Lamp |
| 3 |
Rear Parking Assist (RPA) Display (UD7) |
| 4 |
Roof Rail Reading Lamp - Right |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Speaker - Rear Tweeter - Right |
| 2 |
Accessory AC/DC Power Control Module (KC7) |
| 3 |
C420 Rear Parking Assist Display Jumper Harness to Body Harness (UD7) |
| 4 |
Rear Quarter Window Actuator - Right (A20) |
| 5 |
C402 and C400 Liftgate Harness to Body Harness |
| 6 |
Rear Parking Assist (RPA) Display (UD7) |
| 7 |
G400 |
| 8 |
Auxiliary Power Outlet - 115VAC (KC7) |
| 9 |
Sliding Door Jamb Switch - Right |
| 10 |
Rear Object Sensor Control Module (UD7) |
| 11 |
Rear Parking Assist (RPA) Diagnostic Connector (UD7) |

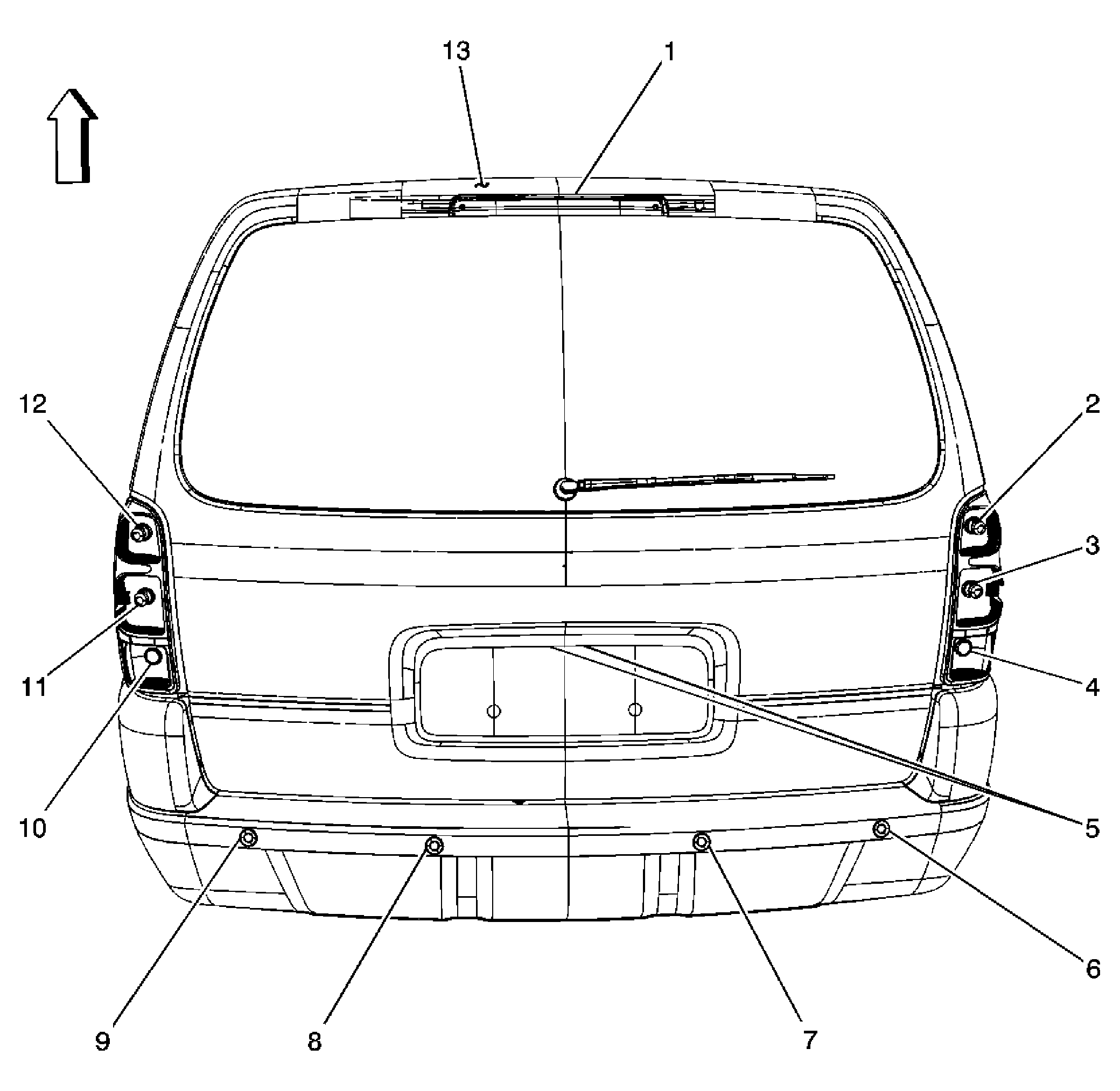

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Center High Mounted Stop Lamp (CHMSL) |
| 2 |
Tail Lamp - Right |
| 3 |
Tail/Stop and Turn Signal Lamp - Right |
| 4 |
Backup Lamp - Right |
| 5 |
License Lamps |
| 6 |
Object Sensor - RR Corner (UD7) |
| 7 |
Object Sensor - RR Middle (UD7) |
| 8 |
Object Sensor - LR Middle (UD7) |
| 9 |
Object Sensor - LR Corner (UD7) |
| 10 |
Backup Lamp - Left |
| 11 |
Tail/Stop and Turn Signal Lamp - Left |
| 12 |
Tail Lamp - Left |
| 13 |
CHMSL Resistor (R900) |
